Fabric/Neck Stretch Tester

Fabric-Neck Stretch Tester
Brand: QMAX
Model: SP23

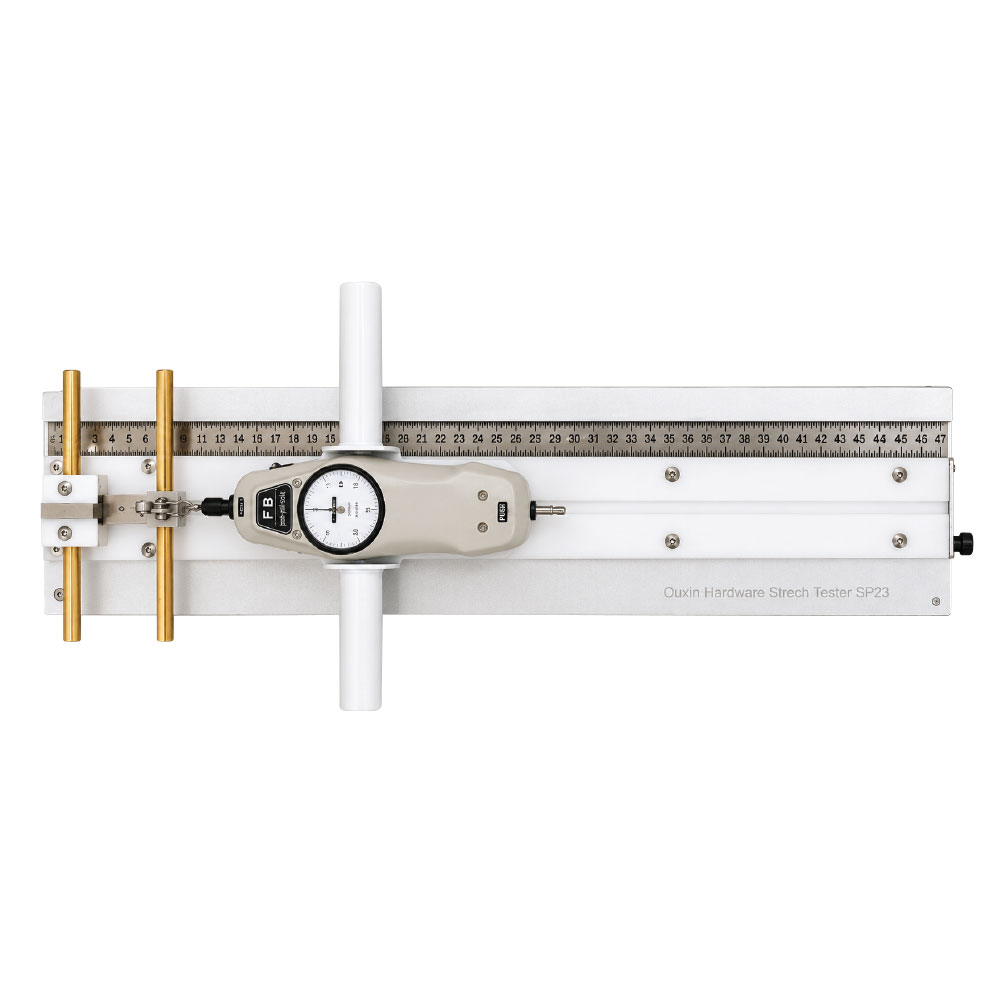

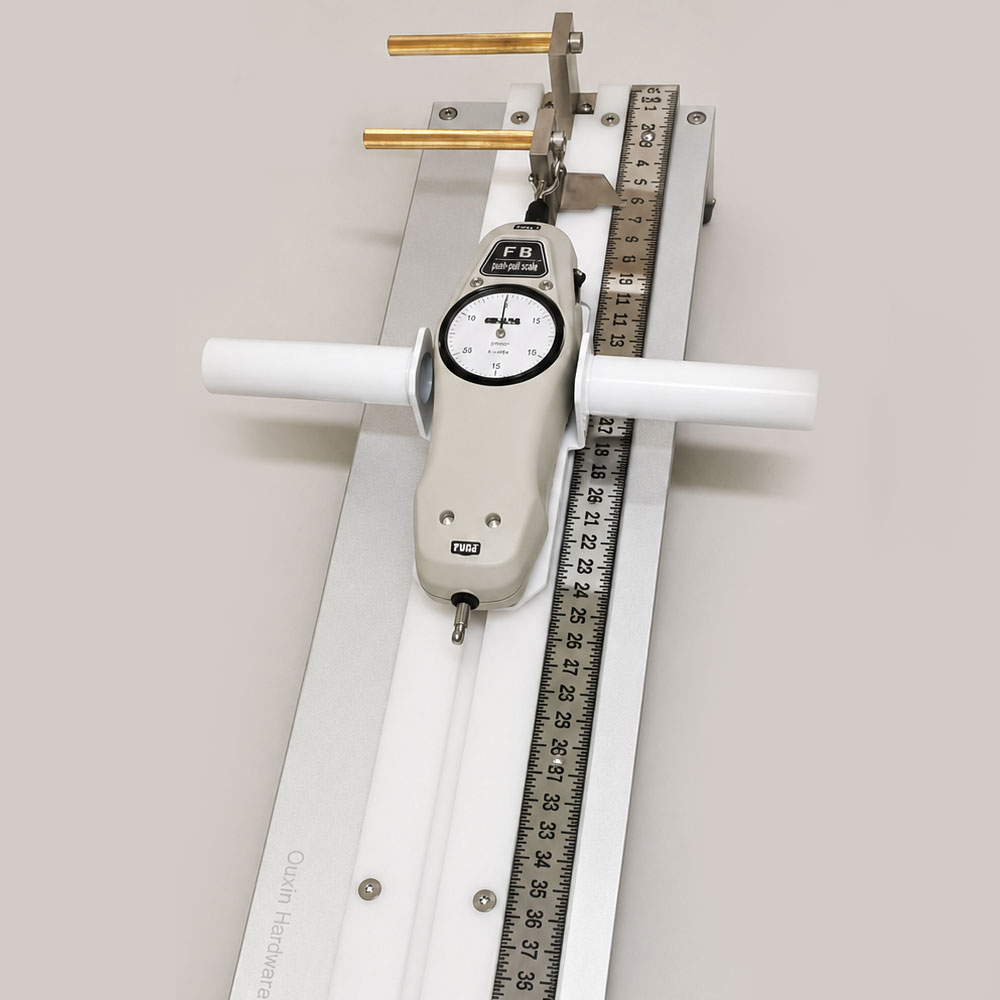

QMAX Fabric Stretch Tester SP23 also known as “Neck Stretch Tester”

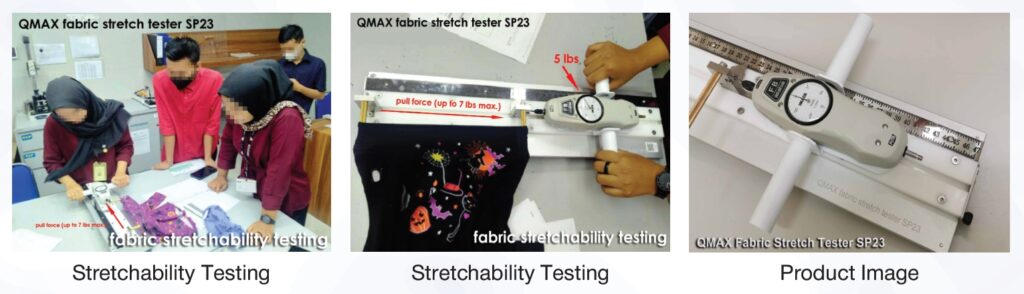

To measure the tension for neck (collar), waistband or stretchable fabrics found in brassiere (bra), underwear, swimwear, trousers, etc.

Suggested standard of pull force should be less than 7 lbs to achieve the precribed width.  If more than 7 lbs pull force is applied in order to achieve the prescribed width, then it fails the requirement because the elastic band or the fabric material is too stiff or the material stretchability is insufficient

Features

• Compliant with ZB W60 001 – 89 Standard
• Equipped with IMADA (Japan) Push-Pull Force Gauge FB-30LB (range: 0-30 lbs / resolution: 0.25 lbs)
• Suggested maximum pull force: 7 lbs
• Product size: 16 x 63 cm / Weight: 4.8 kg
• Package size: 66 x 22 x 19 cm / Weight: 6.5 kg
• S. Code: 9024 8000
