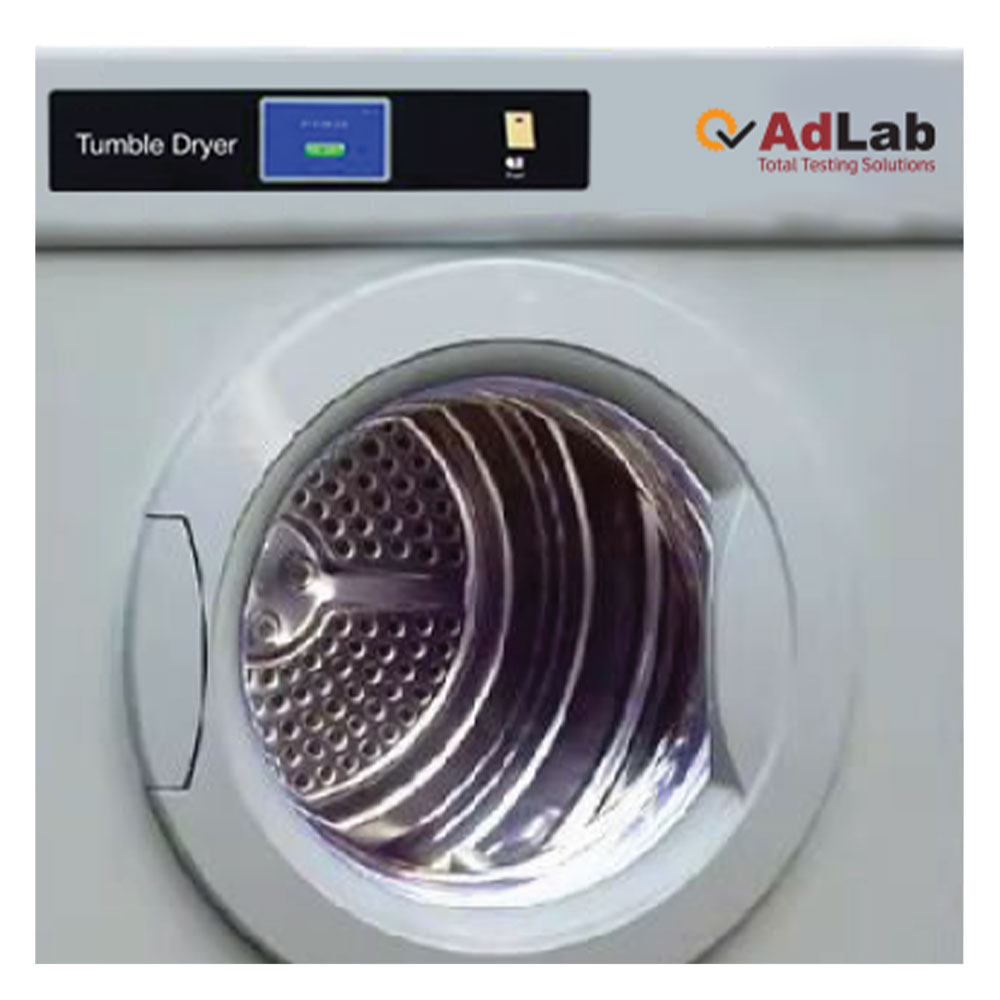

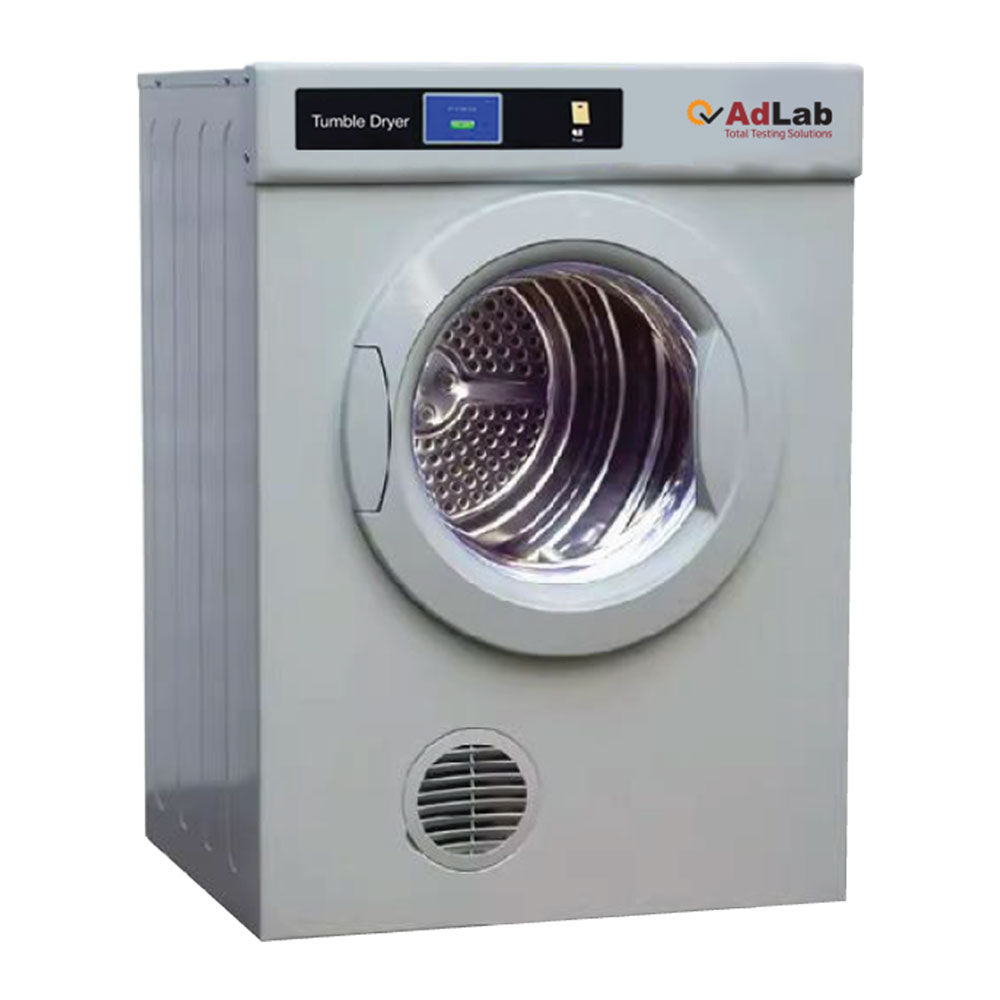

Laboratory Dryer Machine

Introduction

Used for drying various types of textiles after shrinkage test.

ADL-7TD Textile – Domestic washing and drying procedures for textile testing Related clauses:

ANNEX F Type A1 tumble dryer – vented type;

ANNEX O Determination of drying time of tumble dryer with timing device

AATCC 135,

EN ISO 6330,

M&S, NEXT,

George,

Adidas

Category: front door feeding, horizontal drum type;

Number of lifting plates:3 pieces;

Drum diameter: 580mm±10mm;

Drum speed: 50r/min;

Controlled outlet temperature: high temperature 65±5℃, low temperature less than 60℃;

Exhaust Temperature: Maximum 80℃

Rated voltage Frequency: 220V. 50Hz;

Rated input power: 1850W;

Maximum current: 10A;

Rated capacity: 6Kg for cotton clothing, 3Kg for chemical fiber clothing;

Dimensions (width × depth × height): 600mm × 560mm × 830mm;

Waterproof grade: IP×4;

Fully own creatable/editable dryer programs like IEC 60456, ISO 6330, M&S and other reputed retail brands.

Items	Details	Type A1
Drying system		Vented
Humidity control		Timer
Humidity control		Automatic
Drum	Volume	80 \| to 130 \|
	Diameter	550 mm to 590 mm
	Peripheral centrifugal acceleration	0, 6 g to 0, 95 g
Lifting vanes	Number	2 or 3
	Height	50 mm to 90 mm
	Spacing	Evenly distributed
Heating input		Max. 3, 5 kW
Drying rate	100% Cotton	Min. 25 ml/min
Drying rate	Cotton/Polyester	min. 20 ml/min
Control exhaust temperature	Normal Temperature	Max. 80°C
Control exhaust temperature	Lower Temperature	Max. 60°C
Cool-down period		Min. 5 min or lower 50°C
