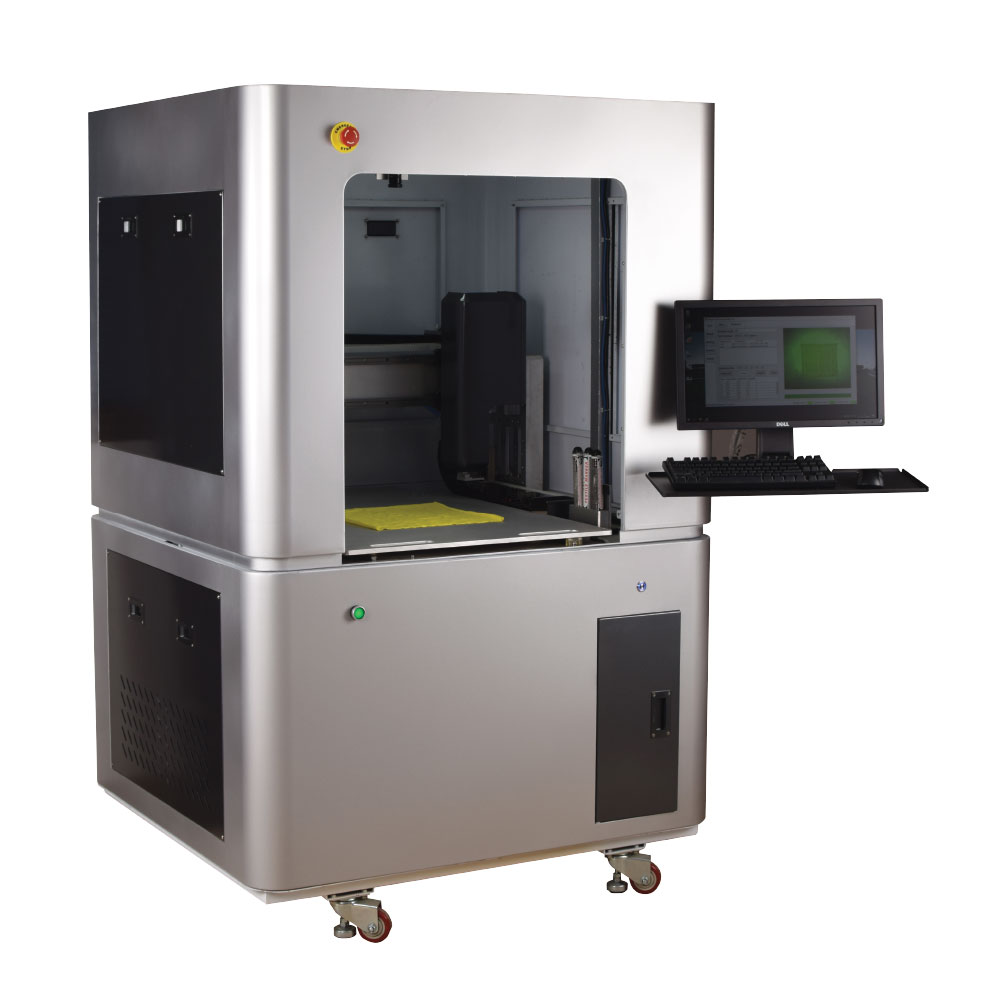

Automatic Dimensional Stability Maker

610×610 mm specimen size.
1 mm marking/camera resolution.
Automatic pen rotation.
PC software with standards.

The Automatic Dimensional Stability Maker automates fabric marking and stability testing up to 610×610 mm, with 1 mm resolution and PC control.

Description

Introduction

The Automatic Dimensional Stability Maker is an industry-first solution for determining fabric dimension changes after washing, steaming, or hot pressing, featuring automated marking and measurement. With a 610×610 mm specimen size and PC-controlled precision, it sets a new standard for textile testing.

Applications

Textile Fabrics.

Key Features

Automated Marking: The Automatic Dimensional Stability Maker uses a rotating marking pen to create durable points, adhering to selected standards via PC software.
Precise Measurement: Equipped with a 1 mm resolution camera to measure distances up to 500×500 mm and calculate dimensional changes.
Smart Technology: Features automatic pen changing and digital image analysis for accurate skewness and twist calculations.
Comprehensive Software: Includes pre-loaded standards like AATCC and ISO for seamless operation and compliance.

Technical Specifications

Function: Measures and marks fabric dimension changes
Camera: Precision digital, 1 mm resolution
Marking Device: Automatic, 1 mm resolution, rotating pen
Max Marking Range: 500 x 500 mm
Max Specimen Size: 610 x 610 mm
Features: Automatic dimension and skewness calculation
Software: Smart PC with pre-loaded standards (AATCC, ISO, etc.)
Power: AC230V, 50Hz/60Hz
Dimensions: 1100 x 900 x 1500 mm (L x W x H)
Weight: Approx. 340 kg

Why Choose the Automatic Dimensional Stability Maker?

The Dimensional Stability Maker revolutionizes fabric testing with its automated marking and precise measurements. Its robust design and compliance with industry standards make it a top choice for textile professionals seeking accuracy and efficiency.
