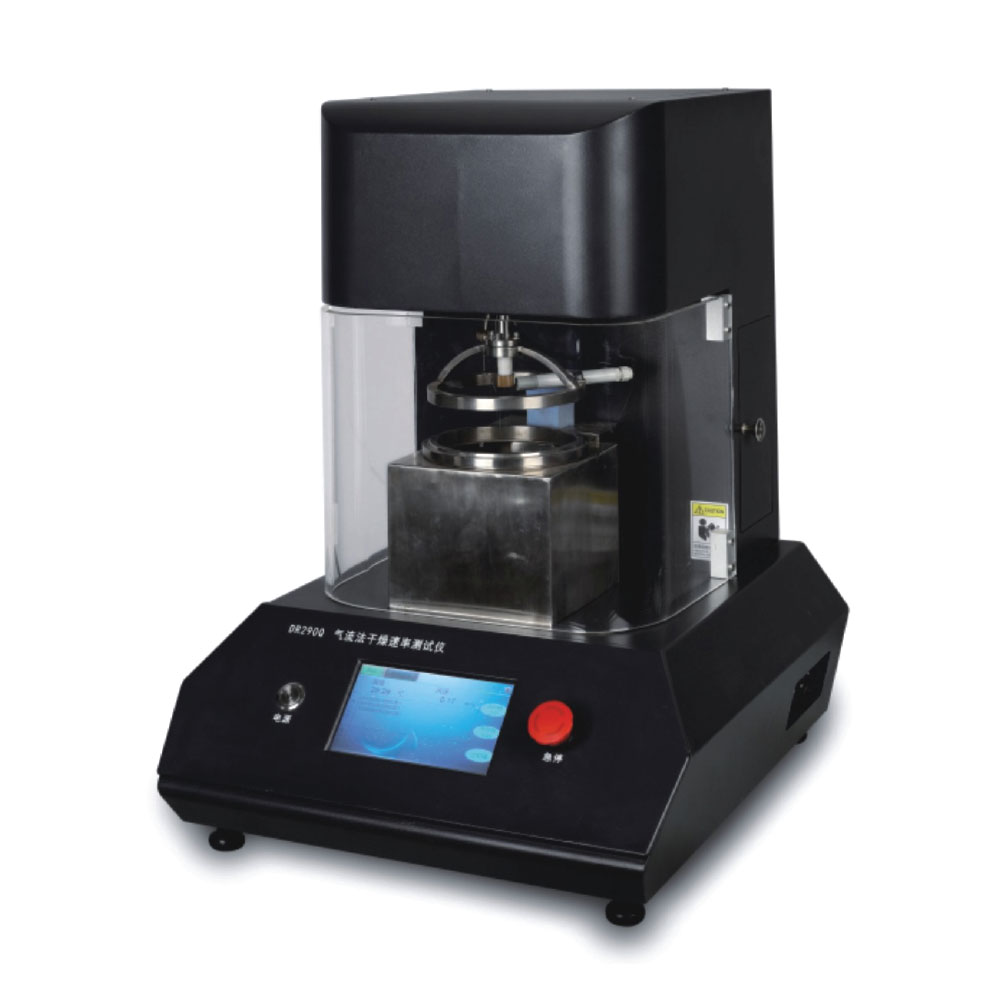

Textile Drying Rate Tester
The Textile Drying Rate Tester measures fabric water absorption, drying time, and drying rate. It features automatic operation, adjustable wind speed, and a 7-inch touch screen. Data displays as curves and charts, easily saved or printed via USB. Ideal for performance and functional textiles.
- Automatic measurement of water absorption and drying rate
- Adjustable wind speed for precise testing
- Data export via USB
Scope
Textile Drying Rate Tester used for testing maximum water absorption, drying time and drying rate of functional moisture absorption and quick drying fabrics (applicable to all fabrics, knitted, woven and nonwoven fabrics, except socks).
Relevant standards
AATCC200 standard
Instrument characteristics:
- High-precision wind speed sensor, infrared temperature sensor, and standard temperature sensor for accurate measurement.
- Precision water drop device and water drop detection system for consistent testing.

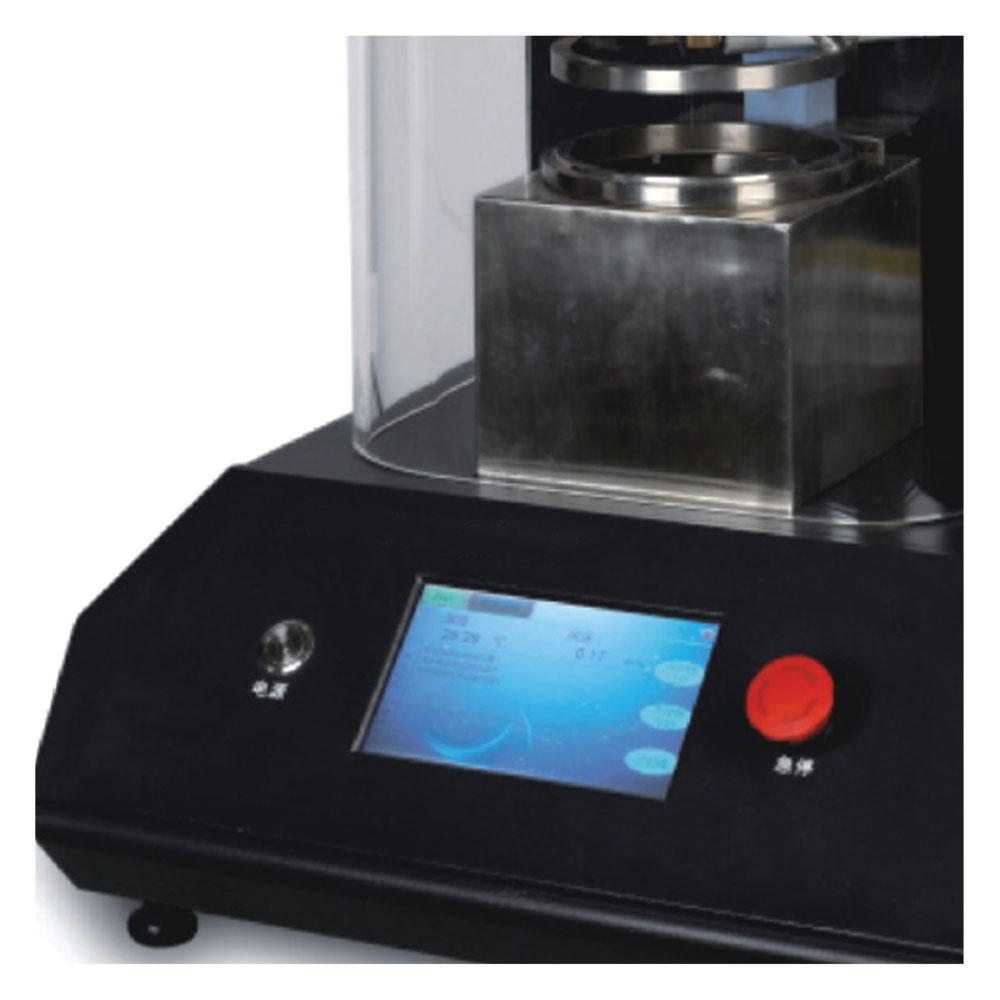

- 7-inch color touch screen with Chinese and English menu for intuitive operation.
- Automatic testing of fabric maximum water absorption, drying time, and drying rate via computer software.
- Data displayed as curves and charts, easy to analyze and print.
- Fully automatic operation with safety protection, reducing human errors.
- Adjustable wind speed and water drop volume.
- Entire experiment runs automatically, avoiding manual operation errors.
Technical parameters
- Bellows specifications: 165×165×275 mm ±1 mm
- Bellows outlet diameter: 130 ±1 mm
- Wind speed: 1.5–3.5 m/s ±0.2 m/s
- Infrared temperature range: 15–50°C ±0.1°C
- Dripping accuracy: 0.05–4.5 ml ±0.0025 ml
- Data transmission: USB
- Test interface: Curves and charts coexist
- Test report: Automatically saved, easy to print
- Power supply: AC 220V ±10%, 50Hz
- Overall size: 500(L) × 550(W) × 700(H) mm
- Weight: ~40 kg
Why Choose the Textile Drying Rate Tester?
The Textile Drying Rate Tester is essential for textile manufacturers and labs assessing fabric drying performance. Since drying rate and water absorption affect comfort and functionality, this tester measures these properties per AATCC 200, using a 165 x 165 mm bellows with adjustable wind speeds. For example, it evaluates quick-drying fabrics with infrared precision (±0.1°C), ensuring quality in sportswear and performance textiles. Its automated operation and USB data export streamline workflows, while the 40 kg design provides stability. Consequently, users can optimize fabric development and meet industry standards. For more details or to request a demo, contact our team today.
