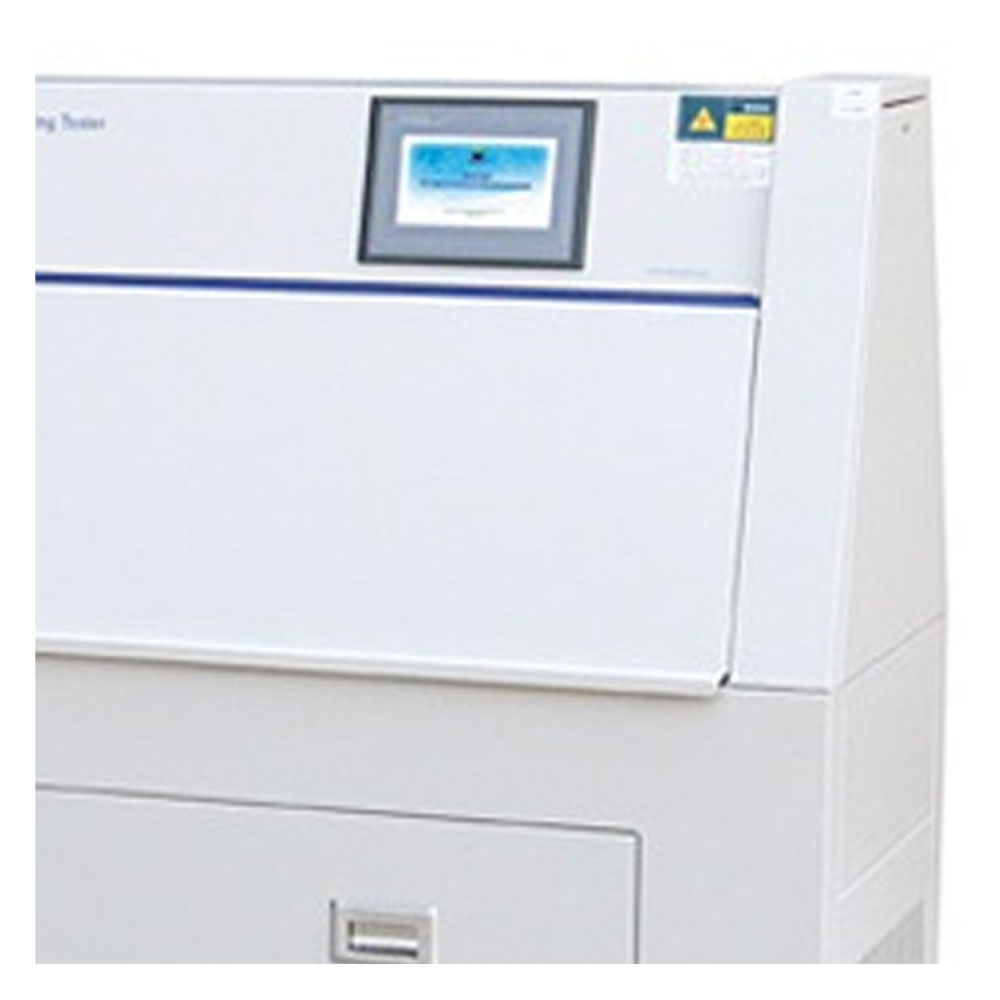

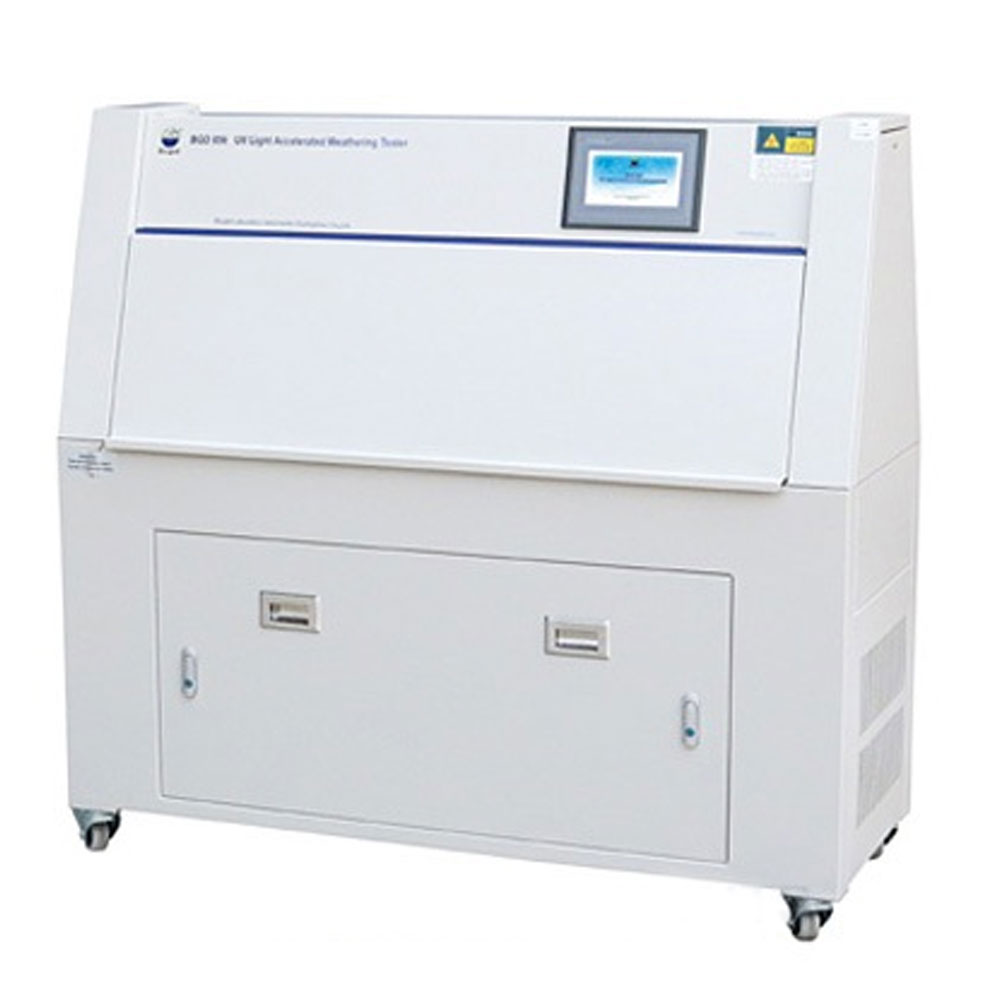

UV Light Accelerated Aging Test Chamber

The UV Light Accelerated Aging Test Chamber is a versatile device designed to simulate outdoor weathering conditions using ultraviolet light, helping manufacturers evaluate material durability against UV exposure, temperature, and humidity. This UV Light Accelerated Aging Test Chamber is ideal for testing plastics, coatings, textiles, and automotive materials, accelerating aging processes to predict long-term performance. With customizable irradiance and temperature controls, it ensures reliable results for quality assurance.

Standard

ISO 16474-1, ISO 16474-3, ISO 11507, ISO 4892-1, ISO 4892-3, ASTM D 4587, ASTM D 4329, ASTM G-151, ASTM G-154, BS 2782:Part5, SAE J2020, JIS D 0205

Features

• Supports basic ultraviolet light testing without irradiance control, using 8 x 40W UV-A (340 nm) or UV-B (313 nm) lamps with a 6,000-hour lifespan.
• Offers irradiance range of 0.3 W/m² to 1.55 W/m² for customized exposure conditions.
• Provides black panel temperature (BPT) control from RT + 10°C to 80°C for precise thermal cycling.
• Constructed with a stainless steel (SUS 304) interior and powder-coated SUS 304 exterior for durability.
• Accommodates 48 standard specimens (75 mm x 150 mm) or 15 larger ones (100 mm x 300 mm), with adjustable water supply (0-4 LPM) for spray or condensation tests

Technical Specifications

• Model Type: Basic Ultraviolet Light Accelerated Weathering Cabinet (No irradiance control)
• Light Source: UV-A (340 nm) or UV-B (313 nm); 40W x 8 pcs (6,000-hour lifespan)
• Irradiance Range: 0.3 W/m² ~ 1.55 W/m²
• Temperature Range: Black Panel temperature (BPT): RT + 10°C ~ 80°C
• Interior: Stainless steel – SUS 304
• Exterior: Powder coating on SUS 304
• Insolating Area: 5,175 cm² / 828 in²
• Sample Capacity: 48 pieces (75 mm x 150 mm) or 15 pieces (100 mm x 300 mm)
• Water Supply Range: 0-4 LPM
• Water Consumption: 7 L/day (condensation), 3 L/minute (spray)
• Overall Size: 1,360 mm x 560 mm x 1,290 mm (L x W x H)
• Net Weight: 161 kg
• Total Max. Power: 2 kW
• Power Supply: 220 VAC ± 10% / 50 Hz (60 Hz custom); 10 A (Max Electric Current)

Why Choose the UV Light Accelerated Aging Test Chamber?

The UV Light Accelerated Aging Test Chamber is vital for manufacturers and labs simulating UV exposure to predict material longevity. Since UV degradation affects plastics and coatings, this chamber replicates outdoor conditions per ISO 16474-3 and ASTM G-151, using 8 UV lamps for irradiance up to 1.55 W/m². For example, it tests automotive interiors and textiles, ensuring fade resistance at temperatures up to 80°C. Its SUS 304 construction and water consumption efficiency (7 L/day) enhance durability and sustainability, while the 161 kg design offers stability. Compliant with SAE J2020 and JIS D 0205, it meets diverse standards. For more details or to request a demo, contact our team today.
