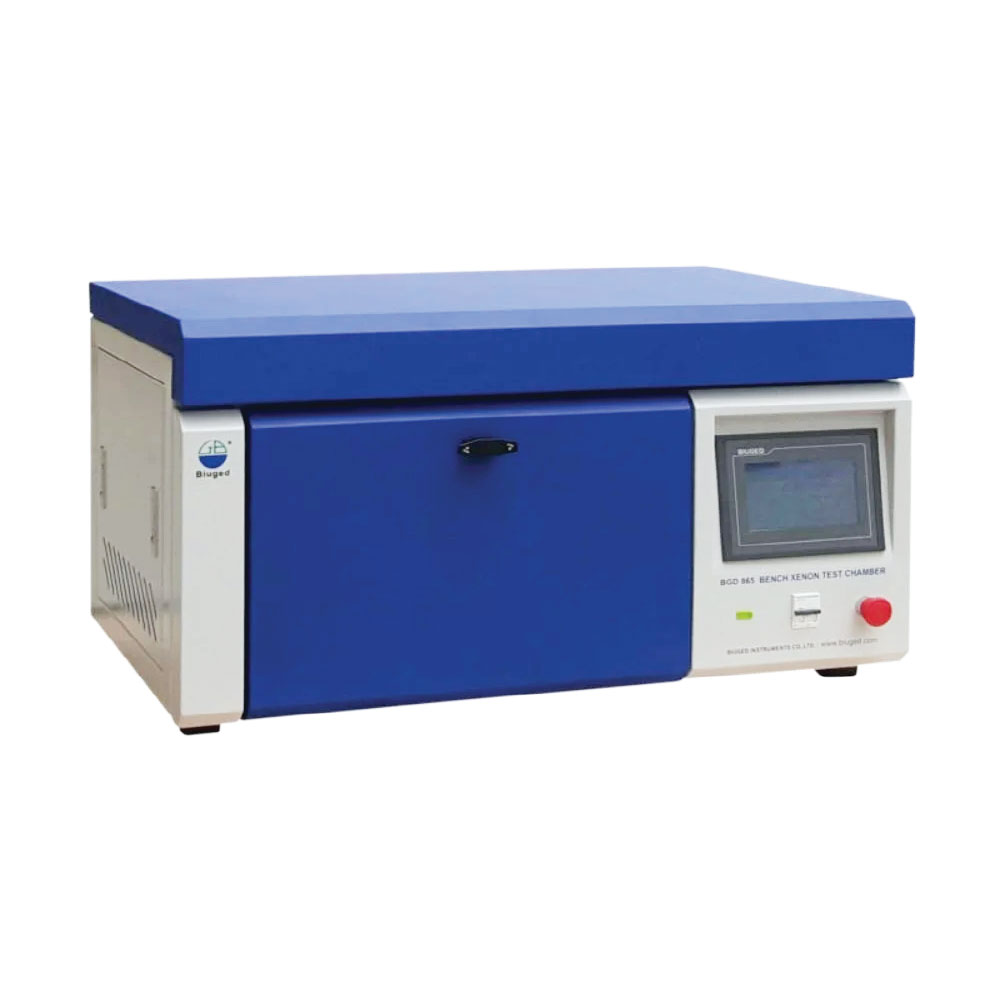

Bench Xenon Test Chamber

Bench Xenon Test Chamber

The Bench Xenon Test Chamber is a compact, user-friendly, and economical solution for accelerated weathering and lightfastness testing. It uses a small air-cooled xenon lamp to generate high irradiation energy within a limited space. A specialized optical reflection system ensures uniform light distribution across all test samples.

The chamber includes an extended UV filter, which allows UV wavelengths consistent with natural sunlight cutoffs—accurately simulating real sunlight that does not penetrate the atmosphere. This capability makes it ideal for accelerated weathering tests, providing faster and more demanding results.

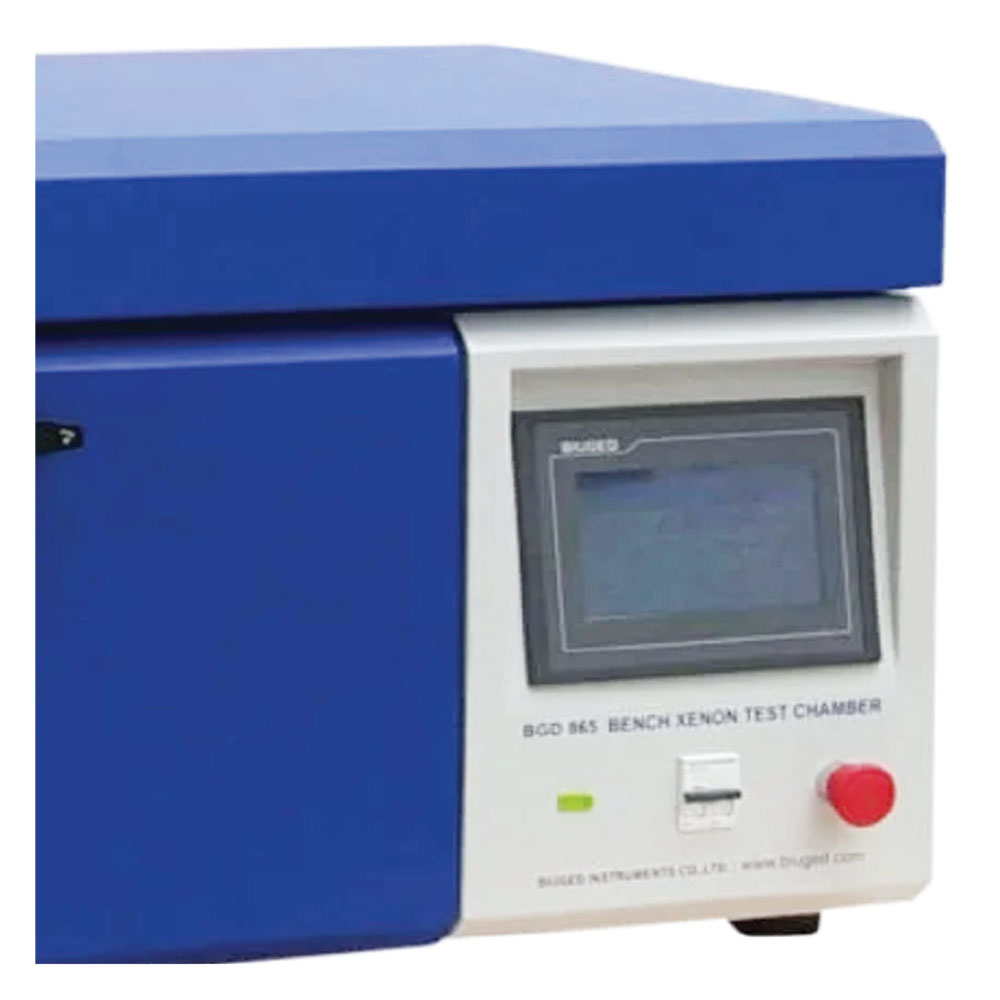

Operators can easily set all test parameters—such as duration and irradiance—through the intuitive touch screen and monitor the test status in real time. The system allows convenient data export to a computer via a USB interface.

Character

• Small size, easy to install, use and practically maintenance-free.
• Xenon light source complies with international standards; ensuring the reproducibility and reliability of test results.
• Energy can be controlled accurately.   The “Closed Loop” control system can automatically compensate for changes in light intensity caused by aging or other factors.
• Users can easily calibrate and adjust the irradiance or temperature of the black panel by themselves.
• With high precision Pt100 Temperature sensor. The black panel temperature is automatically controlled during the process.
• Alarm function for protection: over temperature BPT, big error for irradiation, auto power off protection when opening the door, protection for too low air pressure.
• Touch screen interface and easy-to-use operation enable operators to set test parameters and monitor all testing processes easily.
• Quick and easy specimen mounting and evaluation with unique sliding specimen tray
• Real-time data can be collected and recorded. Incidental USB connector allows users to copy test data to USB drive and achieve unattended operation.

Test Scope

It uses a low power air-cooling xenon lamp to produce enough big irradiance energy in a small space.

Standard

ISO 12040, ASTM D 3451, ASTM D 3794, ASTM D 4303, ASTM D 6577

Parameter

• Xenon Lamp: One 1.8 kW xenon lamp imported from America
• Filter: Extended UV filter (Also can choose sunlight filter or window glass filter)
• Non-radiance monitor method:340nm or 420nm(Narrow band) or 300nm 400nm(broad band)(Choose any one before ordering)
• Lamp life: nearly 1,500 hours
• Exposure area: 1,000 cm2 (can put 9 regular ASCII examples on Add ASCII mm on Add dots)
• Adjustable Irradiance Range: 30 W/m2(300 nm) or0.8 W/m2 0.3 W/m2(@ 340nm) or 0.5 W/m21.5 W/m2(@420nm)
•   Black Panel adjustable temperature range: RT+20 (depending on temperature and irradiation value environment setting)
• Material in Chamber: Stainless steel -SUS 304 material
• Exterior Room Material: Powder Coating
• Increase the number of Add spots [%s]
• Net weight:93KG(130KG Gross Weight)
• Power Supply:220V 50/60HZ(alternative)
• Max. Current: 12A
• Max Power:2.5kW

Why Choose Xenon Test Chamber?

The Bench Xenon Test Chamber stands out for its compact design, high accuracy, and user-friendly operation. Its closed-loop control system maintains stable irradiance, automatically compensating for lamp aging or environmental changes to ensure consistent test results. Operators can easily adjust and calibrate irradiance or black panel temperature using the touchscreen control interface and Pt100 temperature sensor. The chamber features multi-level safety protections, including over-temperature, irradiation deviation, and low air-pressure alerts. With real-time data monitoring, USB data export, and quick specimen mounting via a sliding tray, it delivers efficiency and reliability. Built from SUS 304 stainless steel with powder-coated exterior, it complies with ISO 12040 and ASTM D standards, making it ideal for laboratories, coatings, plastics, and material testing.
