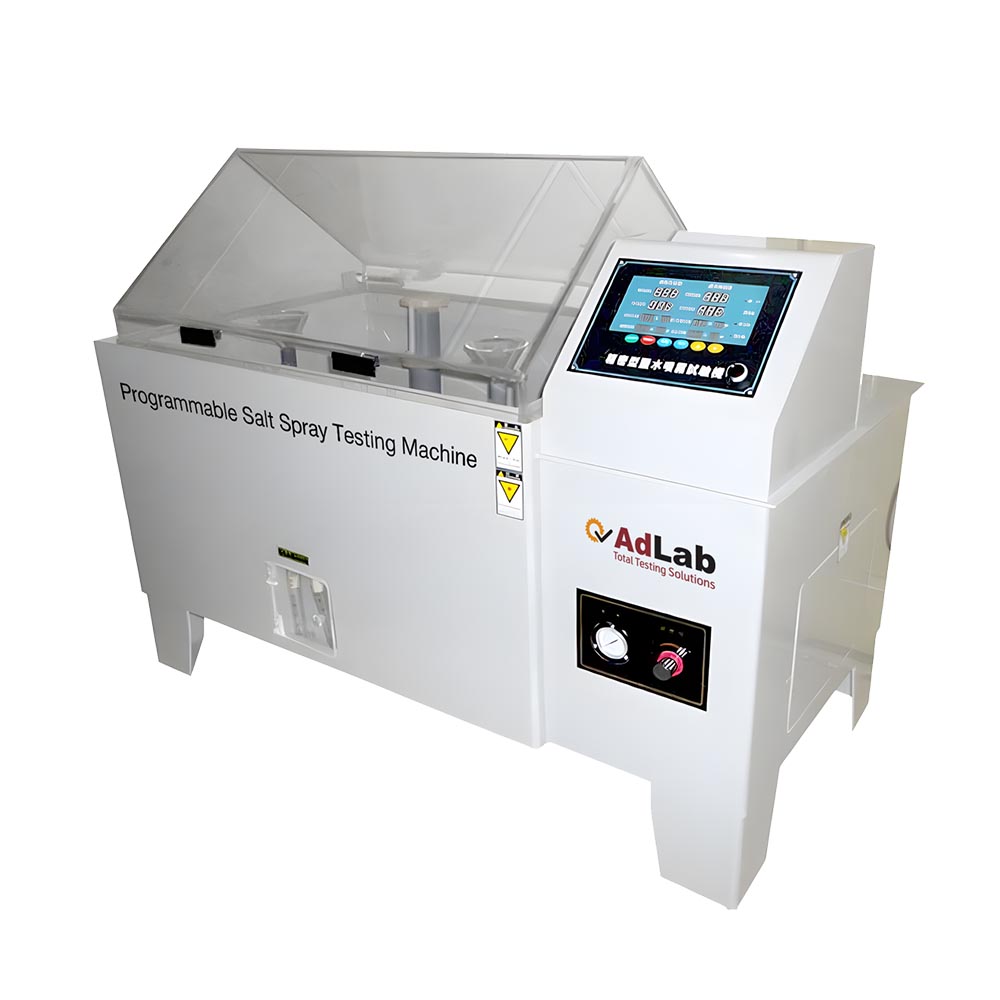

Programmable Salt Spray Testing Machine - Image 1

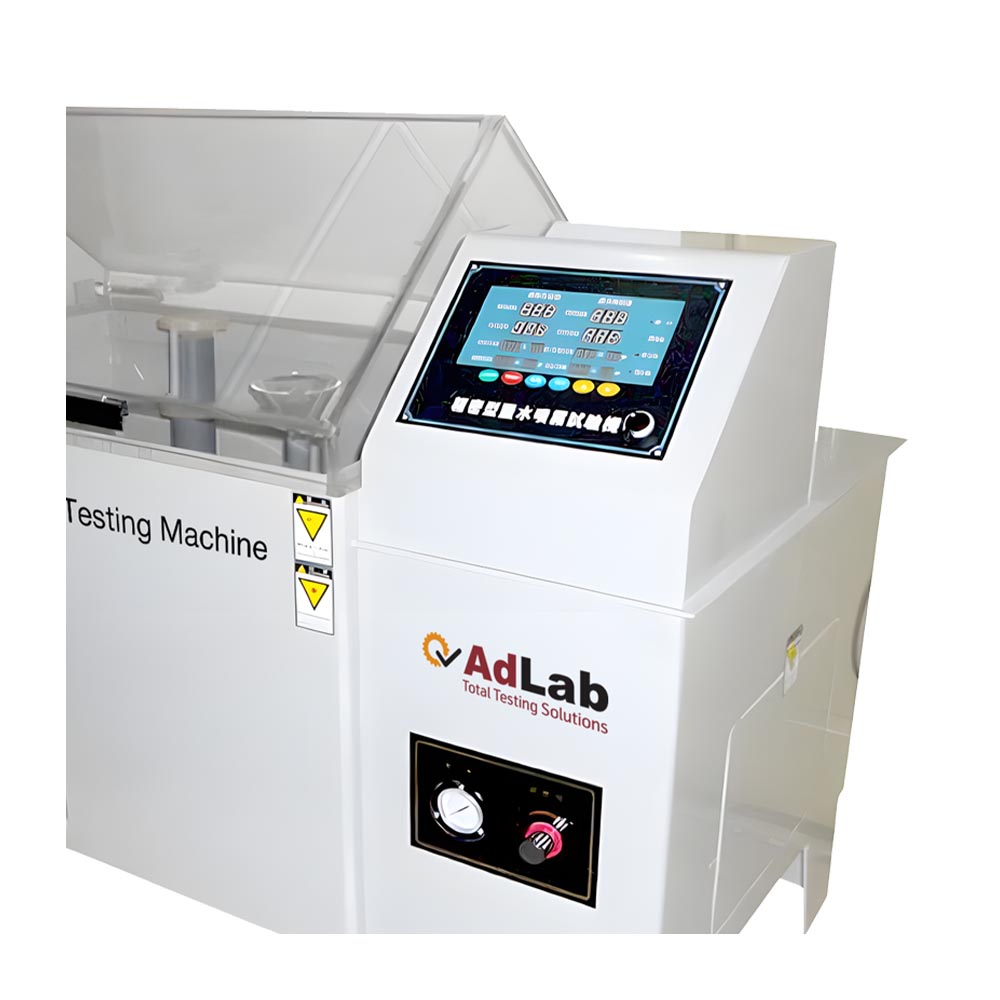

Programmable Salt Spray Testing Machine - Image 2

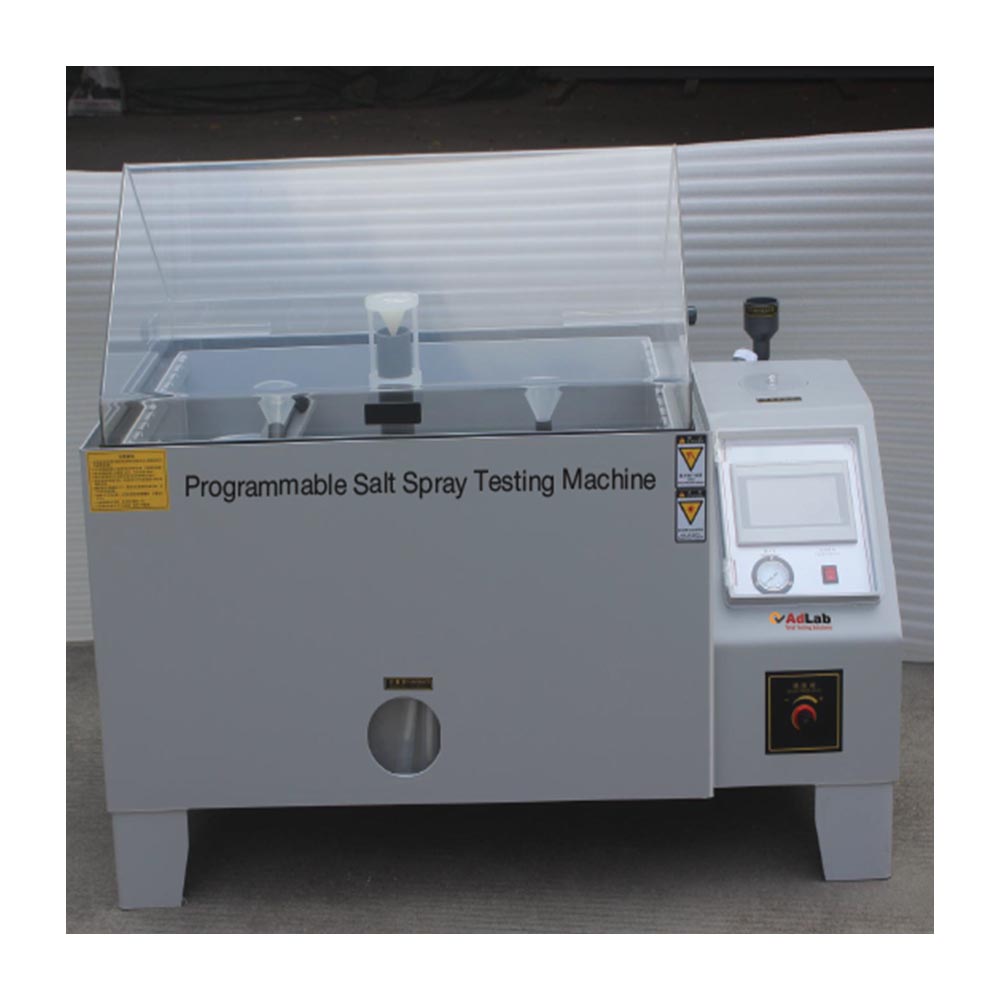

Programmable Salt Spray Testing Machine

Description

Salt Spray Testing Overview

The Programmable Salt Spray Testing Machine is a specialized device used to test the corrosion resistance of products with treated surfaces, such as paint, electroplating, inorganic and organic films, anode handling, and anti-rust oil.

Salt Spray Testing Standard

GB/T 2423.17-1993 salt spray test
GB/T 2423.18-2000 salt spray test
GB/T 10125-1997 salt spray test
B117-97 salt spray test
JIS H8502 salt spray test
IEC68-2-11 salt spray test
IEC68-2-52 1996 salt spray test
10587-89 salt spray test
4158 salt spray test
4159 CASS Accelerated acetic acid copper salt spray test
GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

Technical Parameters

Models and Capacities:
- ADL-SST01(108L): 108L testing room capacity, 15L brine tank
- ADL-SST01(270L): 270L testing room capacity, 25L brine tank
- ADL-SST01(360L): 360L testing room capacity, 35L brine tank
Dimensions:
- ADL-SST01(108L): Inside 60 x 45 x 40 cm, Outside 107 x 60 x 118 cm
- ADL-SST01(270L): Inside 90 x 60 x 50 cm, Outside 141 x 88 x 128 cm
- ADL-SST01(360L): Inside 90 x 80 x 50 cm, Outside 141 x 117 x 128 cm
Testing Conditions (per CNS, JIS, ASTM, GB2423.19):
- Salt Spray Test (NSS, ACSS): Testing room: 35°C ±1°C, Saturated air barrels: 47°C ±1°C
- Anti-Corrosion Test (CASS): Testing room: 50°C ±1°C, Saturated air barrels: 63°C ±1°C

Salt Concentration: 5% sodium chloride or 5% sodium chloride with 0.26g/L copper chloride (CuCl₂·2H₂O)
Air Pressure: 1.00 ± 0.01 kg/cm²
Spray Volume: 1.0~2.0 ml/80cm²/hr (average over 16 hours)
Testing Room Relative Humidity: 85% or above
pH: 6.5~7.2 ± 0.3-0.2
Spray Form: Programmable spray (continuous and intermittent)
Power:
- ADL-SST01(108L): AC220V ± 10%, 50Hz, 10A
- ADL-SST01(270L): AC220V ± 10%, 50Hz, 15A
- ADL-SST01(360L): AC220V ± 10%, 50Hz, 20A
Control System: Digital micro-computer temperature controllers (0-99.9°C) with PID automatic calculation, control error ±3°C
Safety Features: Low water level and over-temperature protection with automatic power cutoff, plus a warning light
Attachments: Reagent sodium chloride (500g, 2 bottles), calibration cup (1 pc), instruction manual (1 pc), pH test paper (1 pc)

Detailed Configurations as Follows

Machine Material:

testing room using PVC polyvinyl chloride plate (from Taiwan), acid-resisting and alkali-resisting, cleaning easier.
cover of testing room using acrylic panels (imported organic glass), the thickness is 5mm.
reagents added bottles attached with water gauge, cleaning easy and not easy to break.
saturated air barrels are made of SUS # 304 stainless steel.
testing room to adopt indexing frame, can be arbitrarily adjust the angle, Surrounded by fog and placed more piece.

According To CNS JIS ASTM GB2423.19 Specifications, Can be Set Constant Temperature To Control

Salt Spray Test	NSS, ACSS
1. testing room	35℃ ± 1℃
2. saturated air barrels	47℃ ± 1℃
Anti-Corrosion Test	CASS (copper acetate)
1. testing room	50℃ ± 1℃
2. saturated air barrels	63℃ ± 1℃

Air Supply System: air pressure 1Kg/cm2 Two-stage adjustments (coarse / fine-tuning)

the first paragraph for the rough adjustment 2-2.5Kg/cm2, the second paragraph to fine-tune 1Kg/cm2.
Testing configuration is switch connector designed for SO2.

Spray Form

(A) Using Bo Nute principle to draw brine and then saline spray, atomization uniform, non-blocking and crystallization, so that ensure continuous spraying.
(B) Nozzle: The nozzle is made of special glass, adjust spray volume and spray angle.
(C) spray volume: Adjustable 1 ~ 2ml (80cm2/hr) (average of 16-hour volume).

Heating Devices

By direct heating, warming up faster and reduction of standby time, when the temperature arrives automatically switch ON / OFF, make temperature accuracy, low power consumption (heating tube is made of titanium alloy).

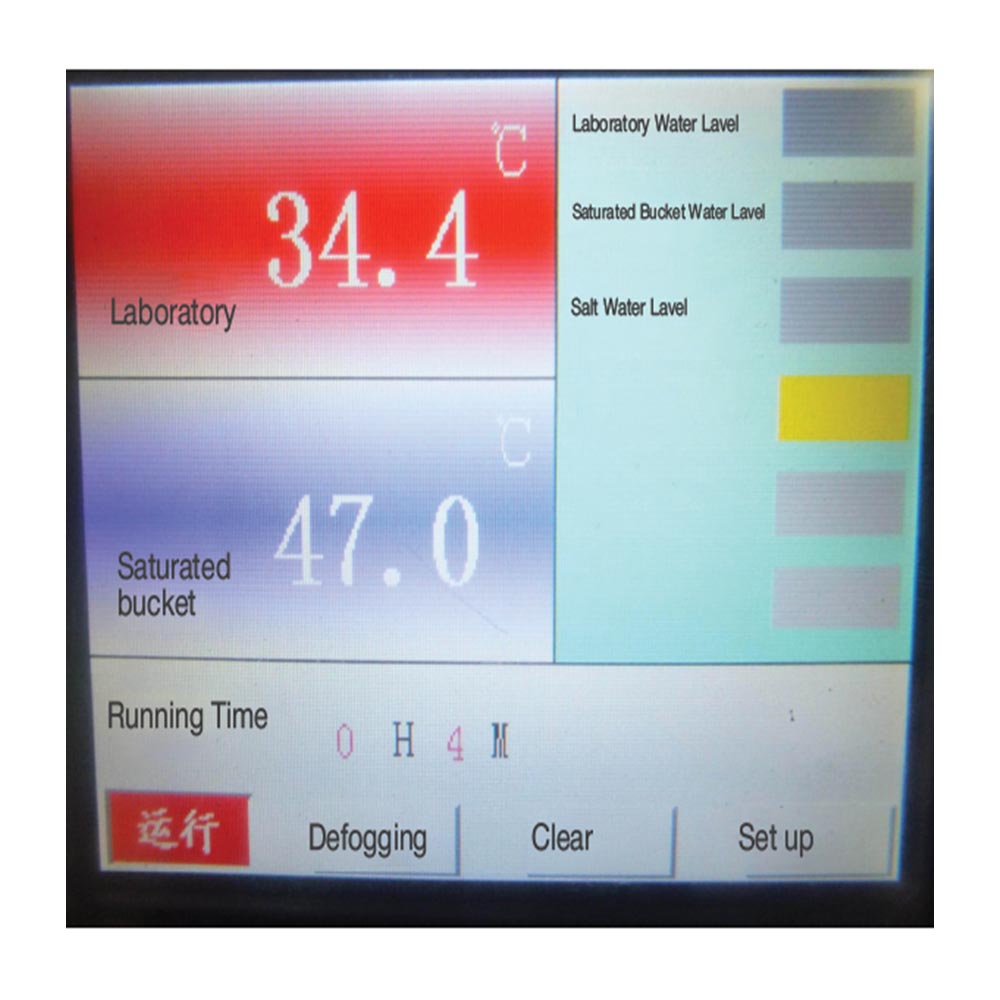

Control System

testing room temperature controller is the digital micro-computer products 0-99.9 ℃, liquid crystal digital display with PID automatic calculation, the control error is ±3 ℃ (YANG MING6802) 1 pcs.
saturated air barrels controller 0 ~ 99.9 ℃, liquid crystal digital display with PID automatic calculation, the control error is ±3 ℃ (YANG MING6802) 1 pcs.
safe temperature controller of heat expansion of the liquid tank 30 ~ 110 ℃ (Italy) 1 pcs.
safe temperature controller of expansion of the saturated air barrel: 30 ~ 110 ℃ (Italy) 1 pcs.
digital time controller 9.9s ~ 9990hr (Taiwan) 1 pcs.
timer 0 ~ 9999hr (Taiwan Anliang) 1 pcs.
buckle switch, continuous buckling 20000 times.
60 type, 90 type for manual flip, 120, 160, 200 type for the pneumatic cylinde automatic opening and closing.
pressure gauge, (Taiwan B card).
fixture bleaker (YANG MING).
electromagnetic valve; (KSD).
regulating valve (YIHUA).
bleaker (Omron).

Add Water Systems

Using automatic water replenishment system, automatic replenishment when the water level is too low.

Safe Protective Device

low water level, automatically cut off power supply.
over-temperature, automatic cut off the power supply.
attached to the safe warning light device.

Attachment

Reagent sodium chloride (NACL) 500g: 2 bottles
Calibration cup: 1 pc
Instruction: 1 pc
PH test paper1 pc

Why Choose this Machine?

The Programmable Salt Spray Testing Machine is an essential tool for manufacturers aiming to ensure the corrosion resistance of their products. Since surface treatments like paint, electroplating, and anti-rust oil must withstand harsh environments, this tester simulates corrosive conditions to evaluate durability. For instance, it supports testing across various standards, including ASTM B117 and ISO 9227, ensuring reliable results for quality control. Moreover, its programmable features, such as adjustable spray volume and temperature control, make it highly versatile for different testing needs. Consequently, manufacturers can improve product longevity and meet industry standards.
