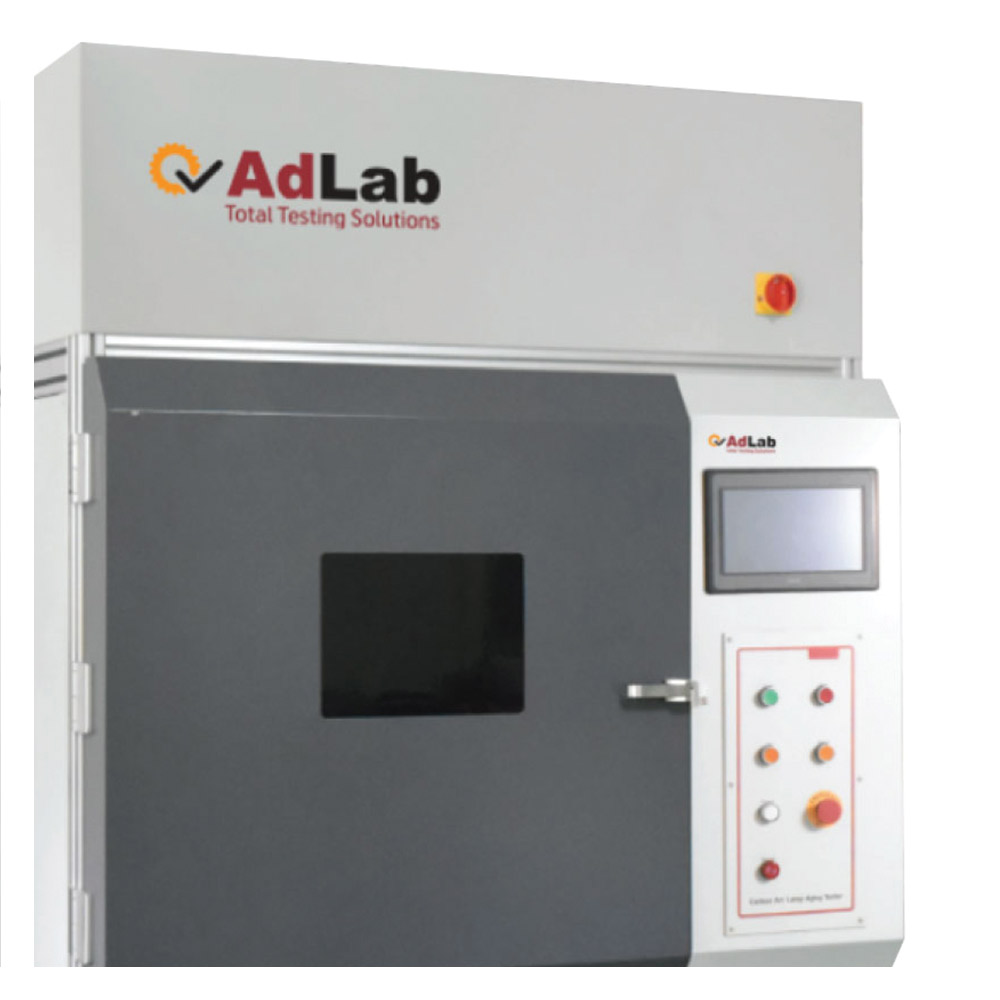

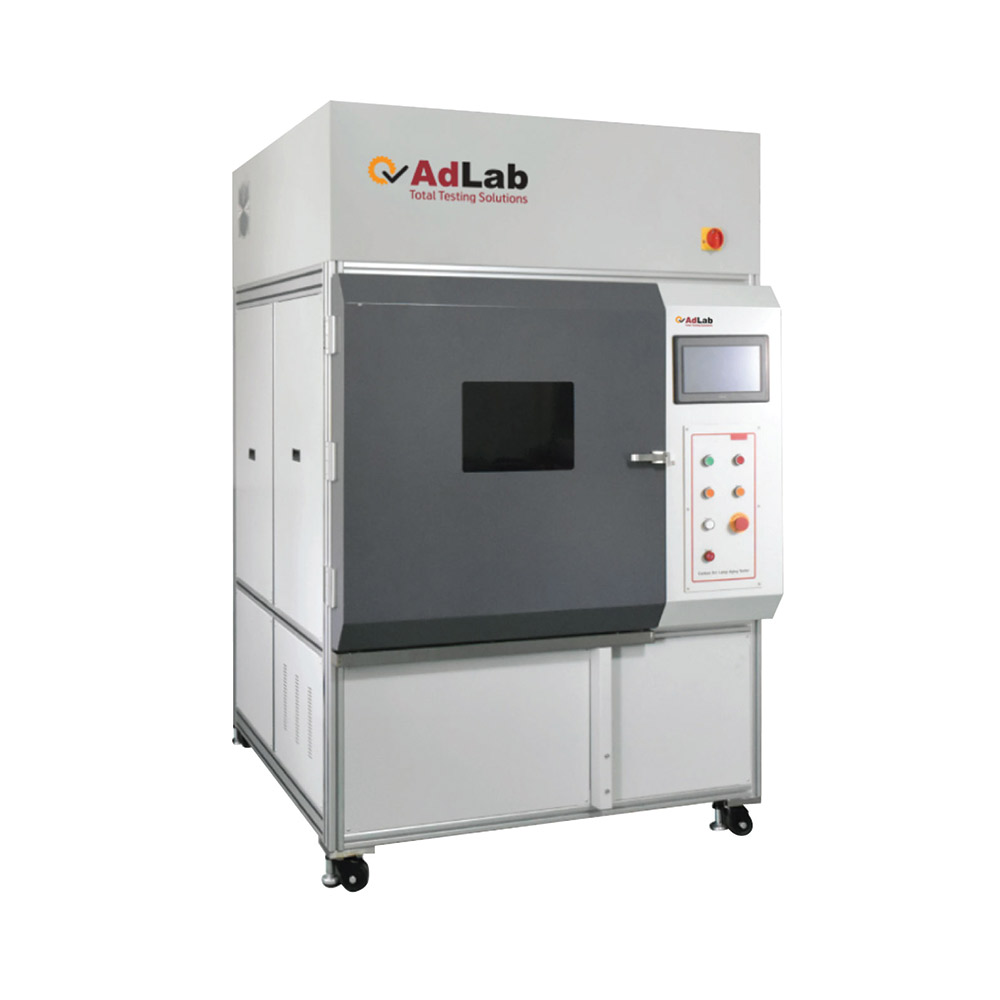

Carbon Arc Aging Tester

High-precision Carbon Arc Aging Tester simulates sunlight and rain to evaluate material weather resistance, fading, and durability under accelerated aging conditions.

Simulates natural sunlight and rainfall for accelerated aging tests
Touchscreen control with programmable test parameters
Complies with ISO, ASTM, JIS, and AATCC standards

Description

The Carbon Arc Aging Tester uses an alternating current to create an arc between carbon rods, generating intense illumination. After passing through a filter, the light source delivers higher irradiation energy than natural sunlight. This high-energy light accelerates the aging of the sample’s surface.

The tester also includes a built-in sprinkler system that simulates rainfall, allowing it to reproduce both sunlight and rain conditions. By combining these effects, the instrument accurately evaluates a material’s weather resistance through accelerated testing.

During normal use, materials are often exposed to outdoor sunlight, indoor artificial light, or moisture from rain. These conditions can cause fading, yellowing, and changes in physical properties such as strength — a process known as natural aging. The Carbon Arc Aging Tester replicates these effects much faster, enabling manufacturers to assess a material’s anti-aging performance efficiently.

The tester features an electric light source that produces a discharge arc when two carbon rods touch and receive current. This arc forms the core of the carbon arc weathering system. The device uses four pairs of carbon rods — a thick upper rod and a thin lower rod — surrounded by filter lenses. The filtered light contains a range of wavelengths that closely match natural sunlight and radiates directly onto the surface of the test specimen.

A carbon rod drive system continuously adjusts the distance between the upper and lower rods to maintain stable voltage and current within the standard tolerance range. This ensures consistent light intensity and reliable test results.

Standards Compliant

JIS A1415, JIS L 0842, B7753 D0205, G3312, H86885, K2246, K5400, Z9117, ISO4892-1, ASTM G23, AATCC, NCCA

Several Major Features

Smart Touch-Screen Control Panel:
The microcomputer control system delivers efficient and reliable performance. Its 7-inch programmable color LCD touch screen manages control, detection, calculation, and data display functions with ease.

Powerful Software Functions:
The upgraded control system handles both complex custom programs and simple pre-set tests. Clear and intuitive icons make operation effortless. Users can program irradiance, temperature, and humidity to change step by step, meeting diverse testing requirements.

Multi-Directional Protection Design:
The tester includes comprehensive protection features such as current and voltage control, water quality and flow monitoring, temperature regulation, and safeguards against overload, overheating, and leakage. These ensure the highest safety for both equipment and operators.

Large Test Area:
The system features an imported carbon arc lamp and a spacious test chamber that accommodates up to 75 samples simultaneously. The rotating sample holder enhances exposure consistency for all test specimens.

Imported Carbon Arc Lamp:
The tester uses high-quality imported carbon arc components that deliver a long lifespan, stable operation, and excellent repeatability for reliable test results.

Field Applications:
The Carbon Arc Aging Tester supports a wide range of industries, including plastics, paints, coatings, inks, packaging, automotive materials, photoactive materials, pigments, dyes, and textiles.

It is applicable to the performance verification of new products, quality control of the production department, and the of material properties for the third-party testing organization, the product performance verification laboratory, and the quality and technic al supervision department, etc.

Configuration Parameter

Standard Configuration

Filter
Blackboard thermometer test
Upper Carbon rod
Lower Carbon rod
Sample holder

Optional Accessories

Pure water machine
Air compressor
Gray color card

Technical Parameters

Control mode: automatic	Sample size: 150mm × 70mm, the maximum number
Carbon arc lamp continuous lighting time: 78H	Sample size: 150mm × 70mm, the maximum number Rotation speed of sample rotation frame: 1RPM
Carbon arc lamp discharge voltage: 50V±2V
Carbon arc lamp discharge current: 60A±2A	Diameter of sample rotation frame: 960mm±6mm
Carbon arc light source illuminance: 255W/㎡	Distance from the center of the arc to the surface of the specimen: 480mm±3mm
Blackboard temperature: 63°C ± 3°C or 83°C ± 3°C
Water spray pressure: 0.08Mpa-0.13Mpa, per minute Water quantity: 2100ml±100ml, water temperature: 16°C±5°C	Weight: 375kg
	Power supply: 380V 50Hz
Humidity of studio: 50%RH±5%RH	Dimension: 150cm×150cm×220cm

Why Choose Carbon Arc Aging Tester?

Choose the Carbon Arc Aging Tester for its precision, reliability, and versatility in accelerated weathering evaluation. Its 7-inch smart touchscreen and microcomputer control system simplify operation, allowing users to program irradiance, temperature, and humidity with step-by-step control. Equipped with multi-directional safety features—including overload, leakage, and temperature protection—it ensures safe and stable operation. The rotating sample holder and large test chamber accommodate up to 75 specimens for uniform exposure. High-quality imported carbon arc lamps deliver consistent intensity and long service life, while the advanced drive system maintains stable voltage and current throughout testing. Fully compliant with ISO, ASTM, JIS, and AATCC standards, it’s the perfect solution for R&D, quality control, and material performance verification across multiple industries.
