Smart Air Permeability Tester

Smart Air Permeability Tester

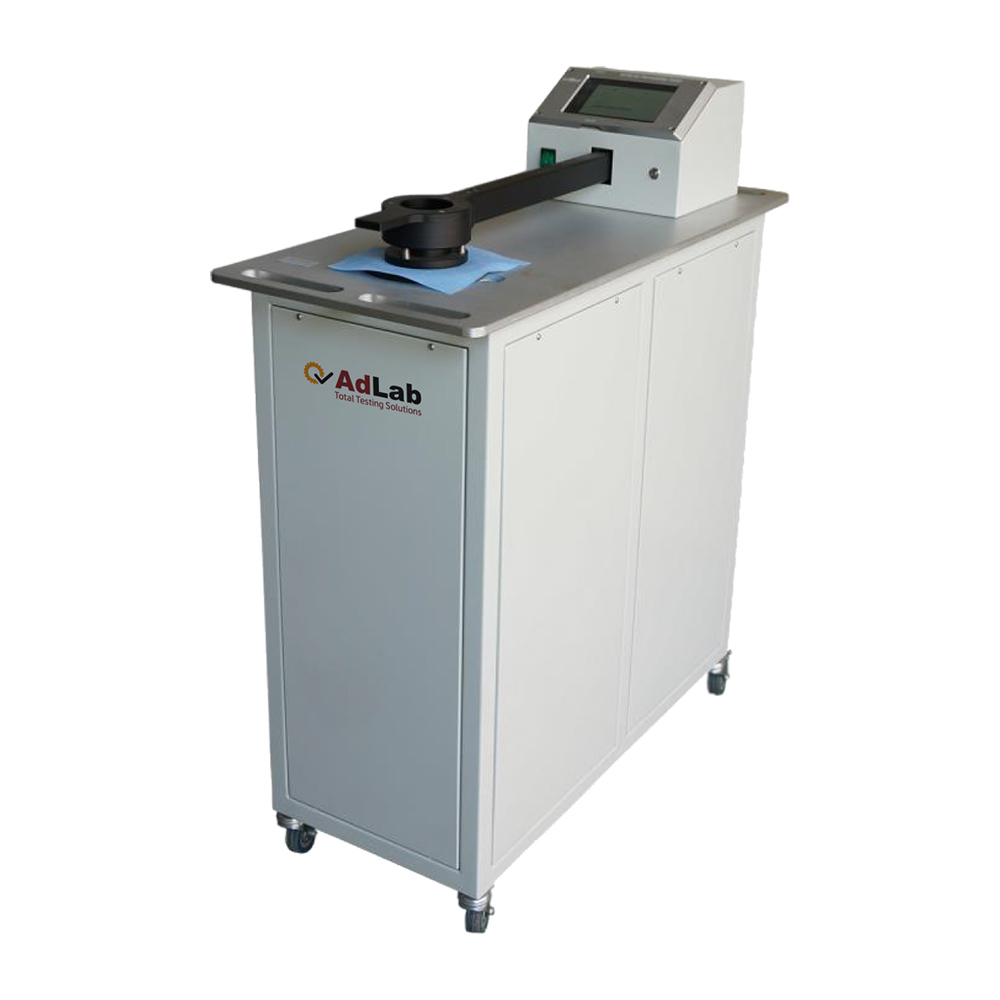

The Smart Air Permeability Tester quickly and accurately measures the air permeability of various flat materials and foam cubes. Its wide measuring range covers everything from dense papers and airbag fabrics to highly open non-woven and forming fabrics.

The Air Permeability Tester features an Android-based color touchscreen tablet with a multi-touch panel for simple and intuitive operation. Users can save results directly to Excel, generate professional reports, and share data instantly via Wi-Fi or SD card.

Features

• Measures the air permeability of fabrics, nonwovens, and foams with high precision.
• Equipped with a 10-inch capacitive touchscreen for smooth control.
• Automatically selects the correct test head based on fabric flow rate.
• Offers automatic testing and precise test pressure control.
• Uses a leak-prevention design to ensure highly accurate results.
• Saves data in Excel format for easy reporting and analysis.
• Sends results instantly through Wi-Fi or saves them to an SD card.

Technical Specifications

• Measuring Range:
  0.4–750 cm³/cm²/s (5 cm² test area)
  1–10,000 l/m²/s (20 cm² test area)
  0.03–400 m³/m²/min (38 cm² test area)
  0.1–1,600 l/dm²/min (100 cm² test area)
• Accuracy: ±2% of displayed value
• Test Pressure: 10–2,500 Pa
• Test Heads: 20 cm² standard; 5, 25, 38, 50, and 100 cm² optional
• Sample Thickness: 0–10 mm (0–4″)
• Power: 195–250 V / 85–130 V, 50/60 Hz, max. 1,100 W
• Dimensions (W×D×H): 40 × 92 × 110 cm
• Weight: 60 kg (net), 75 kg (gross)
• Data Port: Wi-Fi
• Table Height: 85 cm

Test Principle

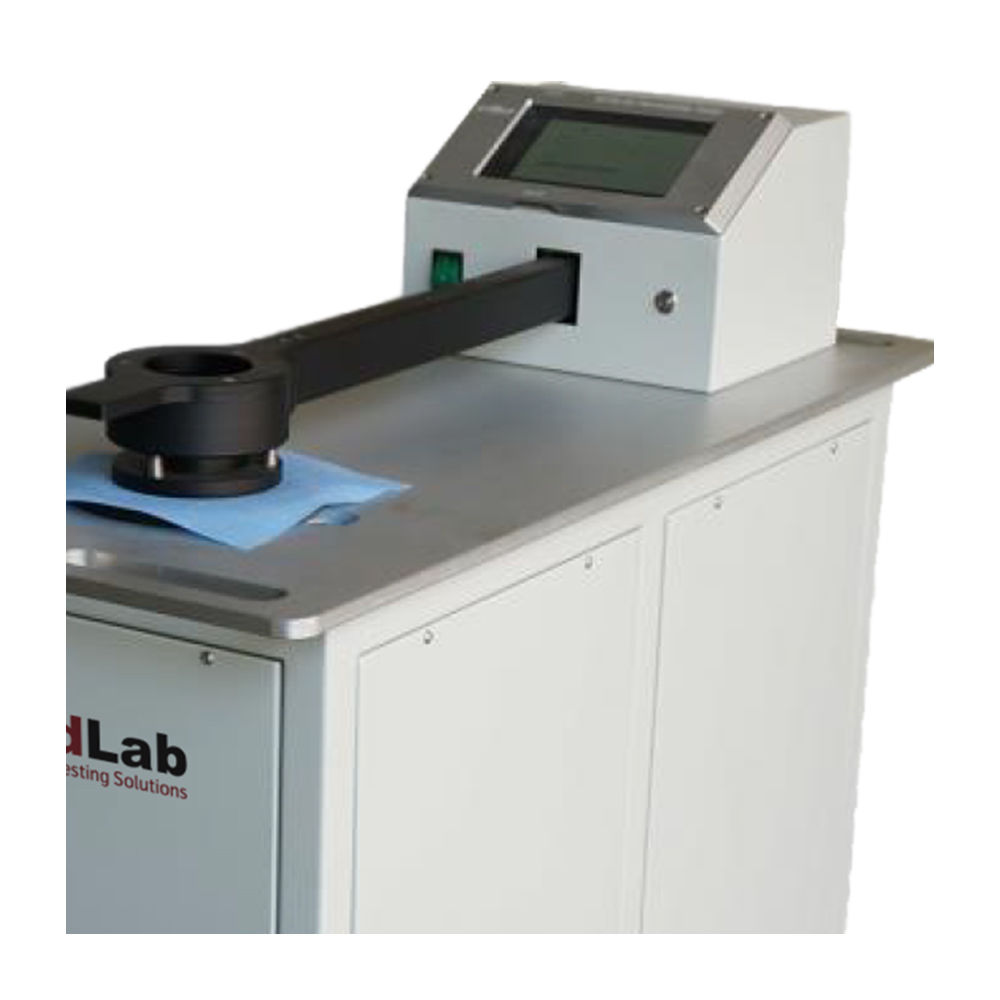

The operator clamps the fabric over the test head. Pressing the clamping arm automatically activates the vacuum pump. The system maintains the pre-selected test pressure and displays the air permeability result in the chosen unit within seconds.

Control Panel

The system uses a Samsung Android tablet with a multi-touch interface for easy operation and maintenance. Test results can be shared instantly via Wi-Fi or saved for later access.

Test Report

Users can export data as Excel files and transfer them through Wi-Fi or SD card for quick editing and printing.

Testing Standards

AFNOR G 07-111, ASTM D737, ASTM D3574, BS 5636, DIN 53887, EDANA 140.1, EN ISO 7231, EN ISO 9237, JIS L1096-A, TAPPI T251, GB/T5453, GB/T 22819-2008

Standard Configuration

• Main Body
• Test Head (20 cm²)
• LABTest Analysis Software
• One Verification Check Plate
