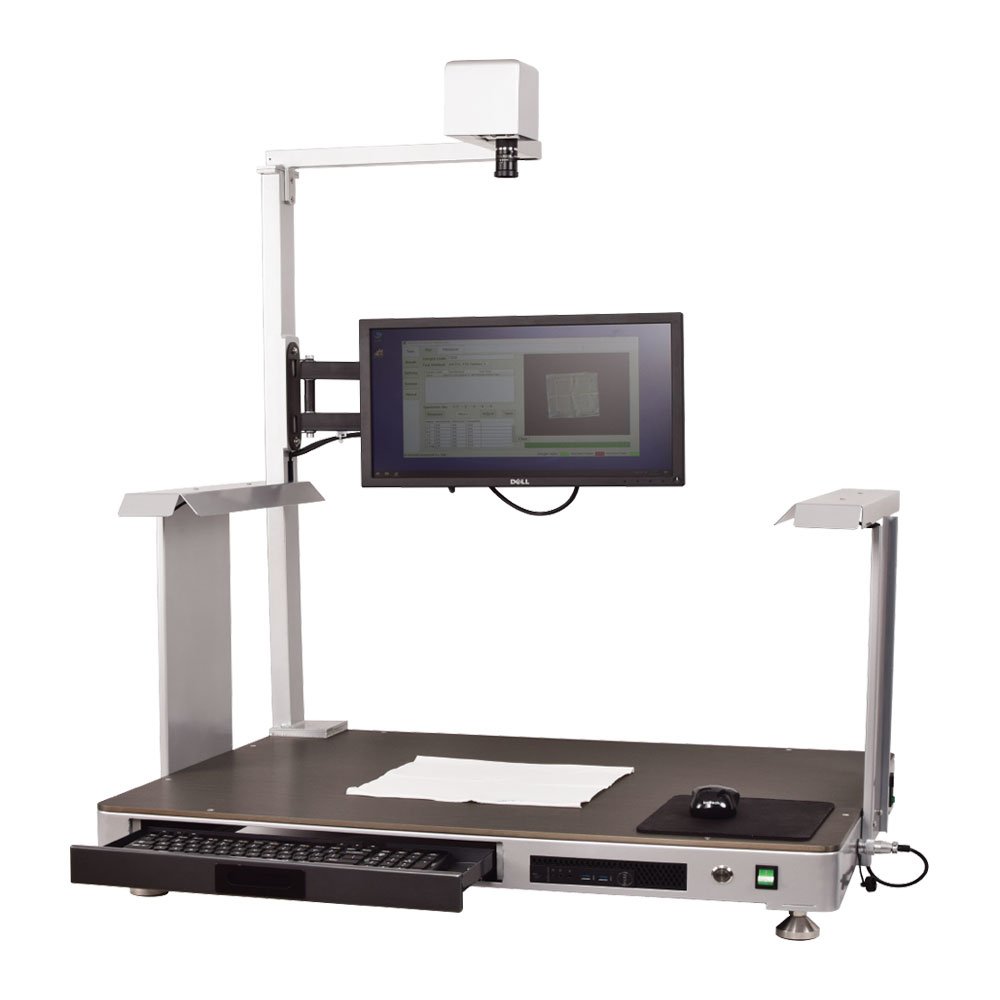

Automatic Dimensional Stability Measurement

Introduction

The Automatic Dimensional Stability Measurement is an innovative solution for determining fabric dimension changes after washing, steaming, or hot pressing, featuring PC-controlled automation and digital image analysis. As the first of its kind, it measures samples up to 610×610 mm with precision, meeting industry needs. The Dimensional Stability Measurement is ideal for textile labs and manufacturers testing fabric stability under various conditions, such as washing or ironing. Its automation suits quality control for woven and knitted textiles across diverse production settings.

Key Features

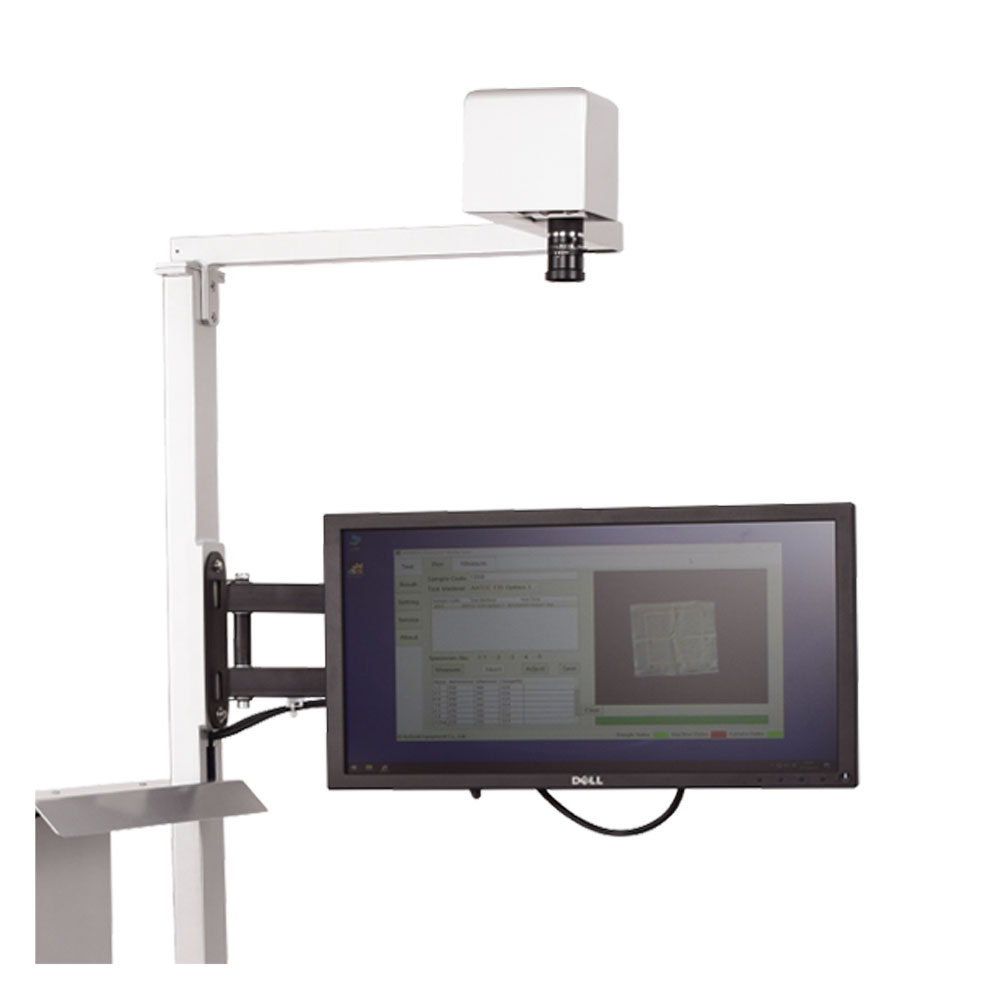

• Automated Precision: The Dimensional Stability Measurement uses a high-resolution camera to measure distances between marking points up to 500×500 mm.
• Smart Analysis: Automatically calculates dimensional changes and skewness, streamlining post-treatment assessments.
• PC Software: Includes pre-loaded standards like AATCC and ISO, ensuring compliance and quick calculations.
• User-Friendly: Eliminates manual measurement, reducing operator error with a 70 kg, 1000x720x1200 mm design.

Technical Specifications

• Function: Measures dimensional changes after washing, steaming, or ironing
• Camera: Precision digital, resolution within 1 mm
• Max Marking Range: 500 x 500 mm
• Max Specimen Size: 610 x 610 mm
• Features: Automatic dimension change and skewness calculation
• Software: Smart PC with pre-loaded standards (AATCC, ISO, etc.)
• Power: AC230V, 50Hz/60Hz
• Dimensions: 1000 x 720 x 1200 mm (L x W x H)
• Weight: Approx. 70 kg

Why Choose the Automatic Dimensional Stability Measurement?

The Automatic Dimensional Stability Measurement offers unmatched accuracy and efficiency with its automated technology and comprehensive standards support. Its compact design and error-free operation make it a top choice for textile professionals ensuring fabric quality.
