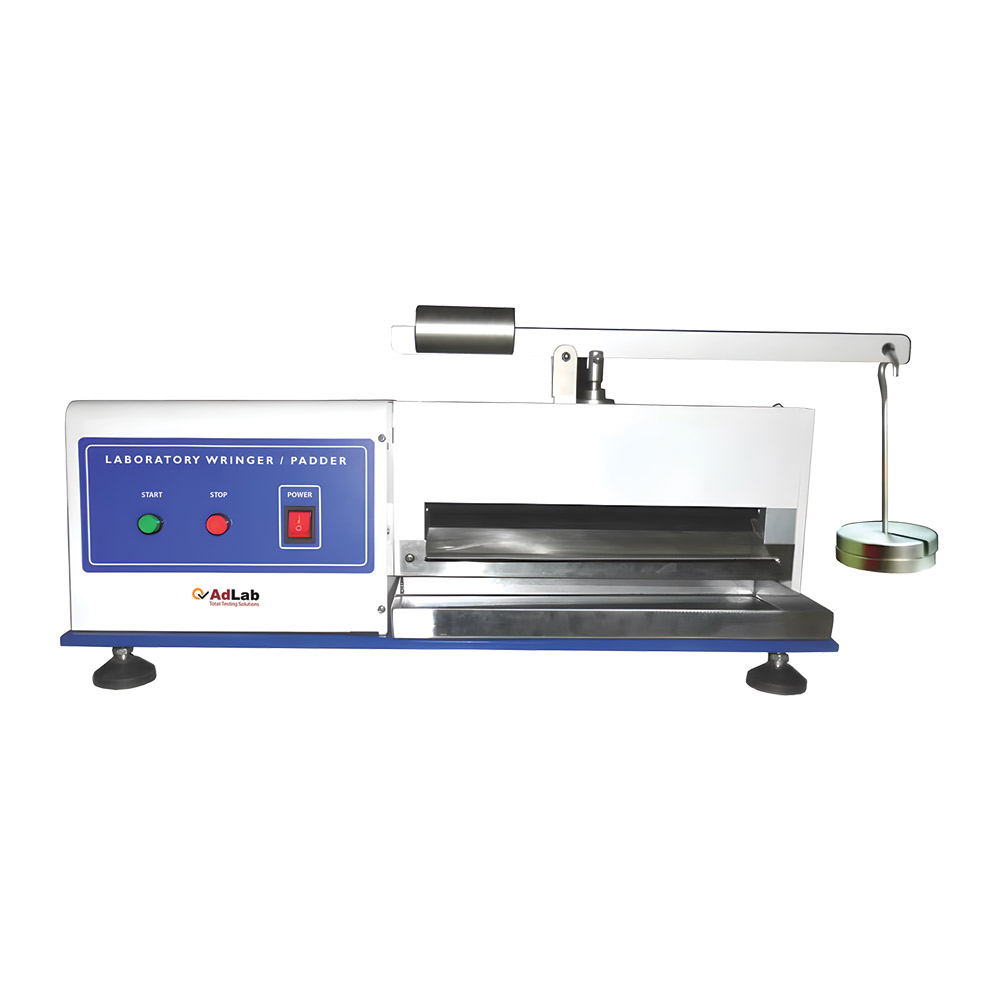

Laboratory Wringer

Application

ADL-LW300 Laboratory Wringer / Padder is used to evenly squeeze or extract excess liquid from fabrics.

Related Standards

GB/T 23320        ISO 18696           AATCC 70

Note: this tester can conform to but not limit to all the    standards above, for more standards conformance, please contact us.

Feature

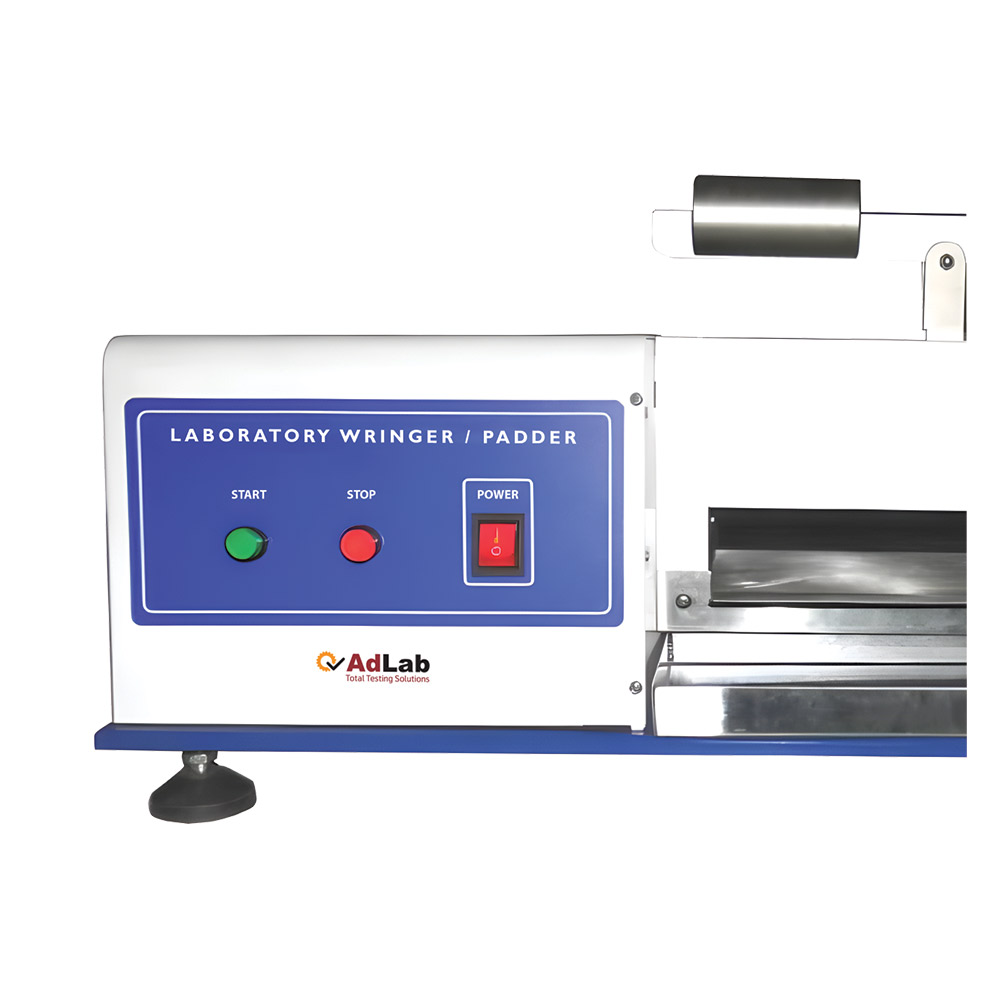

• Driven by the motor, rollers run at a constant speed;

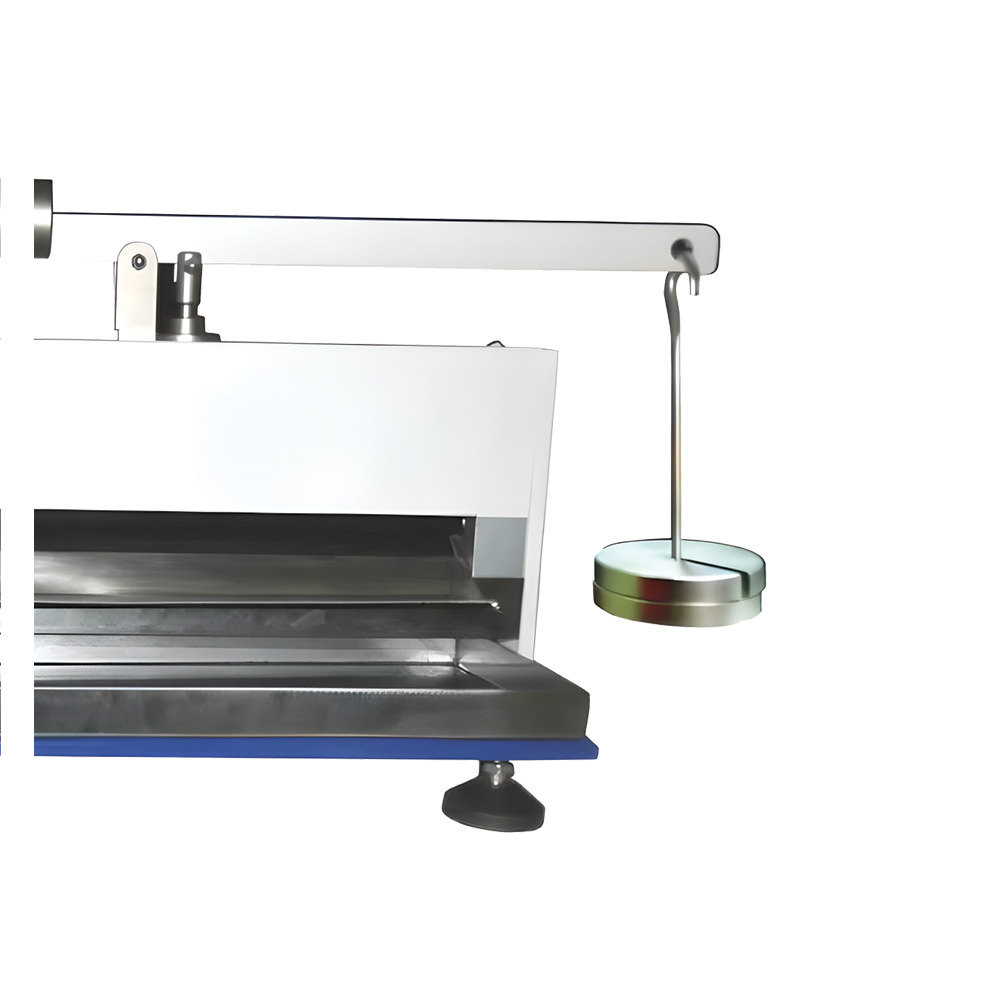

• Pressure can be adjusted flexibly by adding or reducing the weights;
• Equipped with detachable water trough;
• Easy to operate and more effective.

Key Specifications

• Working width – 300mm
• Roller diameter – Φ54mm
• Drive speed – 25mm/s
• Max pressure – 105lb or specified by customer
• Power supply – AC 220V 50Hz
• Package dimensions – 800×280×410mm (L×W×H)
• Net/Gross weight – 42/52kg
