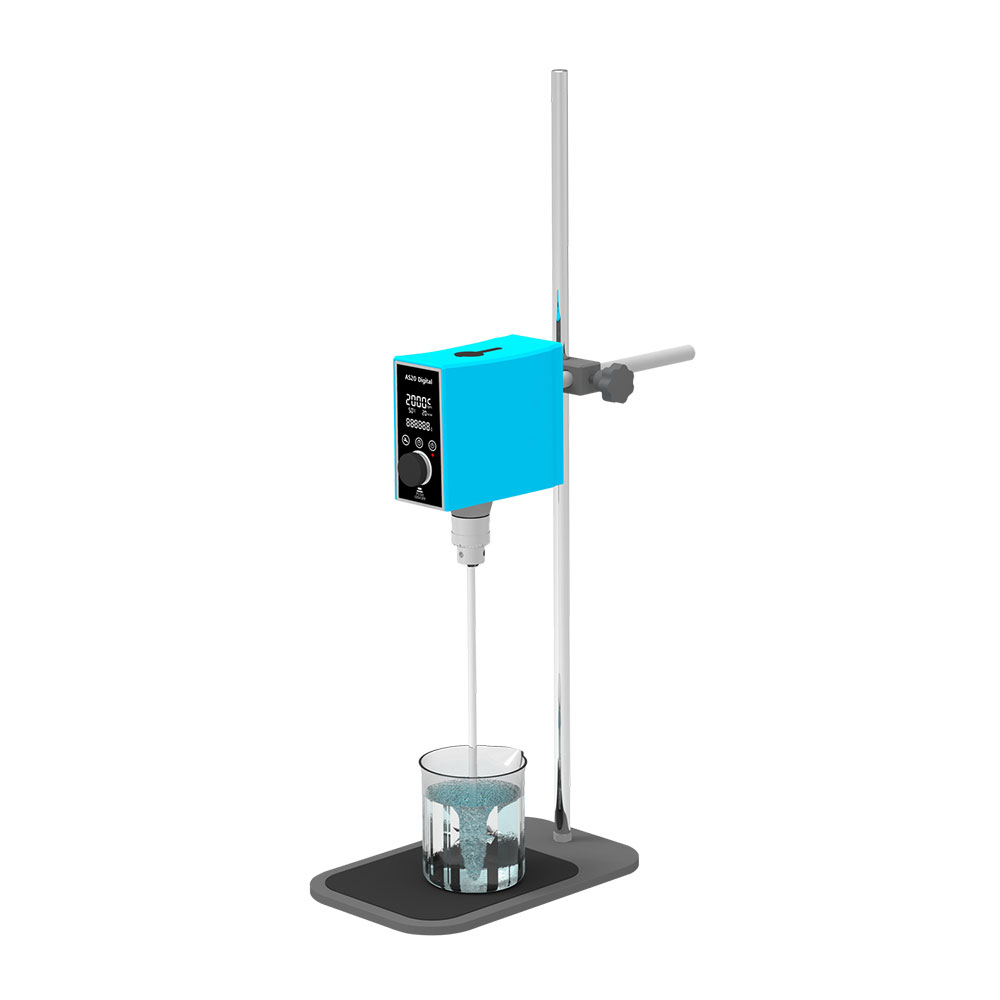

Overhead Stirrer

The Overhead Stirrer is a versatile and precise laboratory tool designed for stirring liquids with maximum control and safety. Equipped with a brushless DC motor, it offers a wide speed range from 30 to 2000 rpm and ±1 rpm accuracy for consistent results. The LCD screen displays real-time speed, torque, and sample temperature. Its adjustable stirring paddle clamp, forward/reverse/alternating functions, and overload protection ensure flexibility and safety across a variety of applications. Ideal for laboratories handling viscosities up to 10,000 mPas, this overhead stirrer supports precise, reliable mixing for samples up to 15 liters.

Product Features

• Equipped with a timer function.
• Can display real-time sample temperature/torque.
• Precise speed control: Control accuracy of ±1 rpm, with LED providing real-time and accurate speed values for easy reading.
• Overload protection: Automatically cuts off power and alarms in case of overload, short circuit, or abnormal speed, ensuring operational safety and laboratory safety.
• Operational functions: Can be set for forward, reverse, and alternating stirring.
• Stirring direction: Can change the stirring direction clockwise or counterclockwise for better stirring results.
• Adjustable Stirring Paddle Clamp: Convenient for adjusting the distance of the stirring paddle up and down, accommodating a wider range of stirring tasks. Easy to install and uninstall, allowing for the replacement of the stirring paddles at any time.

Note: Performance parameters are tested under no-load conditions, at an ambient temperature of 25℃, and ambient humidity of 55%.

Specification

• Maximum Stirring Volume (H2O) (L): 15
• Motor Output Power (W): 60
• Motor Type: Brushless DC Motor

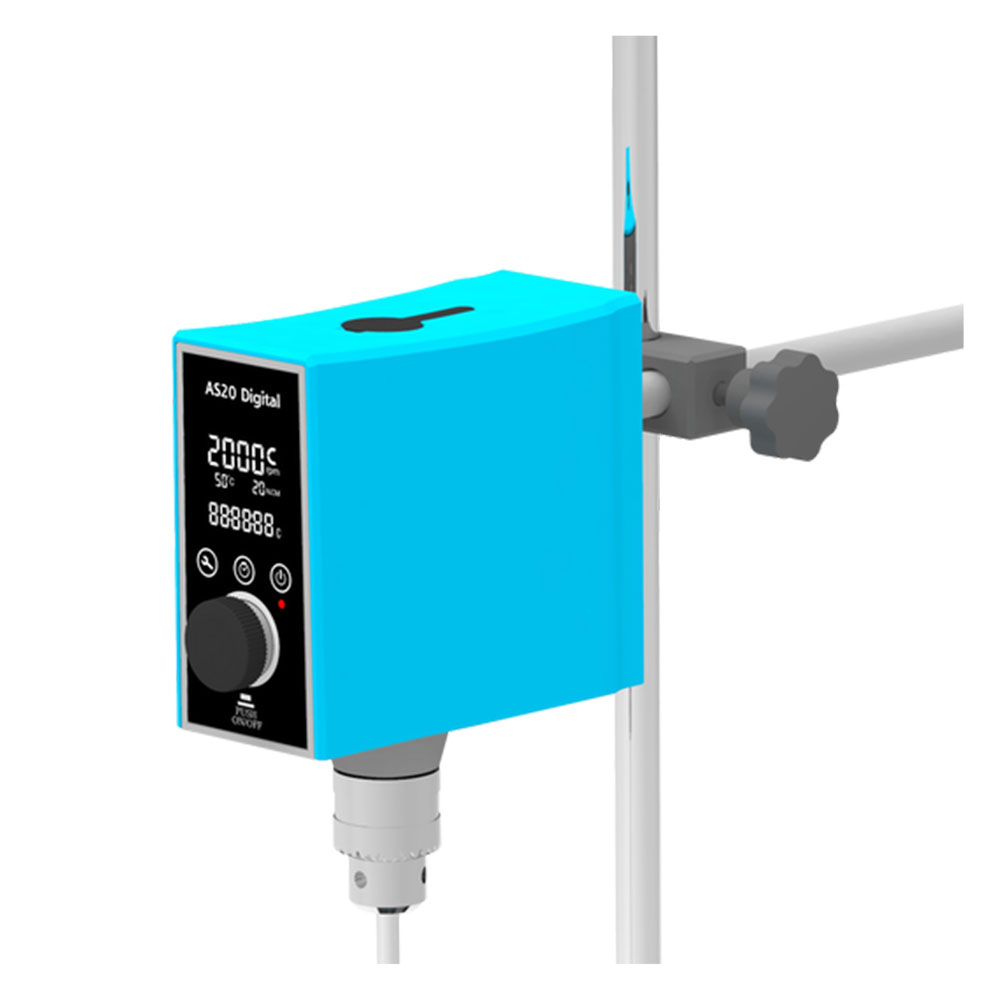

• Display Type: LCD Screen
• Speed Range (RPM): 30 – 2000
• Maximum Viscosity (mPas): 10000
• Maximum Output Power of the Stirring Shaft (W): 60
• Allowable Continuous Operation: 100%
• Maximum Torque of the Stirring Shaft (Ncm): 20
• Speed Control: Stepless
• Speed Setting Accuracy (RPM): ±1
• Stirring paddle Fixation: Drill Chuck
• Minimum Diameter Range for Chuck Holding (mm): 0.5 – 10
• Hollow Shaft Inner Diameter (mm): 11
• Hollow Shaft (Can be inserted when stopped): Yes
• Stand Fixing: Fixed with Extended Arm Clamp
• Casing Material: Cast Aluminum Coating
• Overall Dimensions (WxDxH: mm): 188x78x208
• Permissible Ambient Temperature (℃): 5 – 40
• Direct Current Voltage (V): 24
• Degree of protection, DIN EN 60529: IP54
• Total Weight (g): 2400
• Timer Function: Yes

Why Choose the Overhead Stirrer?

The Overhead Stirrer combines precision, versatility, and safety for demanding laboratory environments. Its stepless speed control with ±1 rpm accuracy allows consistent and reproducible stirring for a wide range of viscosities, up to 10,000 mPas. The LCD screen provides real-time monitoring of speed, torque, and sample temperature, while forward, reverse, and alternating stirring functions offer maximum flexibility. Adjustable paddle clamps accommodate different paddle sizes and heights, making it easy to swap or reposition paddles. Overload protection automatically cuts power and triggers alarms in case of abnormal operation, ensuring safety. Compact yet robust, with a cast aluminum casing and IP54 protection, this overhead stirrer supports up to 15 liters of liquid and continuous operation without overheating.
