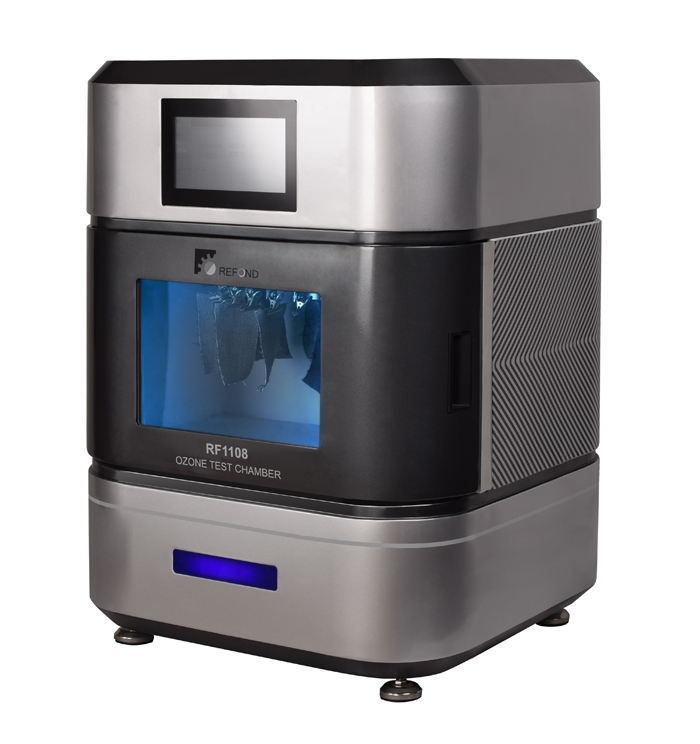

Ozone Color Fastness Tester

The RF1108 Ozone Color Fastness Tester is a professional textile testing instrument used to evaluate the resistance of fabrics to ozone exposure in atmospheric conditions. Ozone in polluted air can cause fading or discoloration in dyed textiles. This machine simulates ozone exposure in a controlled chamber to test color fastness accurately.

The tester features a 7-inch touch screen, adjustable ozone concentration (2–8 ppm), and a rotating 24-station sample holder to ensure uniform exposure. Textile laboratories, dyeing mills, and quality control departments widely use this equipment for reliable ozone fastness testing.

Description

Ozone Color Fastness Tester

The RF1108 Ozone Color Fastness Tester tests the color fastness of textiles when exposed to ozone in the atmosphere at room temperature. Ozone in polluted air can cause fading or discoloration in dyed fabrics. This instrument simulates those conditions in a controlled environment.

Textile laboratories, dyeing mills, and research centers use this tester to evaluate fabric resistance to ozone exposure. The system runs automatically and provides reliable test results.

Key Features

High-Precision Ozone Analyzer: The tester uses a high-end ozone analyzer from a leading American manufacturer. This component ensures accurate ozone measurement and stable performance.
Automatic Computer Control: A built-in computer controls the test parameters and workflow. The 7-inch touch screen allows users to set test conditions quickly.
Adjustable Ozone Concentration: The integrated ozone generator produces ozone between 2 and 8 ppm. Users can adjust the concentration and test duration according to their testing needs.
Rotating Sample Holder: The tester includes a rotating sample holder with 24 positions. The holder rotates slowly during testing. This rotation exposes each sample evenly to ozone gas and improves test accuracy.
Safety Protection: The chamber door includes an alarm system. The system prevents accidental opening during operation and reduces the risk of ozone leakage.
Ozone Decomposition System: The built-in ozone decomposition device neutralizes ozone after testing. The system allows safe discharge without polluting the laboratory environment.

Applications

The tester is suitable for testing ozone resistance of:

Dyed fabrics
Printed textiles
Synthetic fibers
Natural fibers
Finished garments

Textile manufacturers, laboratories, and research institutes widely use this instrument for quality control and product development.

Testing Standards

AATCC 109
ISO 105‑G03
GB/T 11039.3

Technical Specifications

Parameter	Specification
Model	RF1108
Display	7-inch Touch Screen
Ozone Concentration Range	2 – 8 ppm
Ozone Concentration Accuracy	5 ppm ± 0.2 ppm
Sample Capacity	24 Samples
Sample Holder Speed	Approx. 8 rpm
Control System	Computer Controlled
Safety	Door Opening Alarm
Ozone Treatment	Built-in Decomposition Device

Accessories & Consumables

Item	Order Number
Ozone Color Fastness Tester	RF1108
Ozone Generator	RF1108/1
Sample Holder (24 pcs/pack)	RF1108/2
Ozone Decomposition Catalyst (500 g/pack)	RF1108/3

Why Choose This Machine?

Choose the RF1108 Ozone Color Fastness Tester for its high testing accuracy, reliable automation, and safe operation. The machine uses a precision ozone analyzer to deliver consistent results, while the fully automatic control system makes testing simple and efficient. Its rotating 24-position sample holder ensures uniform ozone exposure for every fabric sample. In addition, the adjustable ozone concentration (2–8 ppm) allows laboratories to meet different testing standards. With built-in safety features and an ozone decomposition system, this tester provides a dependable solution for textile laboratories, dyeing mills, and quality control departments.
