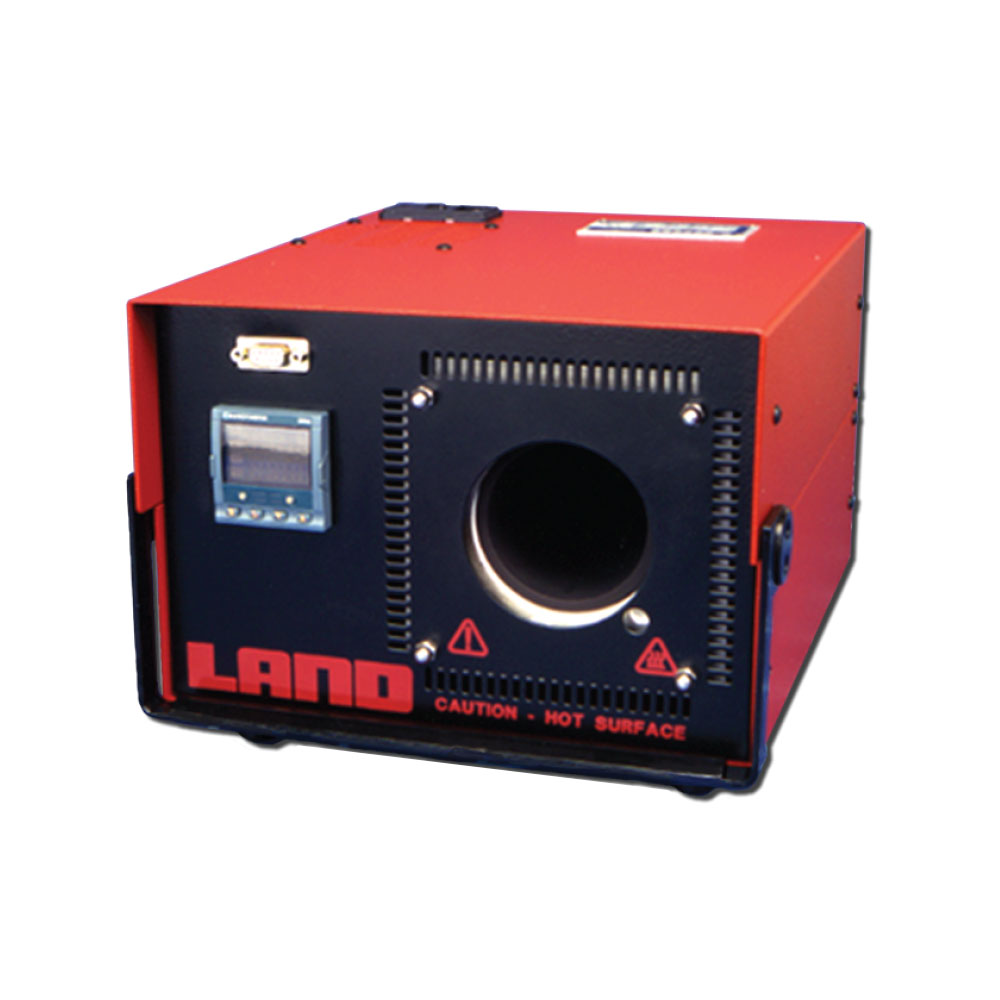

Advanced Radiation Thermometers Blackbody Calibration

The Advanced Radiation Thermometer Blackbody Calibration System is a high-precision solution designed for accurate calibration of radiation thermometers, infrared sensors, and thermal imaging devices. Featuring a blackened aluminum 120° cone cavity with emissivity greater than 0.995, it ensures highly stable and uniform radiation output. With a wide temperature range of 50–550°C and a Eurotherm controller for precise regulation, this system delivers exceptional calibration performance for laboratories, quality control facilities, and industrial environments.

Specification

• Maximum Temperature: 50 to 550°C/120 to 999.9°F
• Recommended Temperature: 100 to 500°C/210 to 930°F
• Heating Rate: 60 min (approx.) to 500°C/930°F
• Radiation Cavity Type: Blackened Aluminium, 120° cone
• Cavity Dimensions: 65mm/2.6in dia x 160mm/6.3in
• Emissivity: >0.995

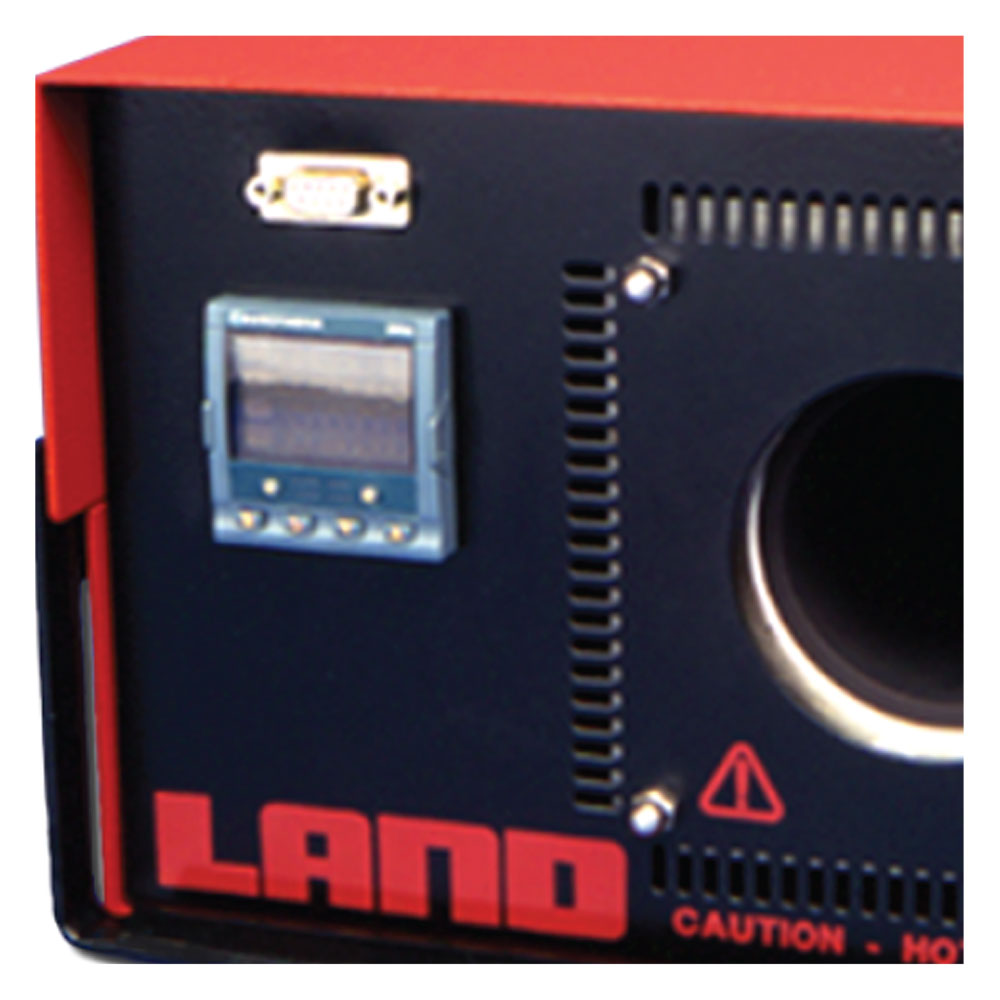

• Controller: Eurotherm with RS 232C serial interface
• Uncertainty of PRT: <±0.2K/0.4°F
• Power Requirement: 110/120V a.c. or 220/240V a.c., 50 to 60 Hz
• Power Consumption: 0.8 to 1.0kVA
• Dimensions: 315 x 260 x 185mm/ 12.4 x 10.2 x 7.3in (L x W x H)
• Weight: 11kg/24.2 (nett)/13kg/28.6lb (gross)

Why Choose This Calibration System?

This Advanced Radiation Thermometers Blackbody Calibration offers unmatched accuracy, stability, and reliability for professionals who require high-quality thermal measurement verification. Its 120° cone-shaped blackbody cavity provides superior emissivity (>0.995), ensuring consistent radiation characteristics essential for precise thermometer calibration. The Eurotherm controller, equipped with RS-232C communication, allows refined temperature control and easy data integration with calibration software. With a wide operational temperature range of 100–500°C, rapid heating capability, and uncertainty below ±0.2K, it meets the needs of advanced industrial and laboratory applications. Compact dimensions, low power consumption, and strong build quality make it ideal for continuous use. Whether for R&D, manufacturing, or metrology labs, this system ensures dependable calibration performance every time.
