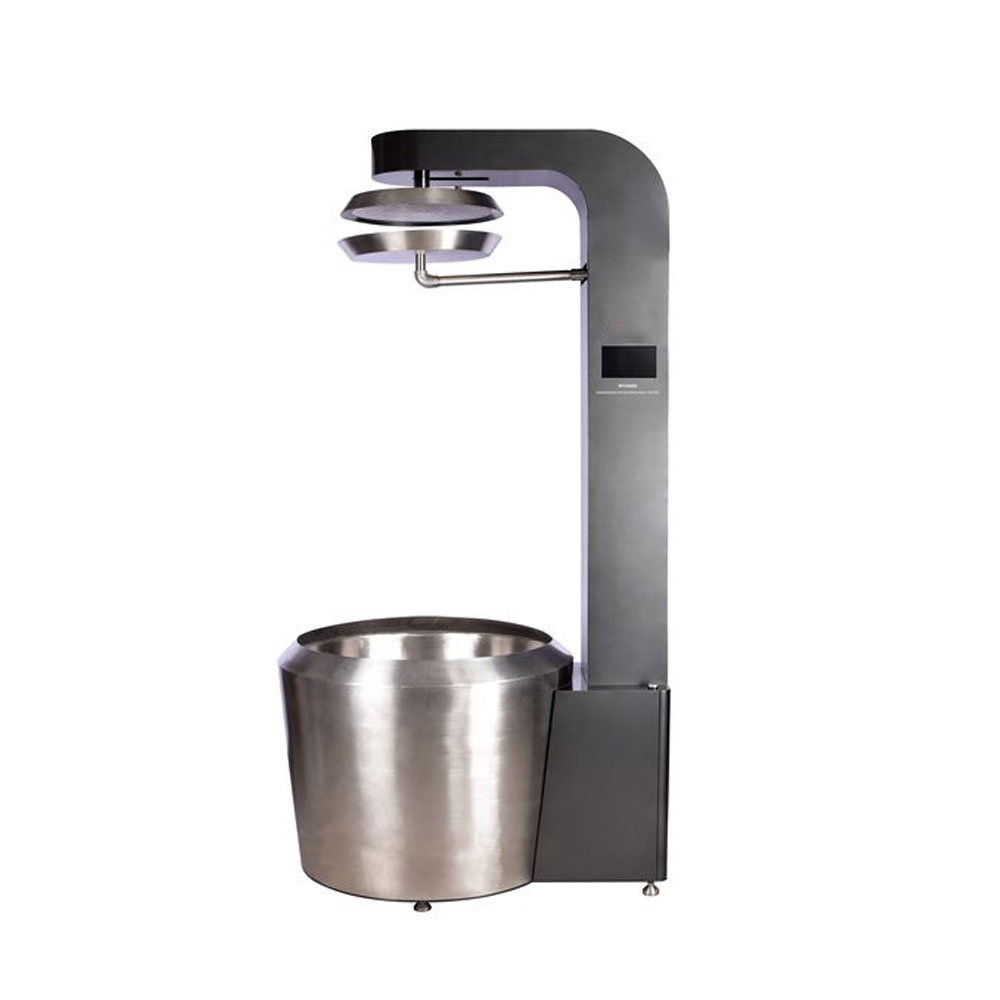

Bundesmann Water Repellency Tester

The Bundesmann Water Repellency Tester measures the water resistance of fabrics under simulated rainfall and dynamic motion. It evaluates how much water penetrates through the fabric and how much it absorbs during testing. The tester features automatic flow rate control, internal water recycling, and wiper speed, and specimen rotation. Designed for accuracy and repeatability, it provides reliable performance for outdoor apparel, coated textiles, raincoats, and diving suits. With compliance to ISO 9865, DIN EN 29865, GB/T 14577, and BS EN 29865, this machine delivers professional-grade testing for textile manufacturers and research laboratories.

Product Advantages

• Flow rate automatic control.
• Testing water internal recycling.
• The flow rate, specimen rack rotation speed, wipe rotation speed can be set in the touchscreen.
• An external temperature-controlled water supply device can be connected.

Testing Scopes

Outdoor sportswear, coated fabrics, raincoats, diving suits, etc.

Specification

1. Nozzles distributed area: 1300 ± 6.5 cm2 (Dia. 406±2mm), 300 nozzles equally distributed over a circular horizontal surface.
2. Number of Nozzles: 300pcs
3. Water Drop Diameter: Approximately 4mm
4. The vertical distance between the drop former and the center of the specimen surface: 1500mm ± 7.5mm
5. Number of Test Cups: 4 units
6. Test Cup Carrier Rotation Speed: 6rpm ± 0.5rpm
7. Wiper Assembly Rotation Speed: 20rpm ± 0.5rpm
8. Wiper Assembly Rotation Angle: 100? ± 1.0 ?
9. The Force the Wiper Assembly Pressed Against the Underside of the Specimen: Approximately 250cN
10. The length of the Wiper Arm: 48mm
11. The Width of the Wiper Arm: 5mm
12. The Outer Diameter of the Test Cup: 100 ± 0.05mm
13. The Exposed Area of the Clamped Specimen: 80cm²
14. The Air Vent Diameter of the Test Cup: 7 ± 1mm
15. The Angle the Centerline of Test Cup is Inclined from the Vertical: 15 ± 1.0°
16. The Flow Rate of the Water Drop (each test cup receive water within a specified time): (200ml ± 10ml)/2.5min.
17. Dimensions of the Main Machine: 750(L)×750(W)×2100(H)mm
18. Weight of the Main Machine: Approximately 235kg
19. Power: AC 220V，50/60Hz

The Specification of the Centrifuge:

1. Rotation Speed: 700rpm
2. The Time Required to Attain the Speed of 700rpm from 0 and Vice Versa: Between 1s and 2s
3. Mounting Surface Diameter: 175 ± 0.1mm
4. The Number of the Ribs on the Surface of the Disc: 50 ribs
5. The Height of the Ribs: 1 ± 0.1 mm
6. The Length of the Four Steel Pins: 6 ± 0.5mm
7. The Distance from the Center of the Disc to the Steel Pin: 60mm;
8. The Total Mass of the Disc and Shaft: 410 ± 2g
9. Dimensions of the Main Machine: 300(L)×420(W)×460(H)mm
10. Weight of the Main Machine: Approximately 23kg
11. Power: AC 220V，50/60Hz

Testing Standards

Why Choose Bundesmann Water Repellency Tester?

Choose the Bundesmann Water Repellency Tester for its advanced technology and precision control. The tester uses automated flow rate regulation and recyclable water circulation to ensure stable and environmentally friendly testing. The interface lets users easily adjust parameters like nozzle flow, wiper rotation, and specimen rotation speed for consistent results. Its design accurately simulates real rain impact, allowing quick evaluation of fabric waterproofness and water absorption. The included centrifuge system measures absorbed water effectively, ensuring comprehensive analysis. Ideal for outdoor fabric, rainwear, and performance textile testing, this durable and efficient tester helps laboratories achieve international compliance and improve product quality. It combines high performance, user convenience, and sustainability in one system.
