Application

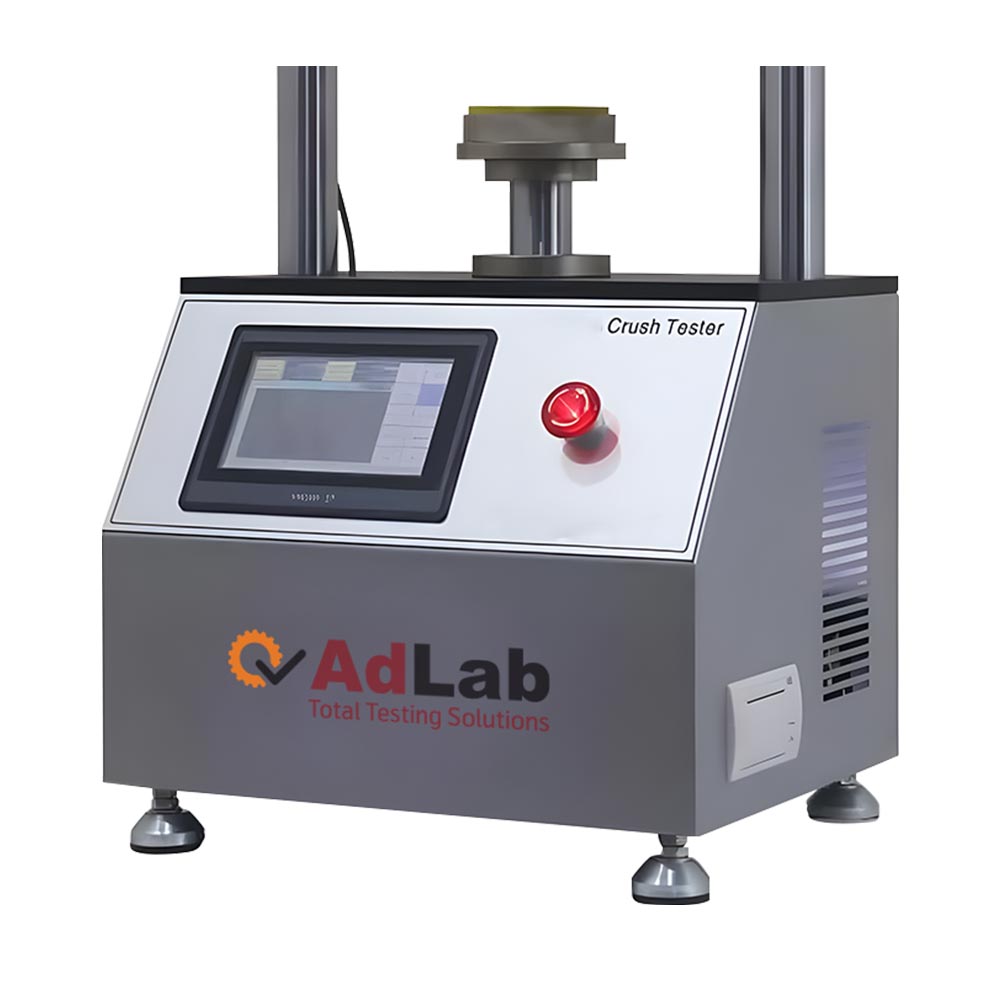

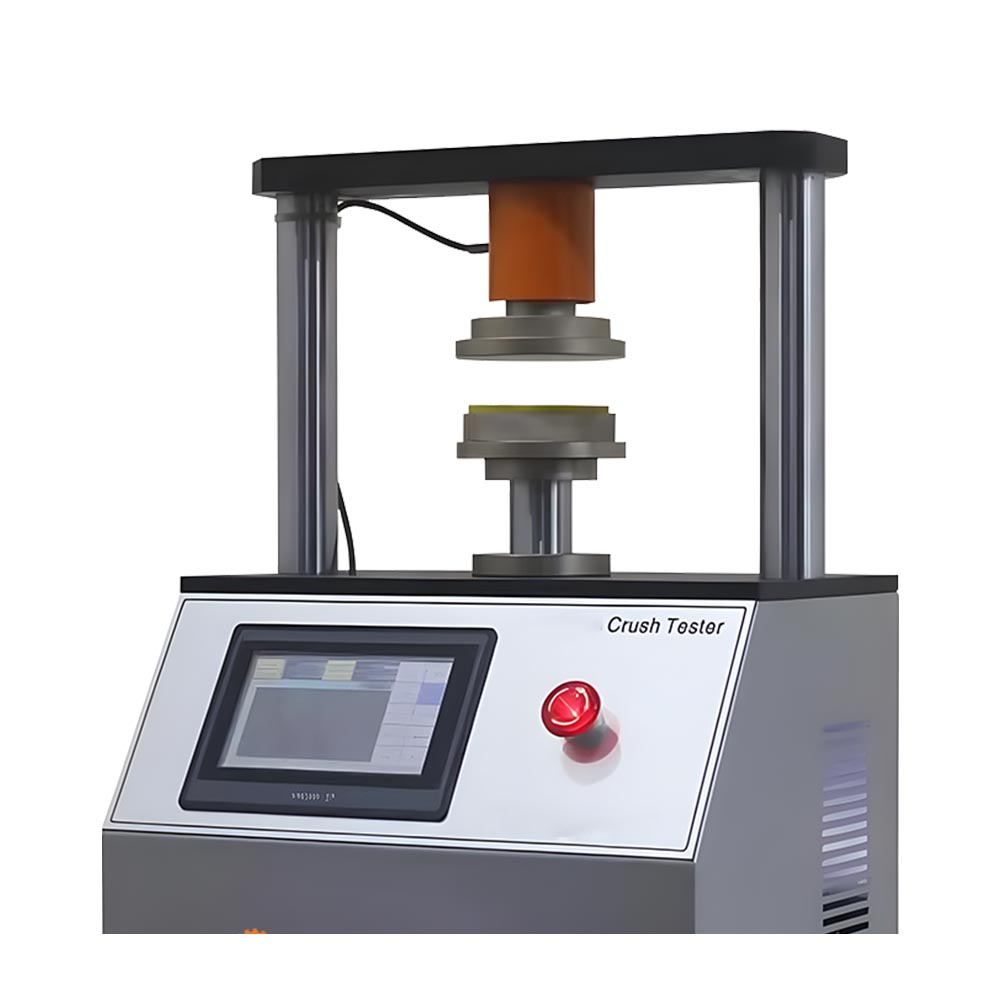

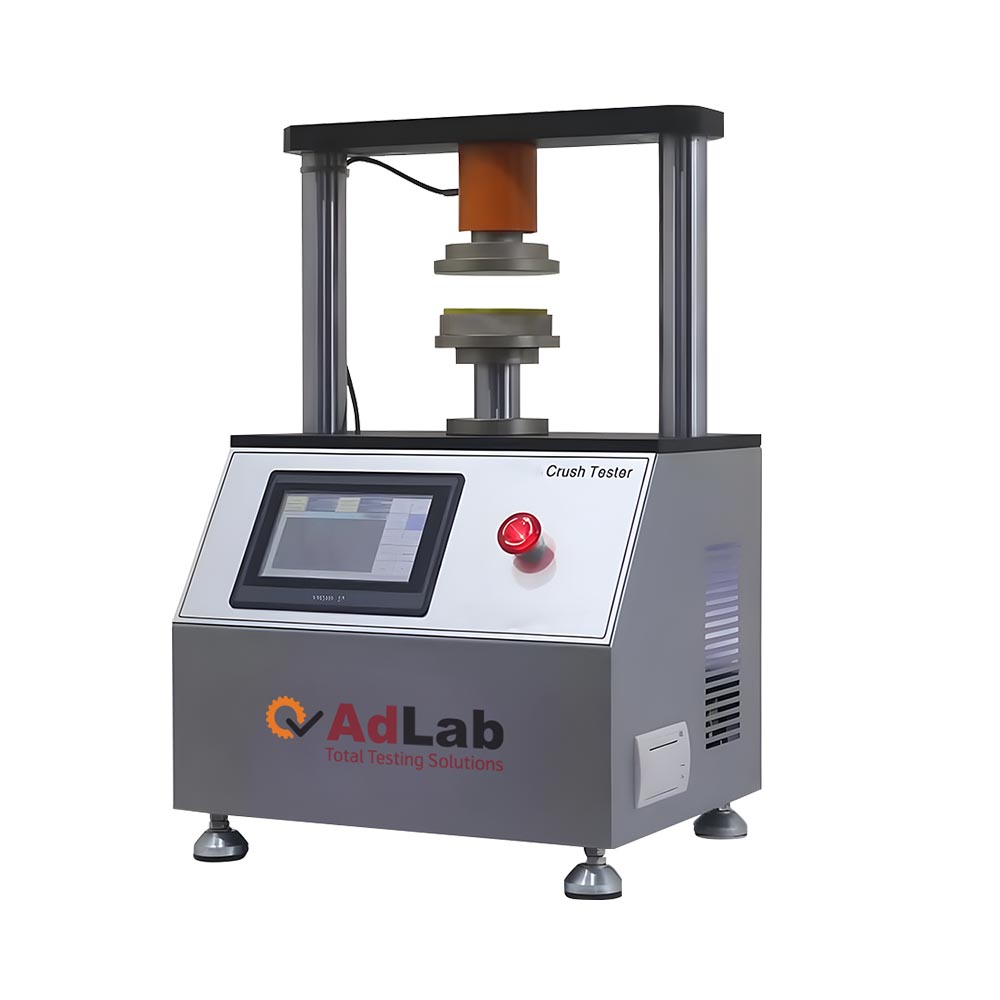

The Crush Tester is a high-precision, microprocessor-controlled device designed based on modern mechanical and ergonomic principles. Featuring a fixed upper pressure plate, it ensures stable and accurate performance for various compression strength tests including Ring Crush Test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), Pin Adhesion Test (PAT), and optional Concora Medium Test (CMT). Its robust structure, user-friendly interface, and compliance with international standards like GB/T 2679, ISO, and TAPPI make it ideal for paper mills, packaging manufacturers, and quality inspection laboratories seeking reliable and efficient material strength evaluation.

Compliant Standard

ISO 3035, ISO 3037, ISO 7263, TAPPI-T472, TAPPI T811, TAPPI T822, TAPPI T838, JIS-P8126, GB/T 2679.8, GB/T 6546, GB/T 6548, GB/T 2679.6

Feature

High speed return after finishing test.
Imported step motor with servo control adopted.
The test result can be measured, statistical and printed automatically and the data can be saved
Blue color LCD display, which can be display the crush time and loading force real time, GT-N09 type can display crush graph real time
Thermal printer, high speed and no noise.
Use the modern design idea of mechanical and electrical integration, which has compact configuration, pleasing appearance and convenient maintenance.

Key Specification

Standards: ISO 3035, ISO 3037, ISO 7263, TAPPI T472, TAPPI T811, TAPPI T822, TAPPI T838, JIS P8126, GB/T 2679.8, GB/T 6546, GB/T 6548, GB/T 2679.6
Measuring Range: 0–200kg
Compression Speed: 12.7mm/min
Resolution: 1/10,000
Accuracy: ±1%
Dimensions: 810 x 400 x 860mm
Weight: 60kg

Why Choose the Crush Tester?

The Crush Tester ensures precise crush testing with its servo motor and real-time data display. Its compliance with ISO 3035 makes it a top choice for paper and packaging durability.
