Application Field

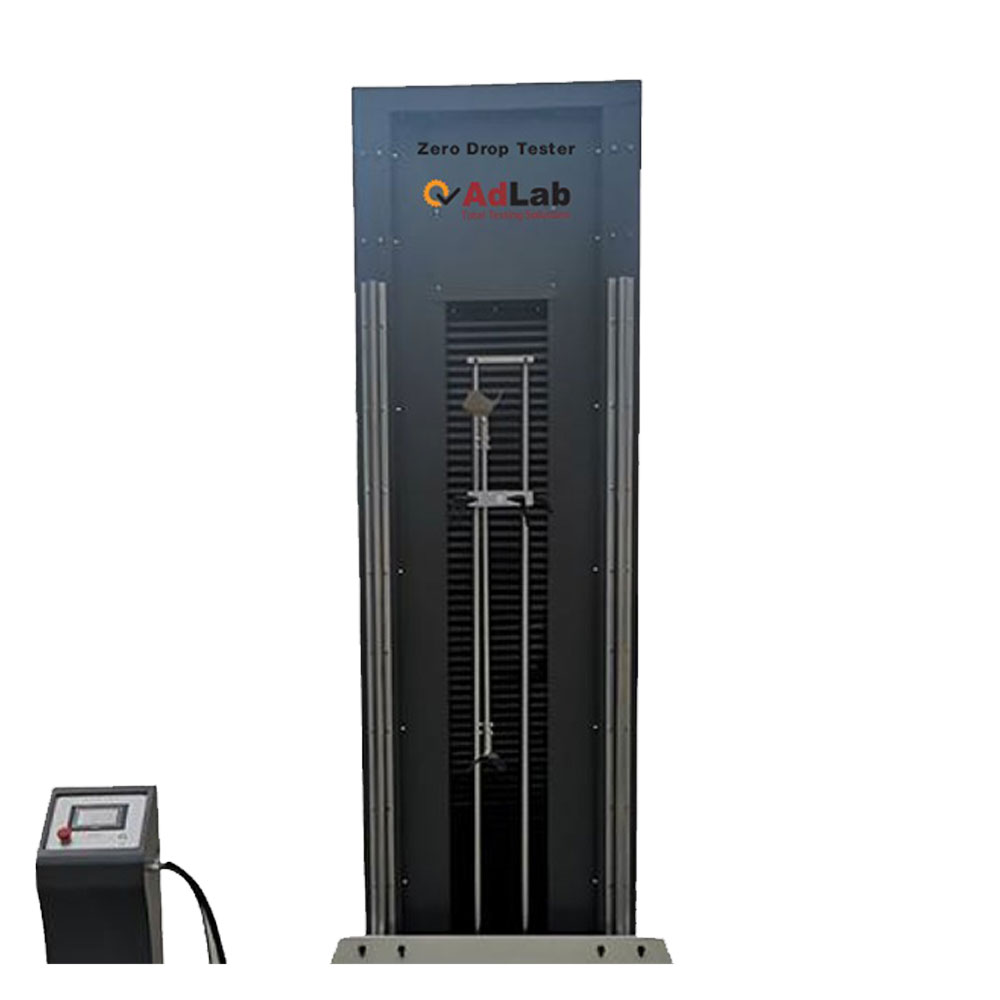

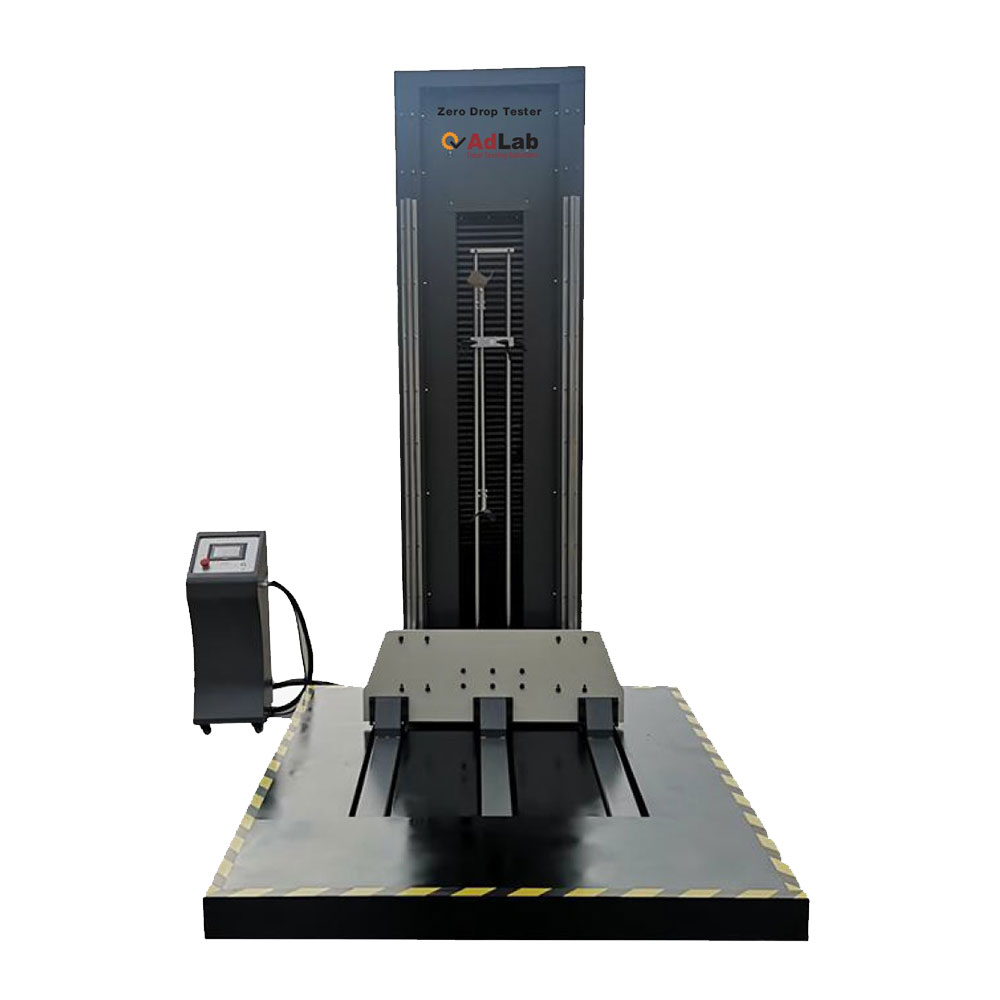

The Zero Drop Tester is designed to evaluate the impact resistance and structural integrity of large packaging during transportation, handling, and loading/unloading processes. It features a unique “E”-shaped fork that rapidly retracts to allow the test item to drop freely from a set height, simulating real-world drop conditions such as flat surface, edge, and corner impacts. Controlled by an LCD panel, the machine enables precise drop height settings and fully automated testing. A high-efficiency shock absorber on the base ensures accurate results by minimizing rebound or secondary impact. Ideal for validating packaging design, the tester ensures enhanced product protection throughout the logistics chain.

Control principle

The design of free-falling body, edge, Angle and surface is completed by using microcomputer imported electrical rational design.

Features of the Zero Drop Tester

Precise Drop Testing: The Zero Drop Tester offers adjustable drop heights from 0-1500mm with a touch screen controller, ensuring accuracy for up to 100kg specimens.
Advanced Design: Features a motor-driven “E” fork with pneumatic acceleration and a 45# steel impact plate for reliable shock testing.
Safety and Stability: Equipped with inductive protective devices and a high-efficiency shock absorber, supporting a 1000x1000x1000mm max specimen size.
Standard Compliance: Meets GB/T 1019-2008 for standardized drop testing of packaging.

Standard

GB/T1019-2008

Technical Parameters

Standard: GB/T 1019-2008
Maximum Specimen Weight: 0–100kg (customizable)
Drop Height: 0–1500mm
Maximum Specimen Size: 1000 x 1000 x 1000mm
Testing Aspect: Face, edge, angle
Working Power Supply: 380V/50Hz
Driving Mode: Motor drive
Protective Device: Upper and lower inductive protection
Impact Sheet Material: 45# steel, solid plate
Height Display: Touch screen control
Drop Height Mark: Benchmarking scale
Bracket Structure: 45# steel, square welded
Transmission Mode: Taiwan straight slide, 45# chromium steel
Accelerating Device: Pneumatic type
Drop Mode: Electromagnetic and pneumatic integrated
Weight: 1500kg
Power: 5kW

Why Choose the Drop Tester?

The Zero Drop Tester ensures accurate packaging impact testing with its adjustable height and robust “E” fork design. Its compliance with GB/T 1019-2008 makes it a top choice for large-scale drop testing.
