Instruments Use

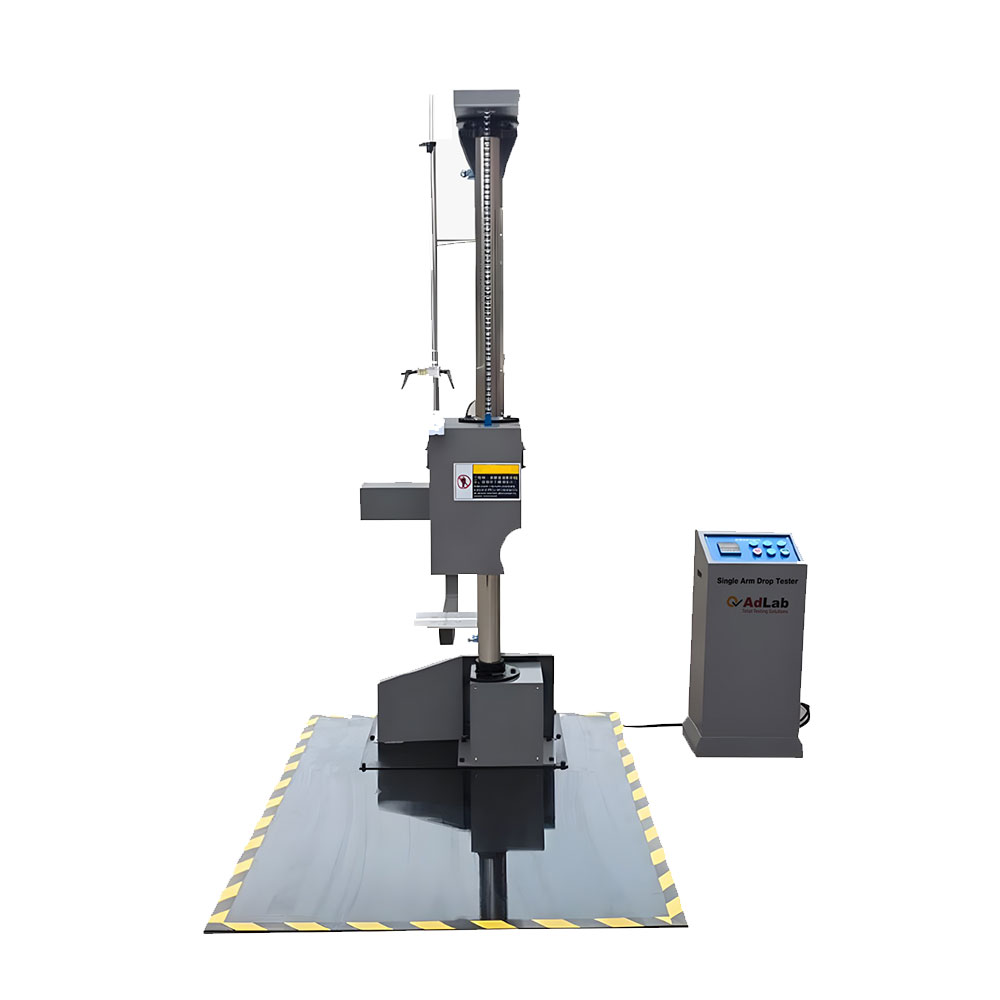

Single Arm Drop Tester This machine is specially used to test the damage of product packaging by falling, and to evaluate the impact strength during transportation and handling process.

Meet the Standard

ISO2248 JISZ0202-87 GB/T4857.5-92

Instruments Features

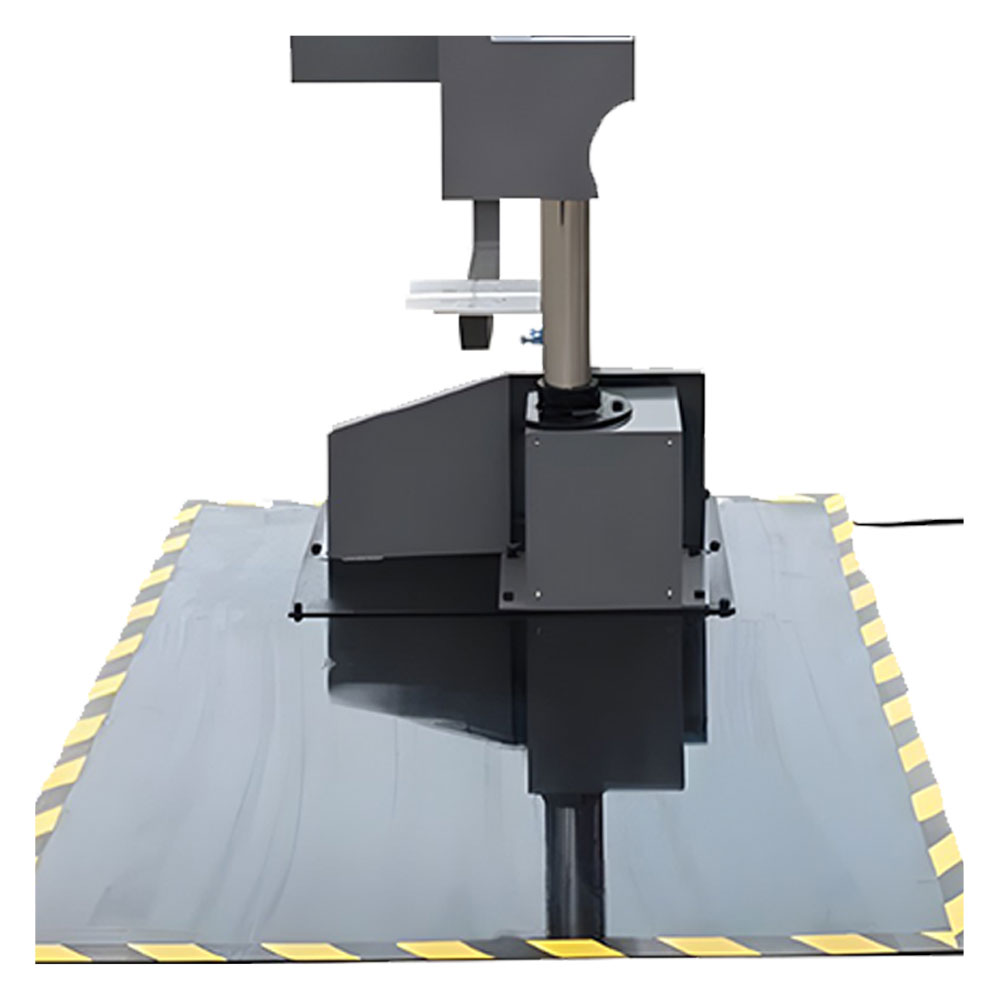

Single-arm drop testing machine can be free drop test on the surface, Angle and edge of the package, equipped with digital height display instrument and the use of decoder for height tracking, so that the product drop height can be accurately given, and the preset drop height error is not more than 2% or 10MM. The machine adopts single-arm double-column structure, with electric reset, electronic control drops and electric lifting device, easy to use; The unique buffer device greatly improves the service life, stability and safety of the machine. Single arm setting for easy placement of products.

Main Technical Parameters

Standards: ISO 2248, JIS Z0202-87, GB/T 4857.5-92
Drop Height: 300–1500mm (adjustable)
Maximum Specimen Weight: 0–80kg
Bottom Plate Thickness: 10mm (solid iron plate)
Maximum Specimen Size: 800 x 800 x 1000mm (up to 2500mm)
Impact Panel Size: 1700 x 1200mm
Drop Height Error: ±10mm (1% accuracy)
Test Bench Dimensions: Approx. 1700 x 1200 x 2315mm
Net Weight: Approx. 300kg
Test Method: Face, angle, and edge drop
Control Mode: Electric
Panel Parallel Error: ±1 degree
Angle Error: ±1 degree (falling surface to level)
Power Supply: AC 380V, 50Hz
Power: 1.85kW

Environment Requirements

Temperature: 5_~ +28 [1] (average temperature within 24 hours ≤28°C)
Relative humidity: _85%RH
Power supply conditions Three-phase four-wire + PGND cable,
Voltage range: AC (380±38) V

Why Choose the Single Arm Drop Tester?

The Single Arm Drop Tester ensures accurate drop testing with its electric controls and buffer system. Its compliance with ISO 2248 and robust design make it a top choice for packaging durability.
