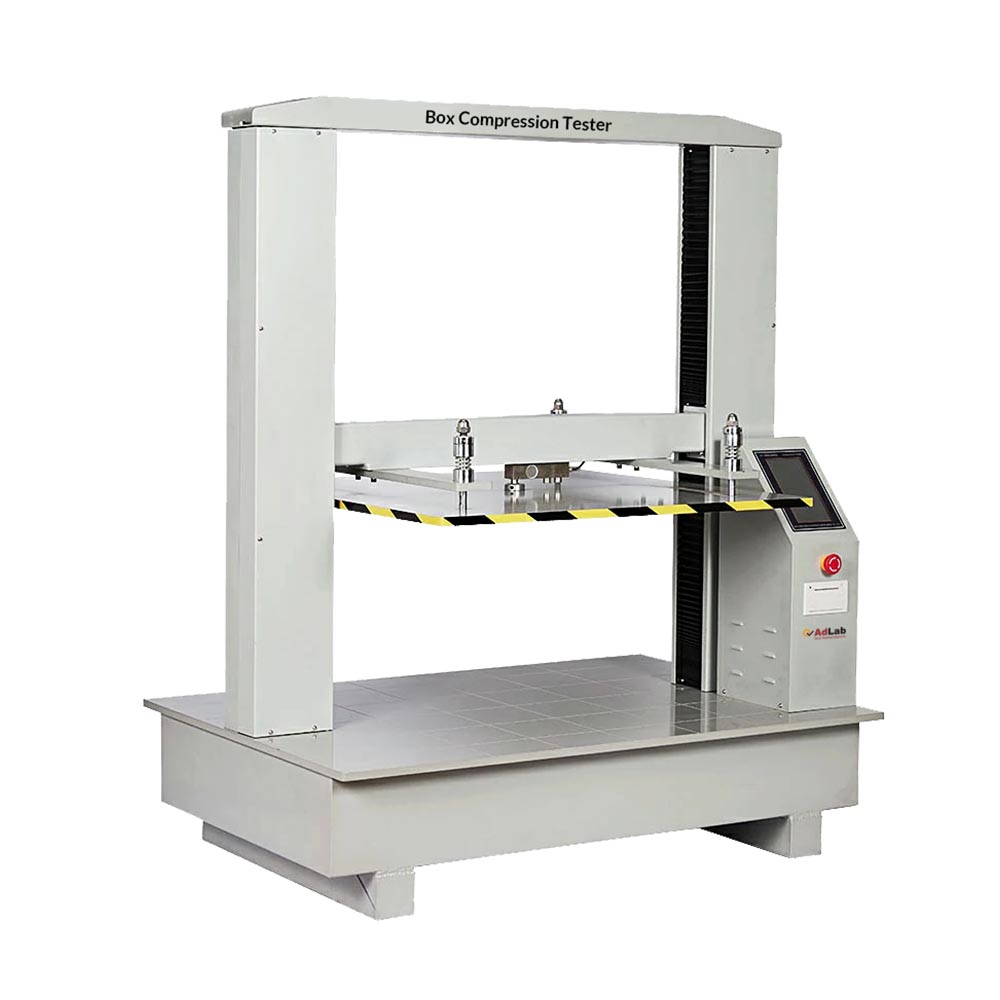

Box Compression Tester
The Box Compression Tester measures strength per GB/T 4857.4, with a 50kN max range.
Key Features
- 0-50kN range.
- 1N resolution.
- 7-inch touch screen.
- Customizable area.
Introduction to the Box Compression Tester
The Box Compression Tester evaluates the strength and stacking capacity of cartons and packaging per GB/T 4857.4. The Box Compression is perfect for food, beverage, and cosmetic packaging industries, testing beer crates and paper tubes per ISO 12408 for durability and design.
Application Range
- Cartons, beer crates, paper tubes, paper cups, color boxes, milk crates, etc.;
- Food and beverage instant noodle packaging, cosmetic packaging, beer packaging, grain and oil packaging, etc.
Product Function
- Strength test
- Stacking strength test
- Constant value test
Product Features

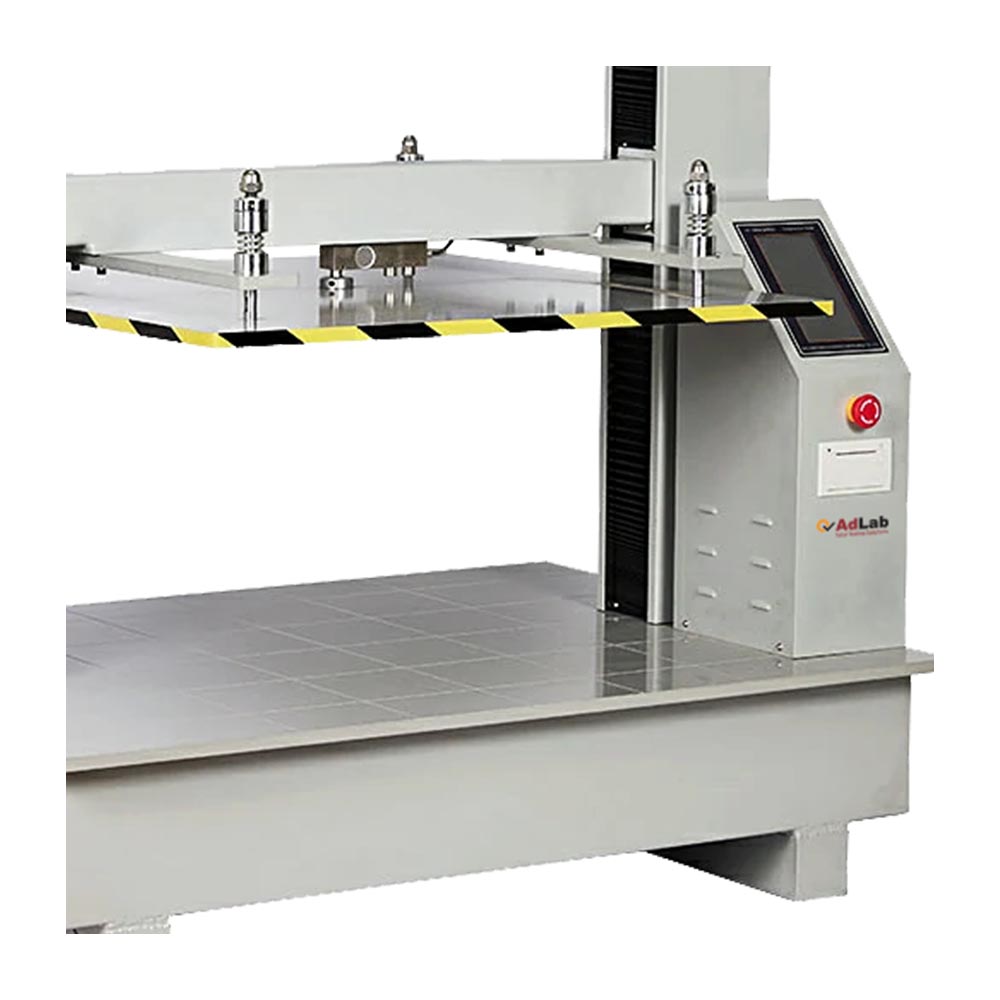

- Double precision ball screws and double precision guide rods, stable operation and precise displacement
- ARM processor, 24-bit imported analog-to-digital converter, improve the response speed and test accuracy of the instrument.
- Real-time display of the pressure change curve during the test.
- Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
- Communication with computer software (purchase separately)
Executive Standard
GB/T 4857.4, GB/T 4857.3, QB/T 1048, ISO 12408, ISO 2234
Technical Parameter
| Parameter item | Technical index |
| Power Supply/Motor | 10KN ：AC100-240V, 50Hz/60Hz 400W /DC stepper motor (Chinese brand)
20KN：AC220V±10% 50Hz 1kW /AC servo motor (Panasonic) 30KN：AC220V±10% 50Hz 1kW /AC servo motor (Panasonic) 50KN：AC220V±10% 50Hz 1.2kW /AC servo motor (Panasonic) |
| Working Environment | Temperature (10~35)℃, Humidity≤ 85％ |
| Display | 7 Inch color touch screen |
| Measuring range | (0～10) kN/(0～20) kN/(0～30)kN/(0～50)kN |
| Resolution | 1N |
| Indication accuracy | ±1%(Range 5%～100%) |
| Measured Area | 600×600mm/800×800mm/1000×1000mm/1200×1200mm customizable |
| Work Capacity | 600mm/800mm/1000mm/1200mm/1500mm customizable |
| Press Speed | 10mm/min (1～99)mm/min(Arbitrary adjustment) |
| Parallelism Between Plates | <2:1000 (Example: pressure plate 1000×1000mm, <2mm) |
| Return Speed | (1～120) mm/min (Stepper motor) or (1～250) mm/min (AC servo motor) |
| Built-in thermal printer | |
| Communication Interface | RS232(Default) (USB, WIFI optional) |
| Dimension | According to actual condition |
Why Choose the Box Compression Tester?
The Box Compression ensures accurate strength testing with its precision screws and real-time data display. Its compliance with ISO 12408 makes it a top choice for packaging industries.
