Application

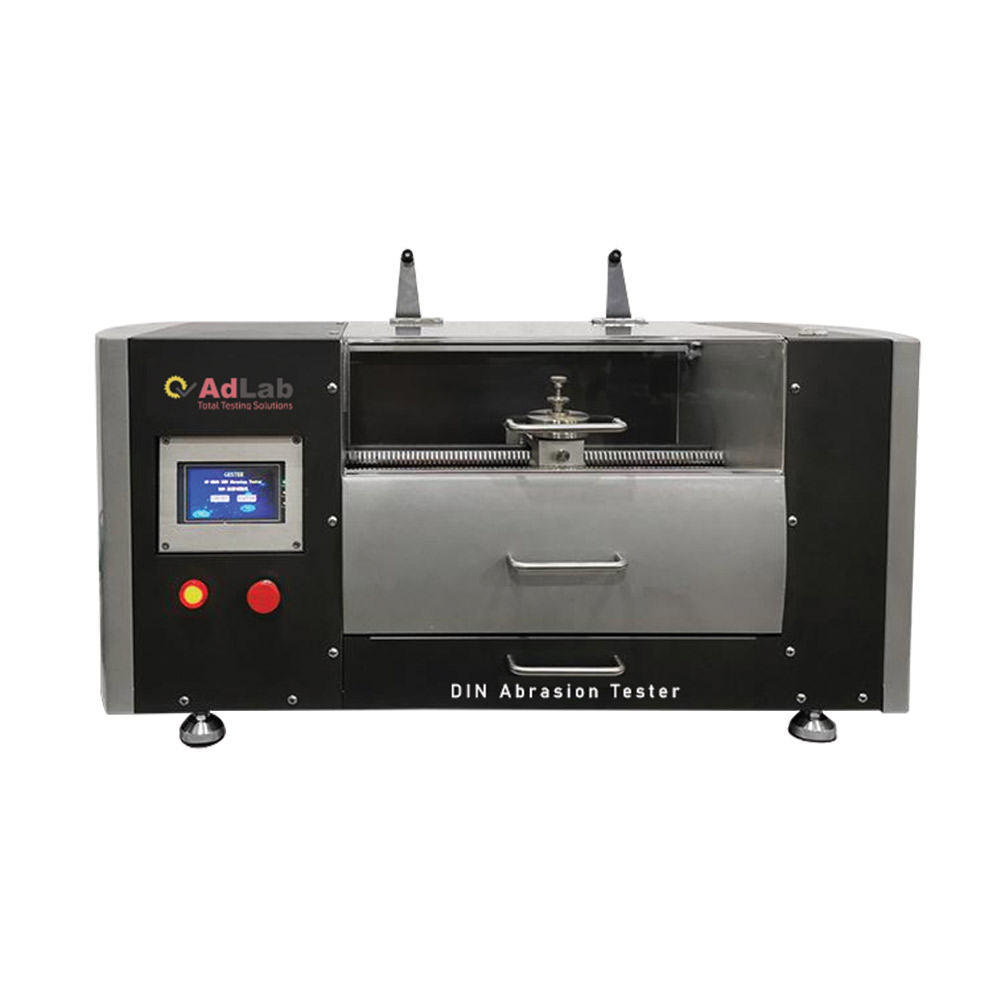

DIN Abrasion Tester, It is used to determine wear performance test of materials like elastic material, rubber, fires, conveyor belts, conveyor belts, shoe soles.

Key Features of the DIN Abrasion Tester

Precise Wear Testing: The DIN Abrasion Tester features a 40±1rpm wear wheel and a 3° inclination angle with #60 grit sandpaper for accurate abrasion measurement.

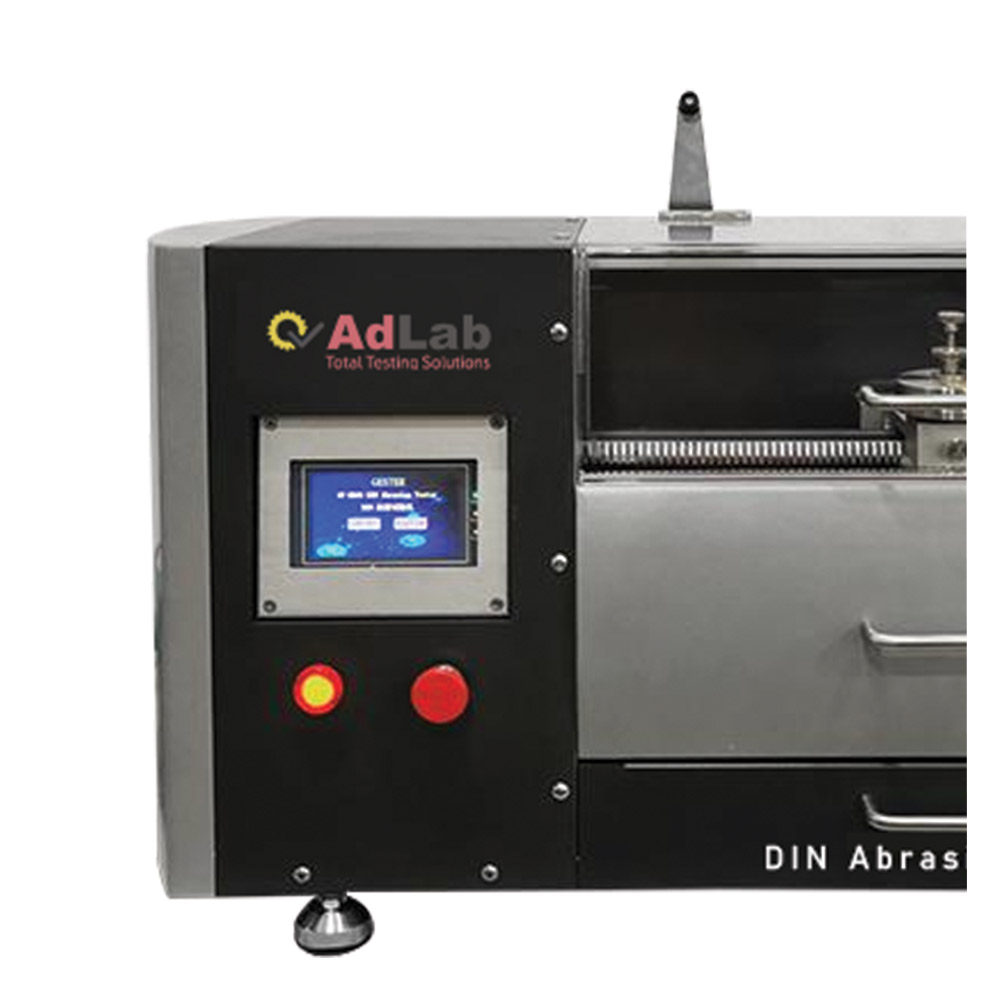

Automated Operation: Offers touch-screen control with digital counting and auto-stop, plus a vacuum suction port to clean dust during tests.
Durable Design: Available in 1 or 3 test positions with a 460mm roller length, supporting specimens of Ø16.2mm x 6-10mm.
Standard Compliance: Meets DIN-53516, ISO 4649, ASTM D5963, and more for reliable material testing.

Principle

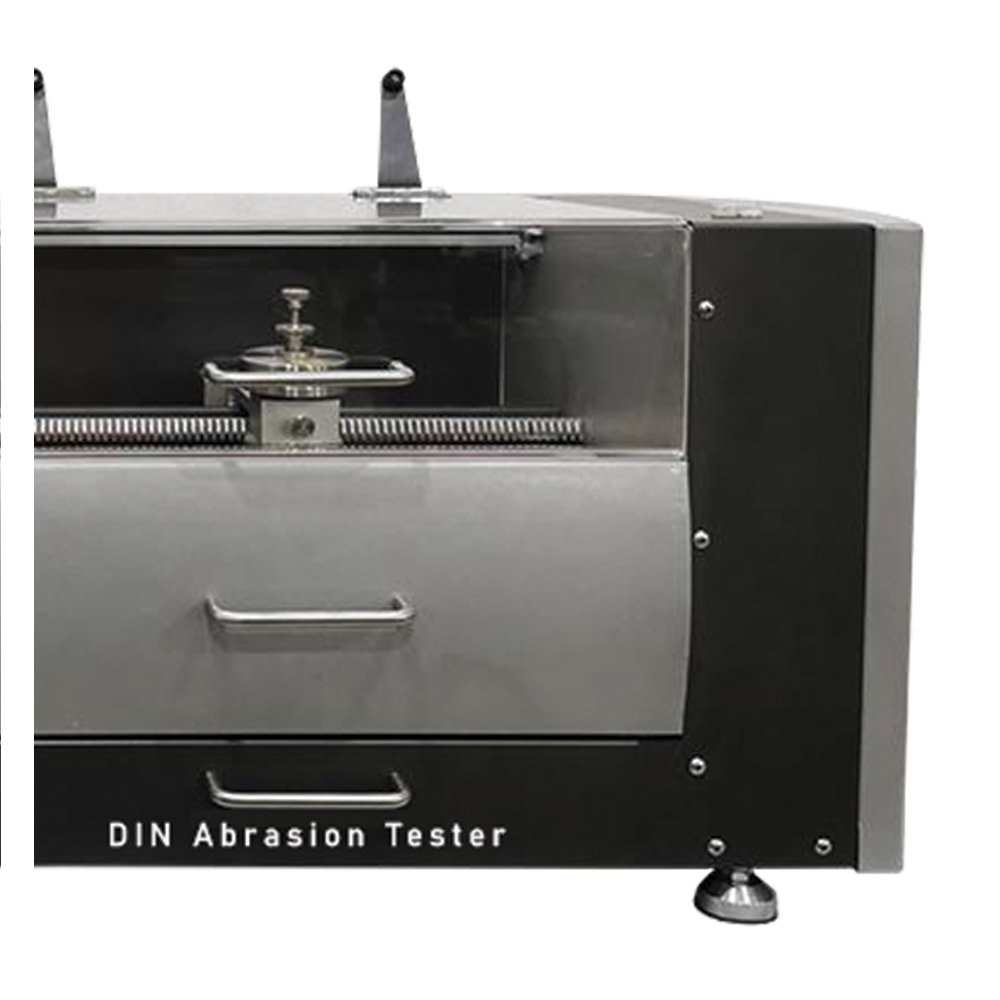

Under certain touching pressure and contact area, sample becomes a certain angle with sandpaper and determine its abrasion performance caused by a certain level of sandpaper. Pack sandpaper outside the surface of roller. The sample is pressed against the roller with sandpaper, which makes sample lateral moving along roller. Abrasion is caused under the other side of cylindrical specimens measuring the mass loss of sample value and count the wear amount by sample density.

Key Specification

Standards: DIN-53516, JIS-K6369, JIS K6264-2, GB/T 20991 section 8.3, GB/T 20265, GB20266-2006, GB/T 9867, EN ISO 20344-2020 section 8.4, AS/NZS 2210.2 section 8.3, ISO 4649, BS903-A9 Method A, ASTM D5963, ISO20871, QB/T2884, SATRA TM 193, SATRA TM174, EN 12770
Test Positions: 1 or 3
Control Mode: Touch screen controlled
Diameter of Wear Wheel: 150mm
Specimen Dimension: Ø16.2 mm x 6-10 mm
Specimen Moving Speed: 4.2 mm/r
Weights: Holder 2.5N, optional 2.5N or 5N
Wear Wheel Speed: 40±1rpm
Inclination Angle: 3°
Grit Size of Sandpaper: #60
Roller Length: 460mm
Wear Stroke: 40m
Power Supply: 1∮ AC 220V 50/60Hz 3A

Accessories

Standard Accessories

2.5N weights – 1 Set
5N weights – 1 Set
P60# standard abrasive paper – 1 pc
Standard cutting die – 1 pc
Metal blob (Grinding head) – 1 pc
2mm Gauge – 1 pc
Power line – 1 pc

Optional Accessories

Electronic balance (210g, accuracy 1mg)
Standard rubber

Why Choose the DIN Abrasion Tester?

The DIN Abrasion Tester is a top choice for precise wear testing, featuring automated touch-screen control with digital counting and auto-stop for consistent results. Its vacuum suction port cleans dust during tests, enhancing machine longevity and maintaining a clean environment. Available in 1-position or 3-position models, it suits various throughput needs with a 150mm wear wheel at 40±1rpm and a 3° inclination angle, meeting standards like DIN-53516 and ISO 4649. Adjustable weights (2.5N, 5N) and a 40m wear stroke offer flexibility, while the durable, baked-paint body ensures easy maintenance. Trusted for rubber, tire, and sole testing, its compliance with global standards makes it an efficient, reliable solution for quality control.
