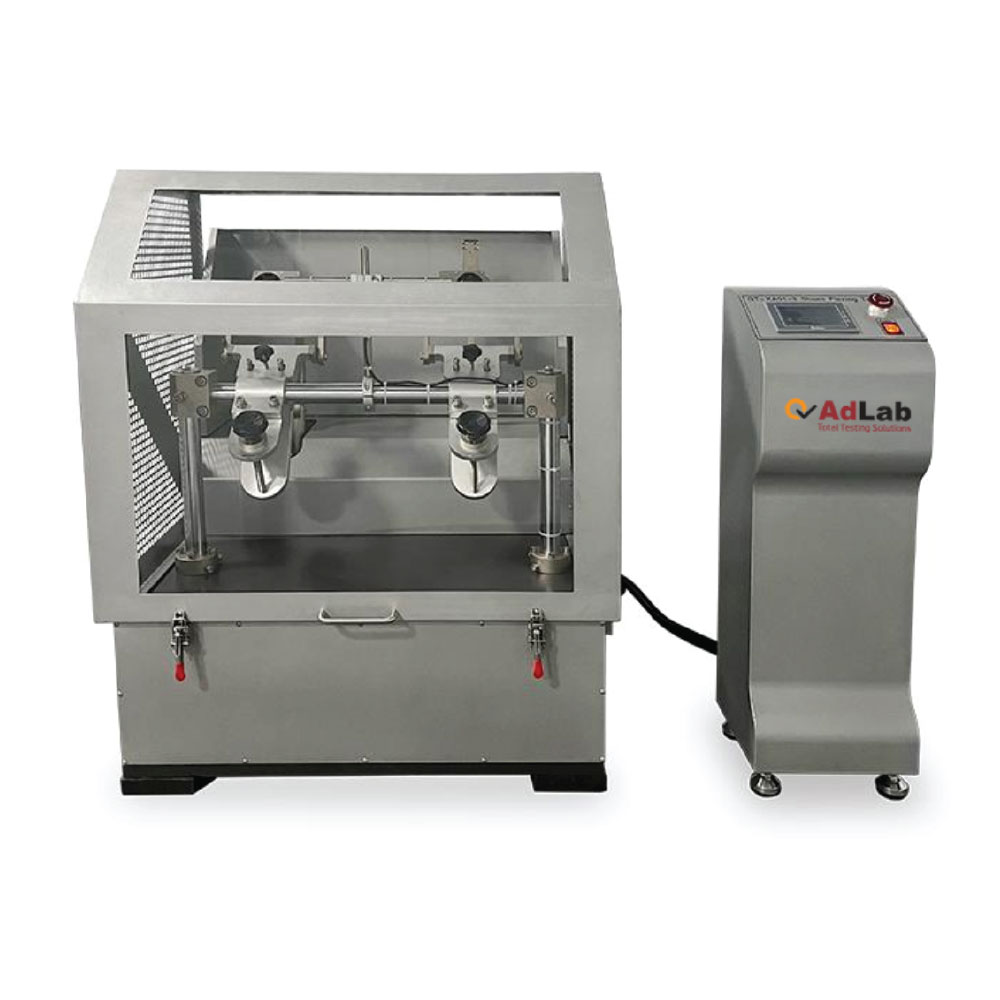

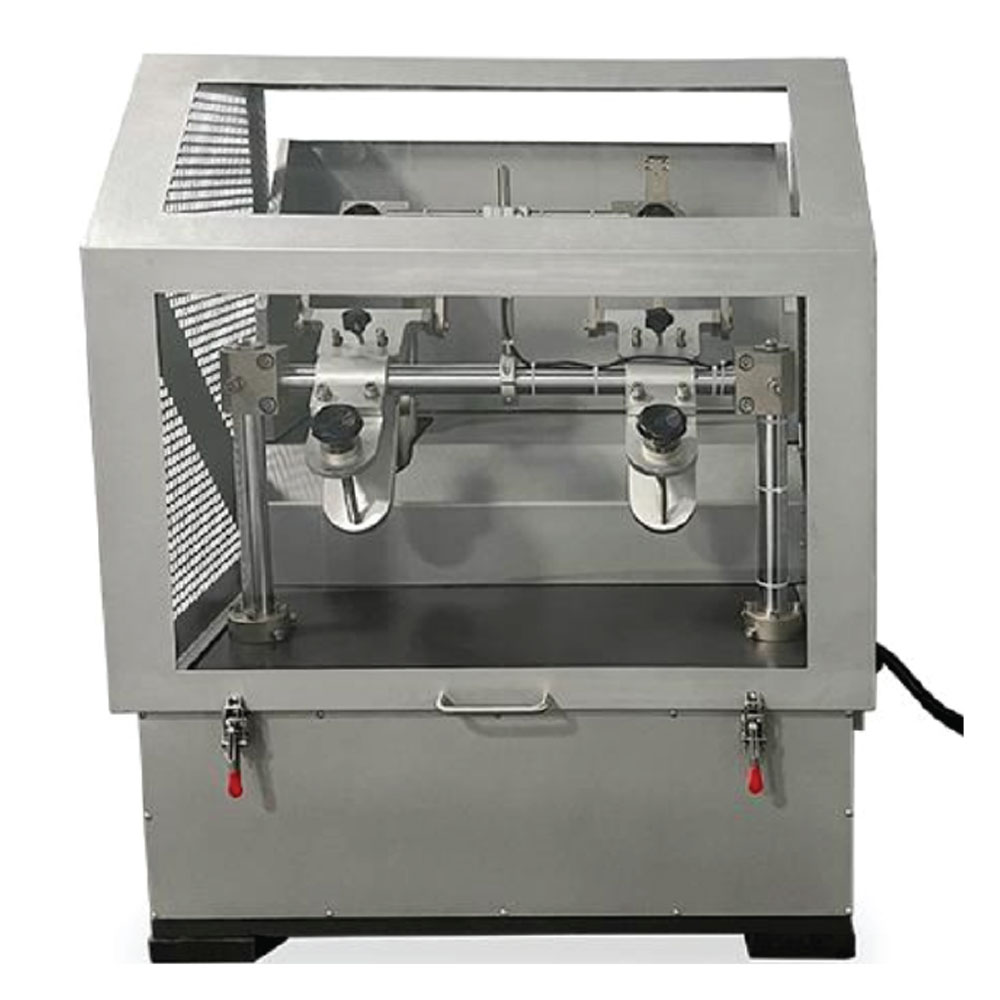

Shoes Flexing Tester

Introduction to the Shoes Flexing Tester

The Shoes Flexing Tester evaluates the flexing resistance of whole shoes or soles per GB/T 3903.1, flexing samples at 0-55 degrees. The Shoes Flexing is perfect for manufacturers assessing cracking and upper changes in shoes or soles per ISO 24266 Method B, ensuring quality under repeated flexing at room temperature.

Key Features

• Adjustable Flexing: The Tester offers a 0-55 degree bending angle and 230±10 rpm speed, adjustable via touch screen control.
• Automated Operation: Features a counter with auto-stop at set flex cycles, enhancing efficiency and safety with a protective shield.
• Temperature Control: Includes fans on each clamp to prevent heat-related changes during testing, supporting up to 4 test positions.
• Standard Compliance: Meets GB/T 3903.1, ISO 24266 Method B, and HG/T 2871-2022 Method A for reliable flexing tests.

Technical Specifications

• Standards: GB/T 3903.1, ISO 24266 Method B, HG/T 2871-2022 Method A
• Test Positions: 2 or 4
• Bending Angle: 0–55 degrees
• Counter: Touch screen control
• Bending Speed: 230±10 rpm (adjustable)
• Power Supply: 1∮ AC 220V 50/60Hz 8A
• Dimensions: 95 x 88 x 140 cm (2 positions), 209 x 88 x 140 cm (4 positions)
• Weight: 420 kg (2 positions), 750 kg (4 positions)

Why Choose the Shoes Flexing Tester?

The Shoes Flexing ensures precise flexing resistance testing with its adjustable speed and safety features. Its compliance with international standards makes it a top choice for footwear manufacturers.
