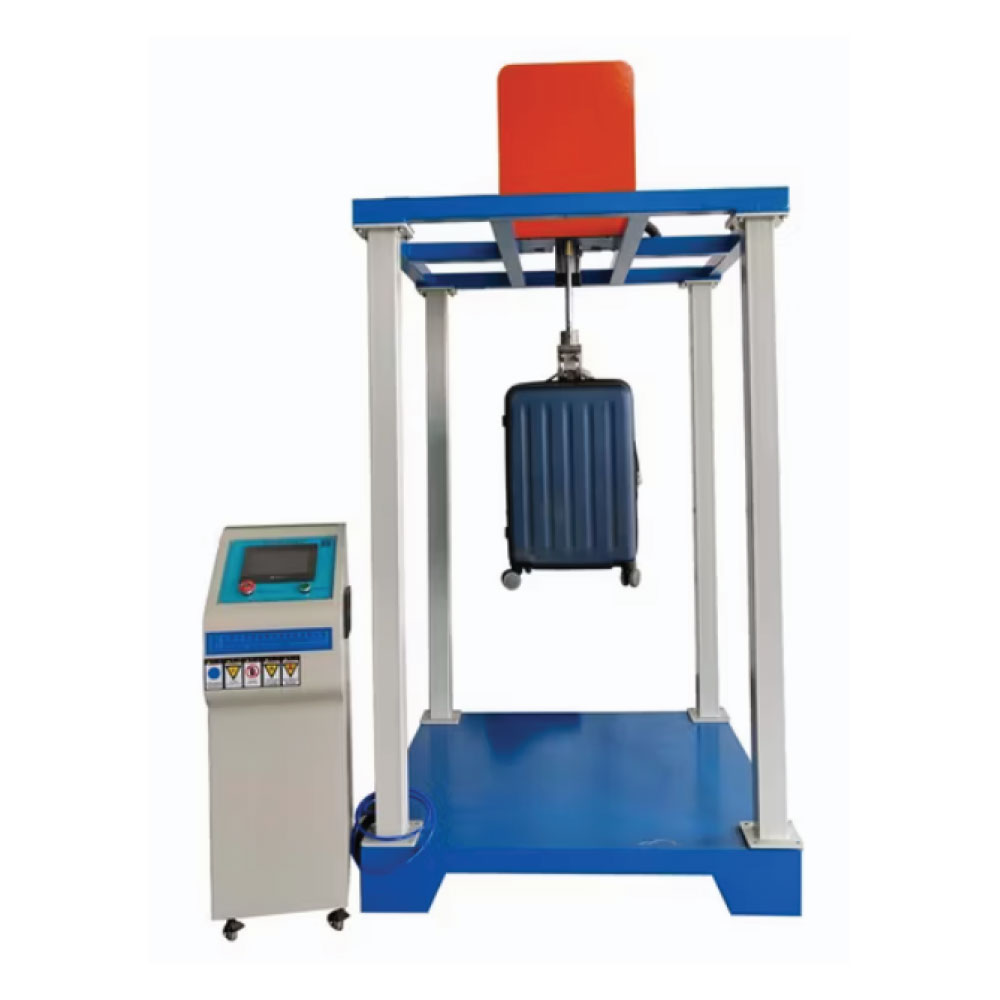

Luggage Hand Jerk Tester

The Luggage Hand Jerk Tester tests handle strength with a 150mm stroke, meeting QB/T2155-2018-5.5.4 standards.

Key Features

150±5 mm stroke.
20 times/min speed.
100kg max load.
Touch screen control.

Description

Introduction to the Luggage Hand Jerk Tester

The Luggage Hand Jerk Tester assesses the strength of suitcase handles, buckles, and structures per QB/T1333-2018-5.3.1.3, using a 20 times/min impact test. The Jerk Tester is perfect for manufacturers evaluating travel bags and suitcases under a 0-4 inch stroke with specified loads per QB/T2155-2018-5.5.4. Its results guide product enhancements.

Key Features

Precise Impact Testing: The Jerk Tester features a 150±5 mm stroke and 17.54±0.88 N/mm spring for accurate impact simulation.
Advanced Control: Uses PLC with a touch screen to display speed, test times, and modes, including impact and pull rod lift tests.
Robust Design: Supports a 100kg max load with a 150x200x2900 mm frame and weighs 200kg for stable operation.
Standard Compliance: Meets QB/T1333-2018-5.3.1.3, QB/T2155-2018-5.5.4, and QB/T5082-2017-5.5.1.

Standards

QB/T1333-2018-5.3.1.3, QB/T2155-2018-5.5.4, QB/T5082-2017-5.5.1

Technical Specifications

Impact Device: (8.1 ± 0.2) kg, 150 ± 5 mm stroke
Impact Height: 0–200mm (adjustable)
Oscillation Mode: Spring type, 17.54 ± 0.88 N/mm
Control Mode: PLC + touch screen
Maximum Load: 100kg
Testing Speed: 20 times/min
Number Setting: 0–999.9 hours, auto-shutdown (power failure memory)
Software: JY5.0 test software
Safety Device: Photoelectric sensor
Weight: 200kg
Voltage: AC220V, 50Hz
Machine Size: 150 x 200 x 2900 mm
Test Fixtures: Two sets (trolley handle grips, shoulder strap clamps)

Why Choose the Luggage Hand Jerk Tester?

The Tester ensures reliable strength testing with its adjustable stroke and touch screen interface. Its compliance with industry standards makes it a top choice for luggage manufacturers.
