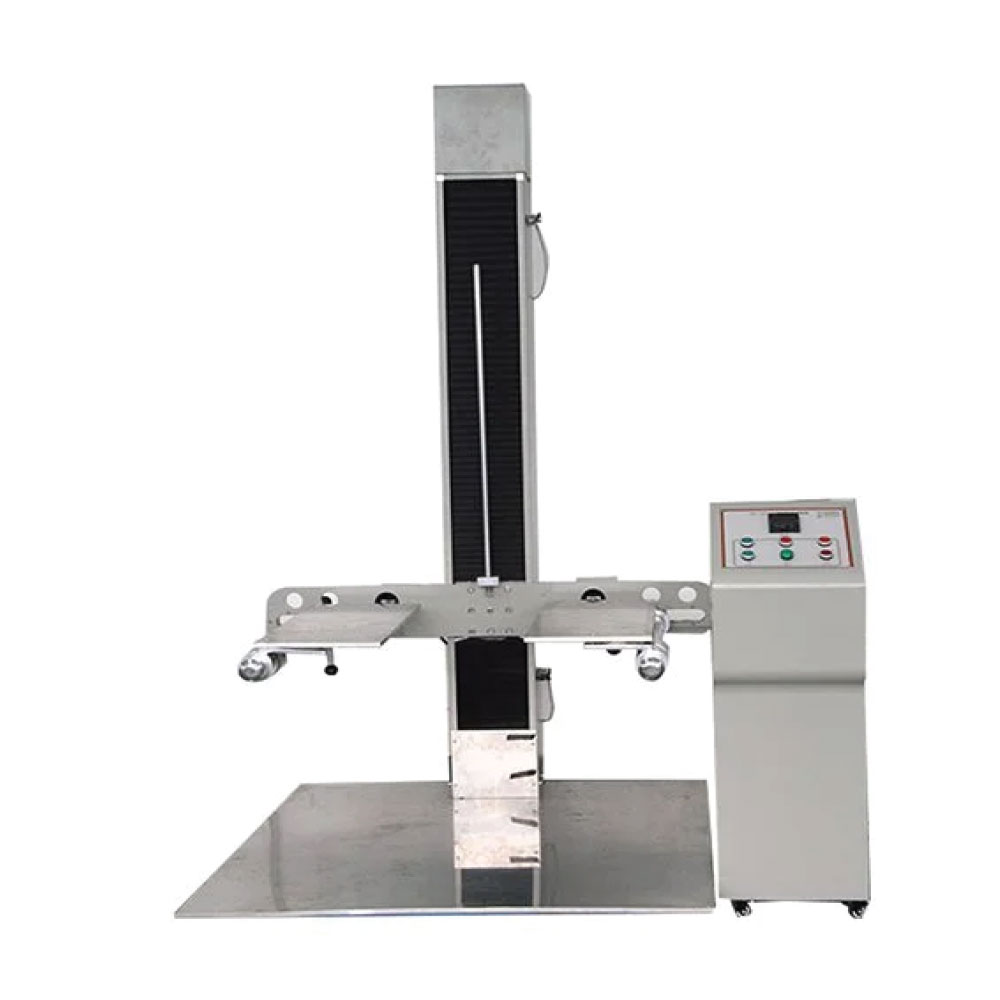

Luggage Drop Impact Testing Equipment

Introduction to the Luggage Drop Impact Testing Equipment

The Luggage Drop Impact Testing Equipment simulates drops during handling or transport to assess product damage, testing all rhombohedrons, angles, and faces per ISO 2248 and JIS Z0202-87. Essential for durability testing. The Luggage Drop is ideal for manufacturers evaluating luggage and packaged goods impact resistance. Compliant with GB/T4857.5-92, it ensures product safety during shipping and handling.

Key Features

• Precise Drop Simulation: The Luggage Drop Testing Equipment offers a 400-1500 mm drop height with a digital height indicator for accurate testing.
• Spacious Design: Features a 1200×1400 mm drop panel and supports specimens up to 1000x1000x800 mm and 60 kg weight.
• Efficient Operation: Uses electric transmission with a 1/2 HP motor and a single-wing area of 350×760 mm for smooth performance.
• Standard Compliance: Meets ISO 2248, JIS Z0202-87, and GB/T4857.5-92 for reliable impact testing.

Technical Specifications

• Standards: ISO 2248, JIS Z0202-87, GB/T4857.5-92
• Display Method: Digital height indicator (optional)
• Drop Height: 400–1500 mm
• Single-Wing Area: 350 x 760 mm
• Drop Panel Area: 1200 x 1400 mm
• Specimen Max. Size: 1000 x 1000 x 800 mm
• Specimen Max. Weight: 60 kg
• Outside Dimension: 1400 x 1200 x 2200 mm
• Control Box Size: 350 x 350 x 1100 mm
• Weight: 400 kg
• Power: 1ø, AC220V/50Hz
• Transmit Approach: Electric transmission
• Horsepower: 1/2 HP

Why Choose the Luggage Drop Testing?

The Luggage Drop Testing ensures thorough impact testing with its adjustable height and robust design. Its compliance with international standards makes it a top choice for luggage and packaging industries.
