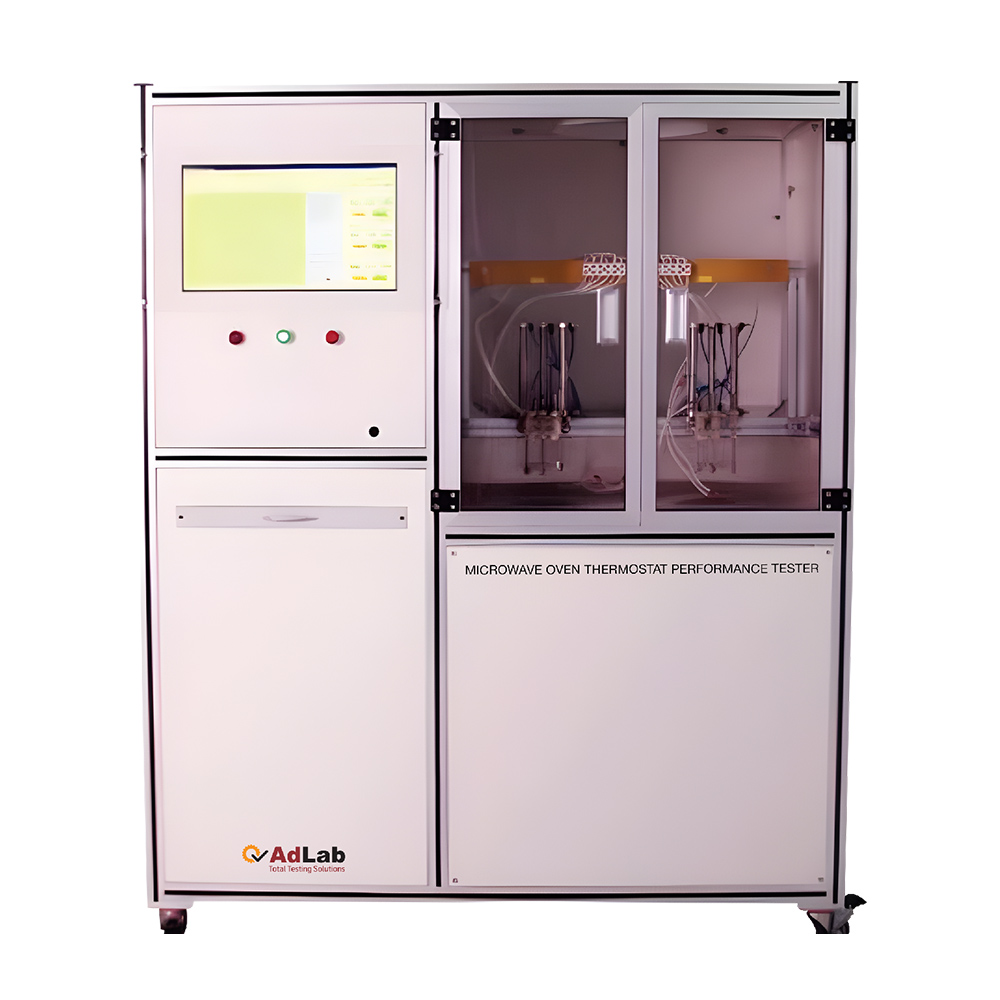

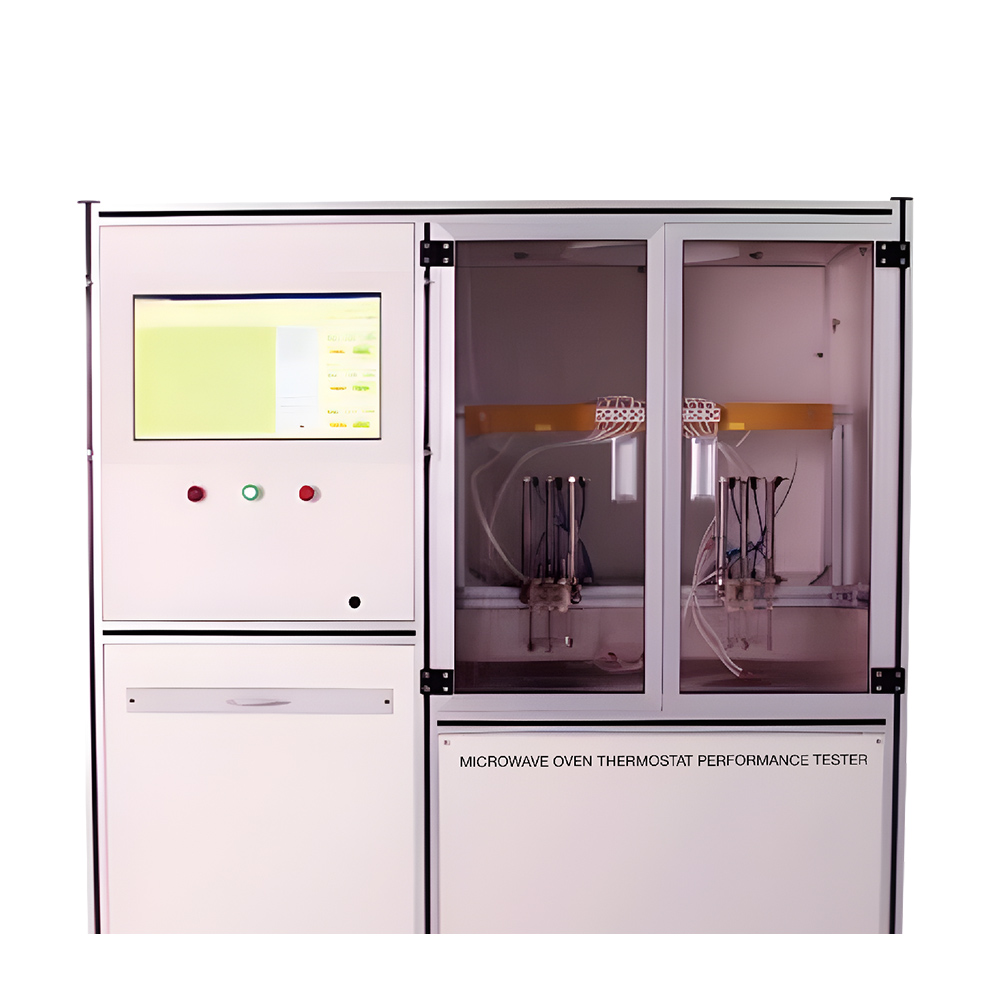

Microwave Oven Thermostat Performance Tester

Introduction to the Microwave Oven Tester

The Microwave Oven Thermostat Performance Tester evaluates thermostat performance across a room temperature to 250°C range, using a computer-controlled system for precise temperature detection. The Microwave Oven Tester is perfect for manufacturers researching and producing temperature control switches, testing thermostat operations per set temperature ranges. It supports R&D and quality control in microwave oven production.

Key Features

• Accurate Detection: The Microwave Oven Thermostat Tester uses high-precision sensors to assess thermostat contacts from room temperature to 250°C.
• Automated Reporting: Features a computer system for data collection, processing, and exportable reports with charts like temperature distribution curves.
• Safety Mechanisms: Includes automatic power cutoff for circuit leakage and heating protection above 260°C.
• Customizable Testing: Offers 1–30 test stations with adjustable temperature rise rates and modes like Open–Close or Make–Break.

Technical Specifications

• Temperature Range: Room temperature to ~250°C
• Display Resolution: 0.1°C
• Temperature Uniformity: ±2°C (below 250°C)
• Medium: Air
• Box Structure: Cylindrical, up-down air circulation
• Test Stations: 1–30 (customizable)
• Test Modes: Disconnect temperature, Closing temperature, Open–Close, Make–Break
• Detection: Auto-calculates max, min, average values, temperature curves
• Safety: Power cutoff for leakage, 260°C heating protection, door switch
• Display: Green (pass), dark red (low), red (high)

Why Choose the Microwave Oven Thermostat Performance Tester?

The Microwave Oven Thermostat Performance Tester ensures precise and safe thermostat testing with its advanced control system and customizable options. Its detailed reporting and compliance features make it a top choice for microwave oven manufacturers.
