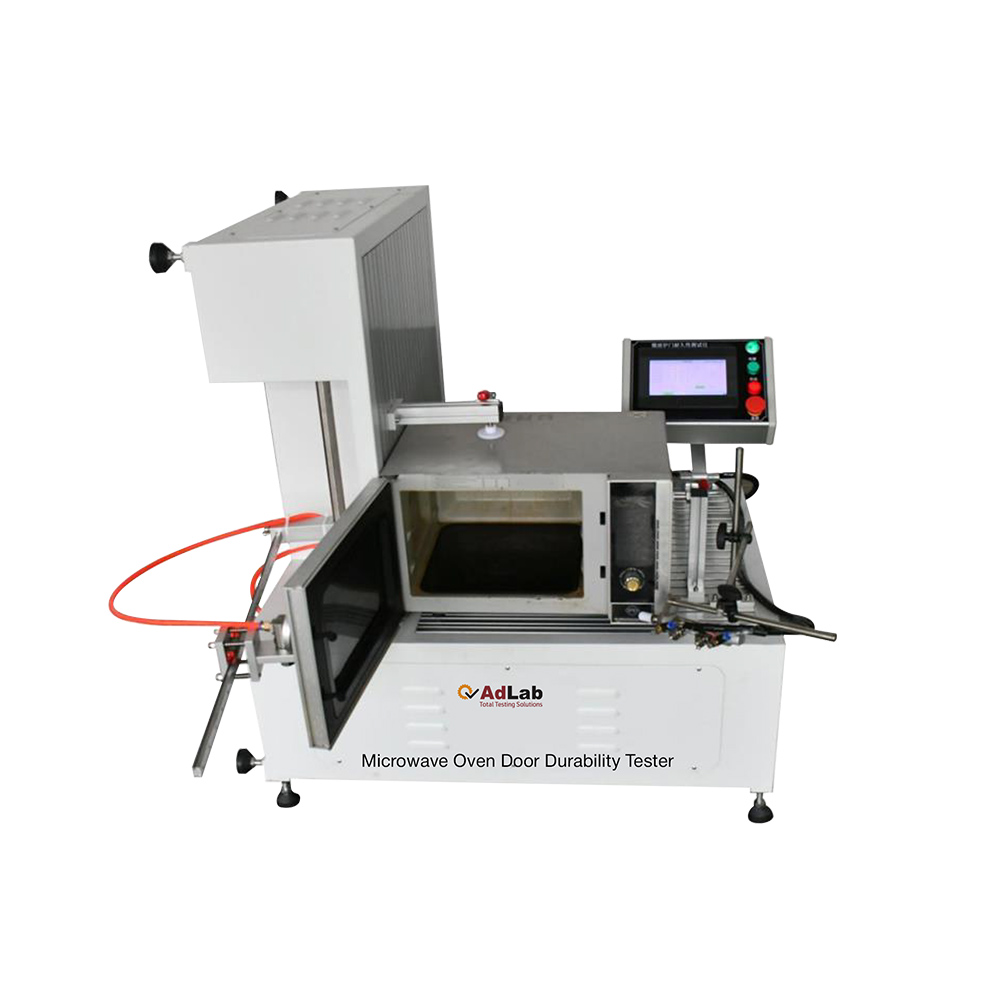

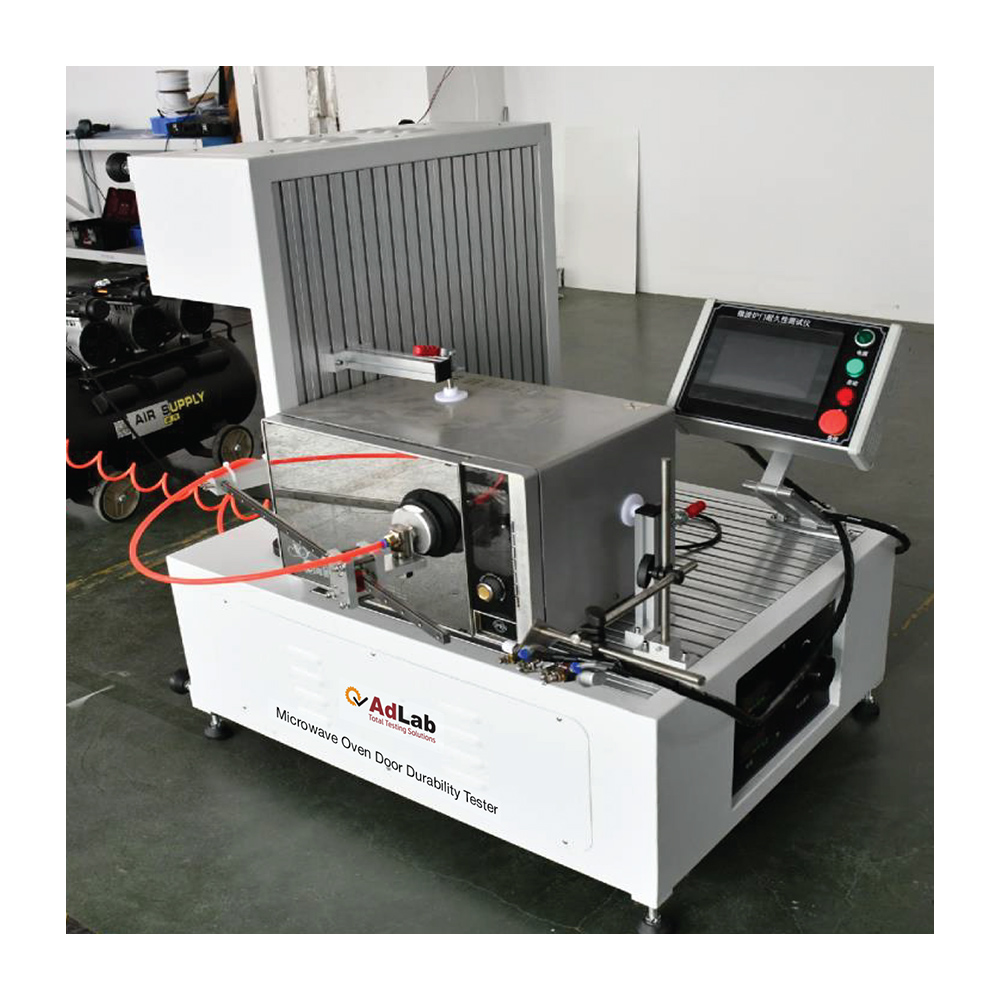

Microwave Oven Door Durability Tester

Introduction to the Microwave Oven Door Durability Tester

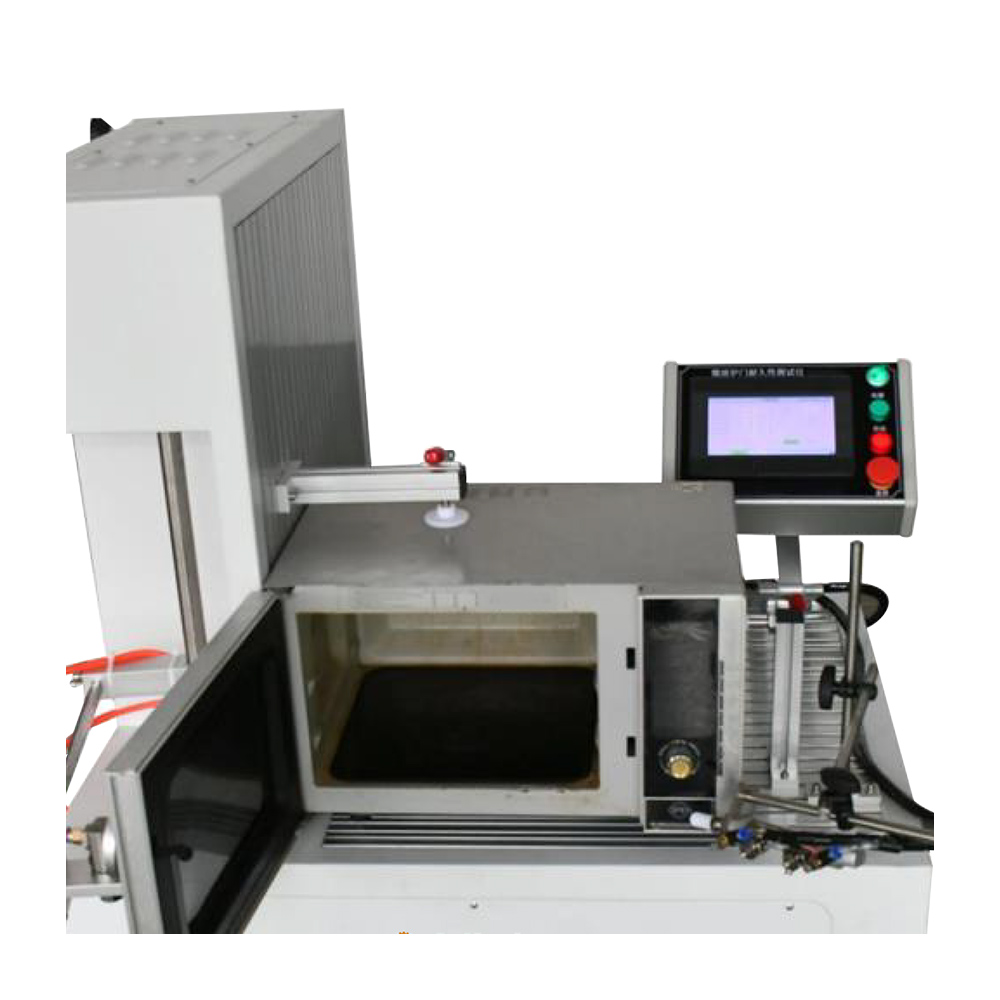

The Microwave Oven Door Durability Tester is designed per IEC60335-2-25 and GB4706-21 Article 18 to test microwave oven door durability, including hinges and interlocks. With a PLC-controlled stainless steel manipulator. The Durability Tester is perfect for manufacturers testing door systems of microwaves up to 700 mm wide. It simulates real-world opening/closing, ensuring compliance with GB4706.21 for safety and durability assessments.

Key Features

• Advanced Control: The Oven Door Durability Tester uses Mitsubishi PLC and a 7-inch TFT touch screen for precise angle (0-180°) and speed settings.
• Durable Design: Features a stainless steel manipulator with vacuum suction cups and an aluminum alloy frame for versatility.
• Safety Features: Includes power detection to stop tests if samples fail, with an adjustable 0-999999 test count.
• Customizable Testing: Offers adjustable door opening/closing times (0-9999S) and an eccentric mechanism for unlocking.

Technical Specifications

• Control Mode: Mitsubishi PLC
• Display: 7-inch Veron true color LCD touch screen
• Rack Structure: High-grade aluminum profile
• Power Supply: AC 220V, 50Hz
• Test Count: 0–999999 (auto-stop)
• Open/Close Time: 0–9999S (adjustable)
• Opening Angle: 0–180° (adjustable)
• Rate: Adjustable via touch screen
• Station: Simplex (left or up door)
• Unlocking: Eccentric mechanism
• Sample Range: Up to 700 mm width
• Load: 10A socket (up to 2000W)
• Standards: IEC60335-2-25, GB4706.21

The Main Configuration

1. Japan Mitsubishi PLC
2. Taiwan Willen 7 inch color touch screen
3. Tianzheng voltage regulator
4. Chint switch
5. Omron relay

Why Choose the Microwave Oven Door Durability Tester?

The Oven Door Durability Tester delivers reliable testing with its intelligent control and robust construction. Its compliance with international standards and safety features make it a top choice for microwave oven manufacturers.
