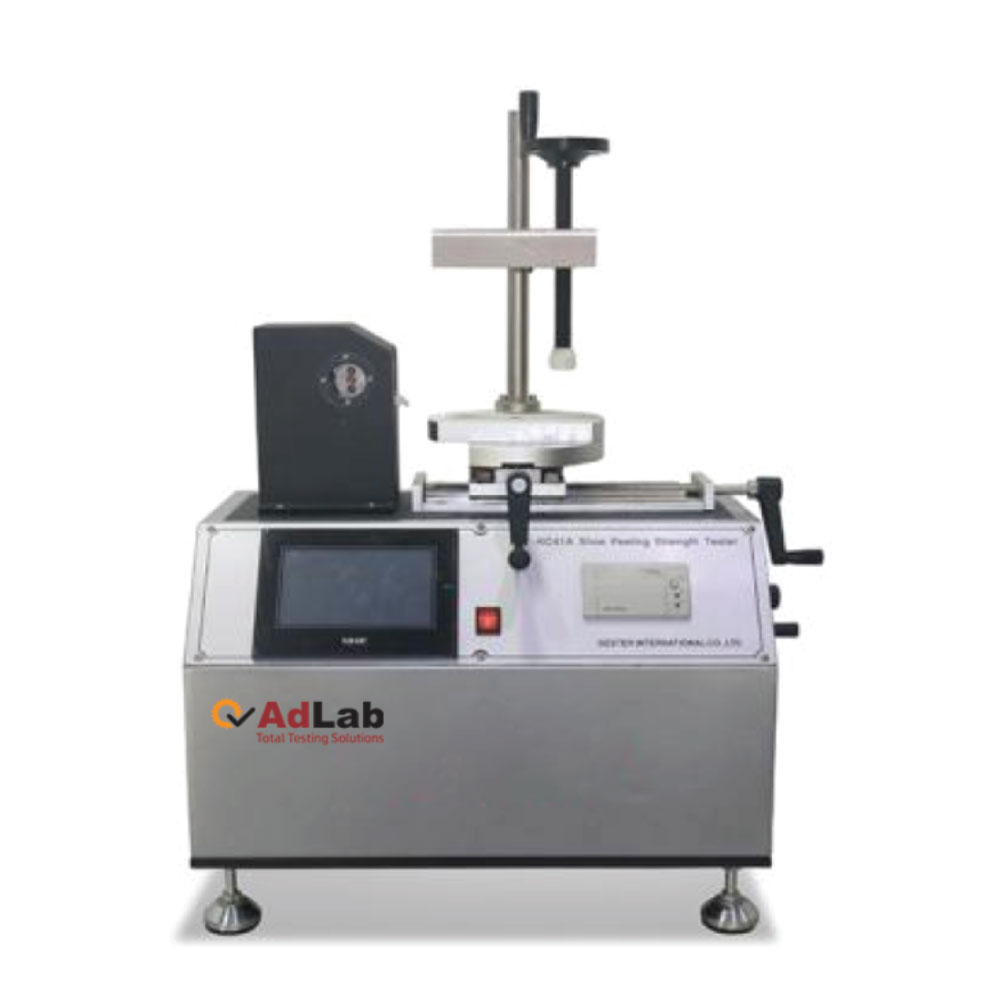

Shoe Peeling Strength Tester
The Shoe Peeling Strength Tester measures bond strength up to 100kg, meeting GB/T 3903.3 standards.
Key Features
- 100kg load capacity.
- 20±2 mm/min speed.
- 20±0.2 mm cutter.
- LCD display.
Introduction to the Shoe Peeling Strength Tester
The Shoe Peeling Strength Tester measures the peeling strength between sole and upper or outsole and midsole per GB/T 3903.3, using a 100kg load capacity. Ideal for footwear testing. The Peeling Strength Tester is perfect for manufacturers assessing bond strength in whole shoes, ensuring durability between components with a 20±0.2 mm peeling cutter.
Application:
This Shoe peeling strength Testing is determined for testing the peeling strength between sole and upper of a whole shoe or between outsole and medium bottom.
Key Specifications
- Standard: GB/T 3903.3
- Load Range: 100kg
- Peeling Cutter Width: 20±0.2 mm, 10±0.2 mm
- Peeling Cutter Speed: 20±2 mm/min
- Elevating Range: 40 mm
- Display Method: LCD
- Power Supply: 1∮ AC 220V 50/60Hz
- Dimensions: 60 x 40 x 85 cm
- Weight: 45 kg
| Standard accessories | 20±0.2 mm Peeling cutter 1pc |
| 10±0.2 mm Peeling cutter 1pc | |
| Shoe last (Size 44) 1Pair | |
| Power line 1pc | |
| Optional accessories | Shoe last (Size 35, 36, 37, 38, 39, 40, 41, 42, 43, 44) |
| Angle block gauge |
Why Choose the Shoe Peeling Strength Tester?
The Shoe Peeling Strength Testing ensures accurate bond strength testing with its adjustable cutters and LCD display. Its compliance with GB/T 3903.3 makes it a top choice for footwear manufacturers.
