Ceramic Crazing Resistance Tester

Introduction to the Ceramic Crazing Resistance Tester

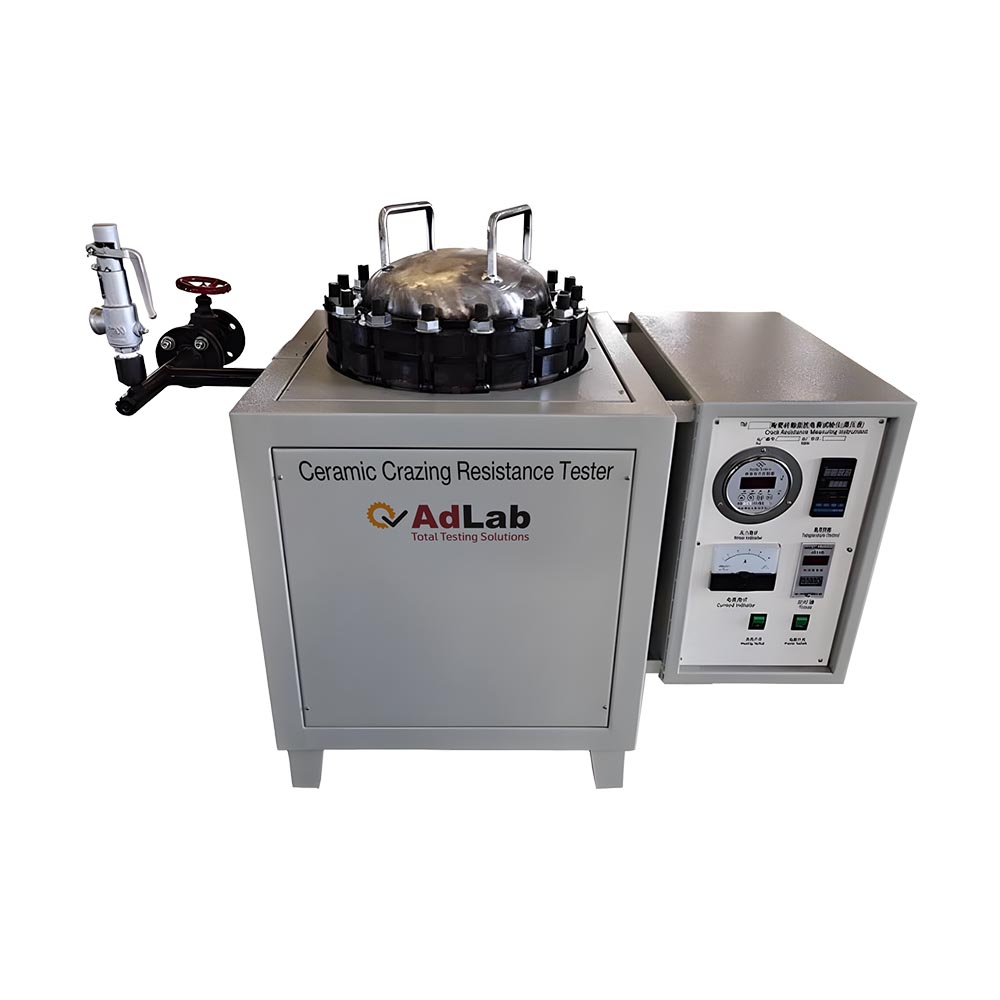

The Ceramic Crazing Resistance Tester uses electric heater-generated steam to test crazing resistance of glazed tiles per GB/T3810.11-2016 and ISO10545-11:1994. Ideal for ceramic labs. The Ceramic Crazing Resistance is perfect for manufacturers assessing crazing resistance in glazed tiles and food-contact ceramics per EN13258. It ensures product durability under high-pressure steam conditions.

Key Features

• Precise Pressure Control: The Ceramic Crazing Resistance Tester offers 1.0MPa pressure with ±20 kp-alpha accuracy for reliable testing.
• User-Friendly Design: Features a quick-opening flange and digital constant pressure settings for safe, easy operation.

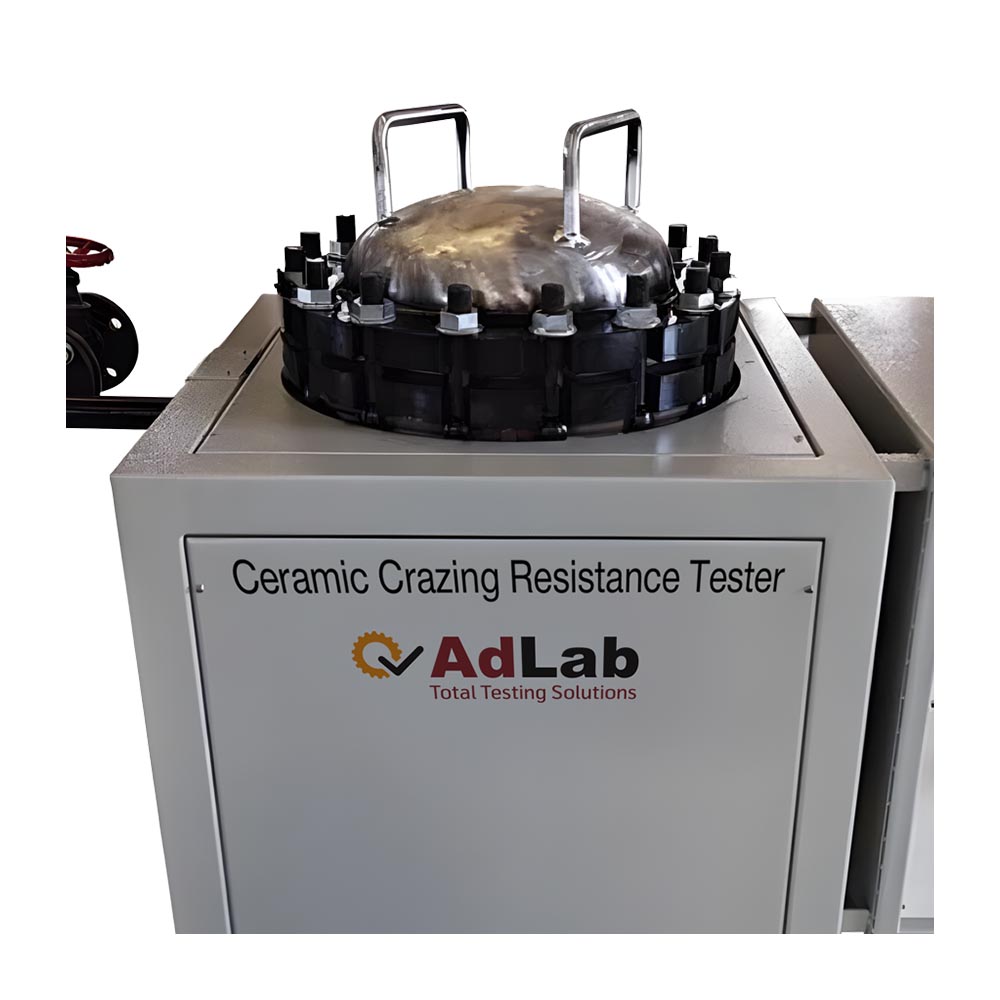

• Compact Build: Includes a 300×300 mm pressure tank and electric heater, supported by a safety valve and electric control device.
• Standard Compliance: Meets GB/T3810.11-2016, ISO10545-11:1994, and EN13258 for consistent results.

Technical Specifications

• Standards: GB/T3810.11-2016, ISO10545-11:1994, EN13258
• Voltage: 380V, 50Hz
• Power: 4 kW
• Container Volume: 300 x 300 mm
• Maximum Pressure: 1.0MPa
• Pressure Accuracy: ±20 kp-alpha

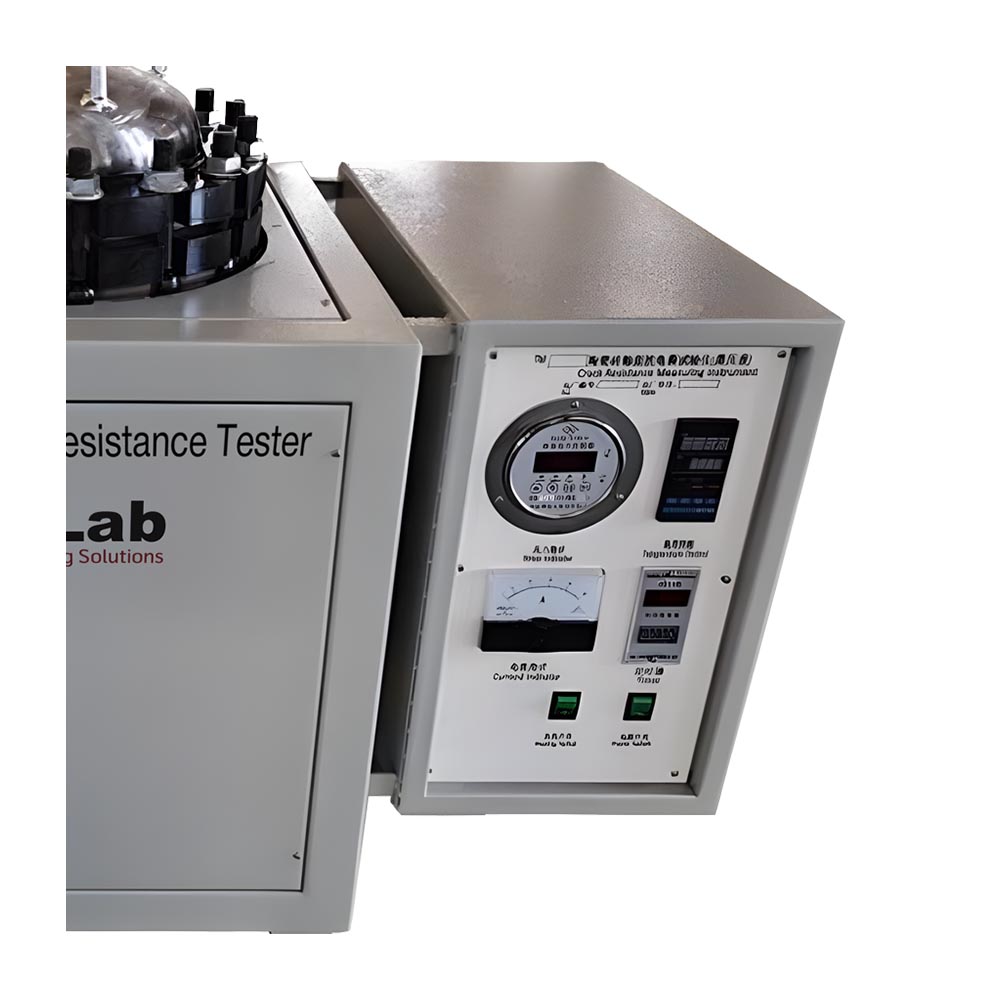

• Pressure Control: Automatic, digitally set constant pressure time
• Structure: Quick-opening flange, pressure tank, electric heater

Why Choose the Resistance Tester?

The Ceramic Crazing Resistance provides accurate and safe crazing resistance testing with its compact design and high-pressure precision. Its compliance with international standards makes it a top choice for ceramic testing.

The Ceramic Crazing Resistance Tester is a reliable solution for evaluating the resistance of ceramic tiles to surface crazing under steam pressure. Built to meet GB/T3810.11-2016, ISO10545-11:1994, and EN13258 standards, it ensures accurate and standardized testing results. The unit delivers a maximum pressure of 1.0MPa with ±20 kp-alpha precision, offering dependable performance for quality control. Its 300 x 300 mm pressure tank is equipped with an electric heater and safety valve, housed in a compact, durable structure. The quick-opening flange simplifies sample handling, while the digital control system allows for automatic pressure settings and constant pressure time adjustment, ensuring ease of use and consistent test conditions. Operating at 380V, 50Hz with 4 kW power consumption, this tester is ideal for ceramic manufacturers, laboratories, and research facilities. Its compact design, user-friendly interface, and precise pressure control make it a valuable tool for ensuring tile durability and production standards.
