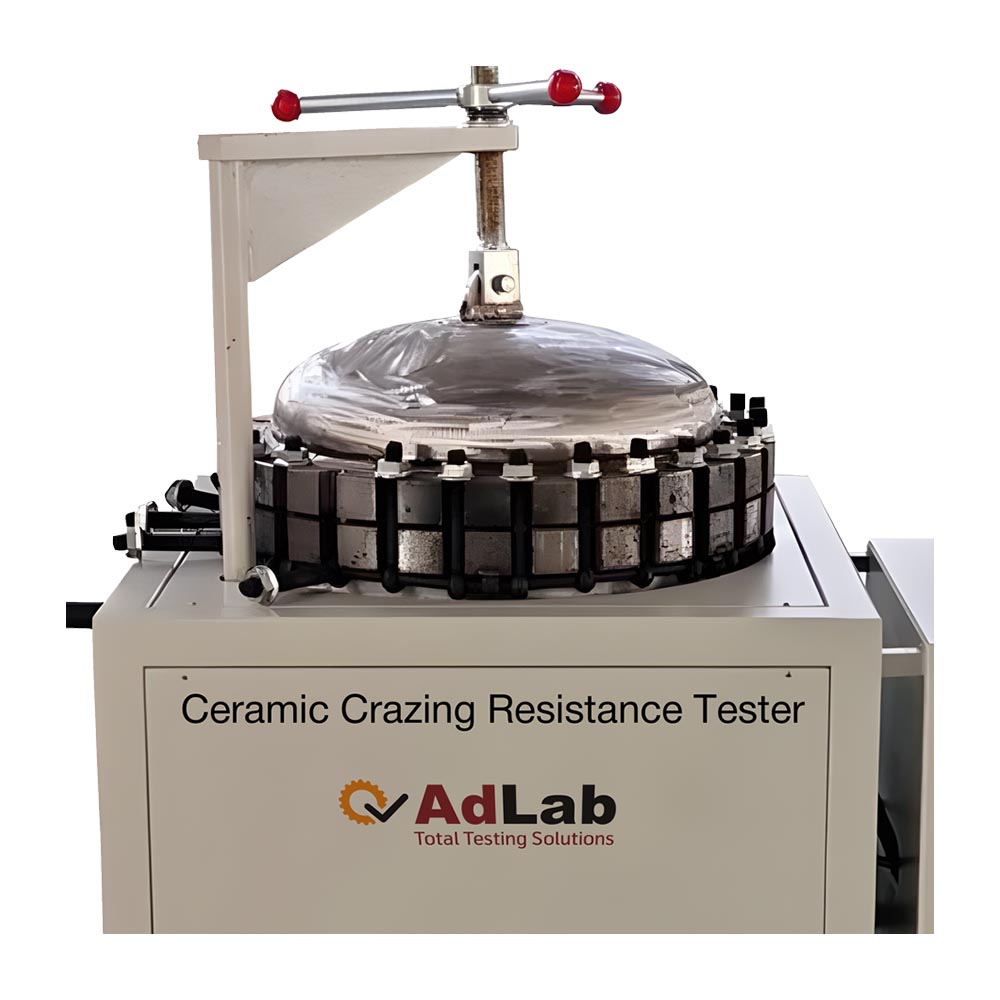

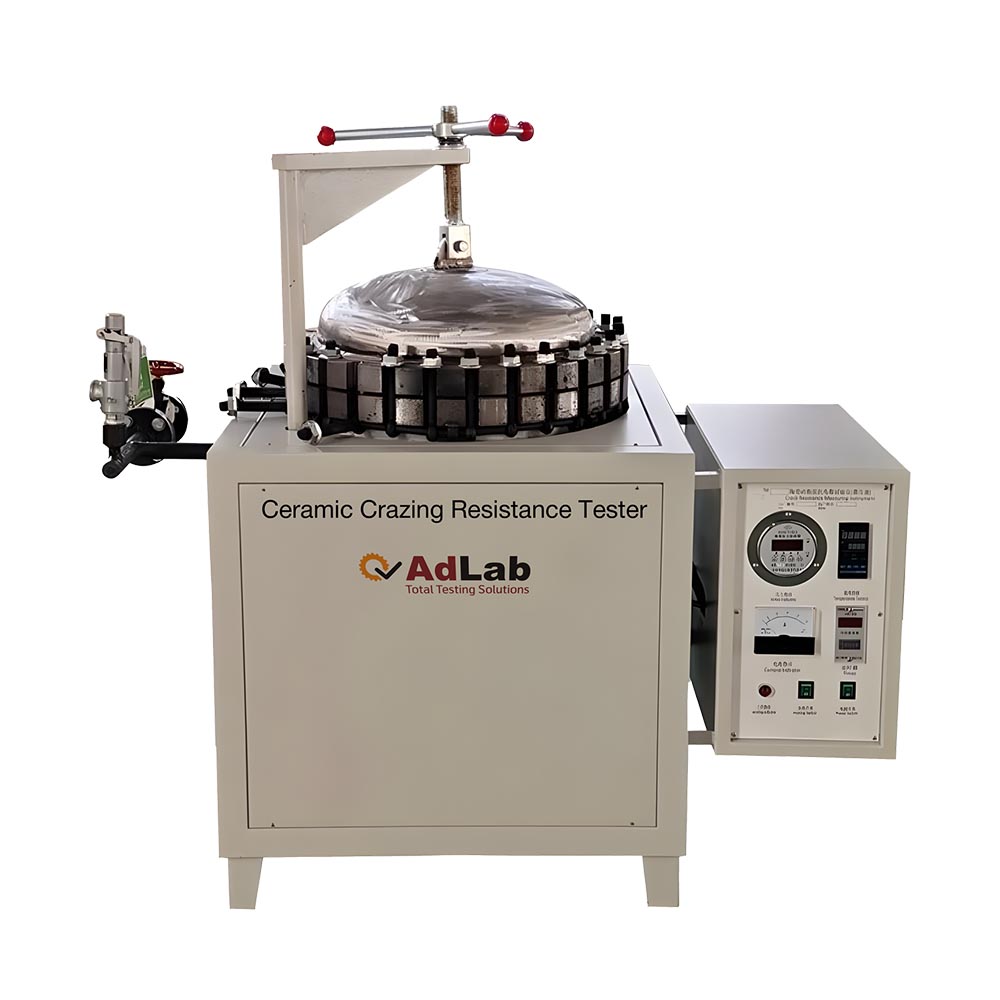

Introduction to the Ceramic Crazing Resistance Tester

The Ceramic Crazing Resistance Tester uses electric heater-generated steam to test crazing resistance of glazed tiles per GB/T3810.11-2016 and ISO10545-11:1994. Ideal for ceramic labs. The Resistance Tester is perfect for manufacturers evaluating crazing resistance in glazed tiles and food-contact ceramics per EN13258. It ensures product durability under high-pressure conditions.

Key Features

Precise Testing: The Tester employs a 1.0MPa pressure tank with ±20 kp-alpha accuracy for reliable crazing resistance assessment.
Easy Operation: Features a quick-opening flange and digital constant pressure settings for safe and convenient use.
Robust Design: Includes a Φ500x500mm container and electric heater, supported by an electric contact pressure gauge and safety valve.
Standard Compliance: Meets GB/T3810.11-2016, ISO10545-11:1994, and EN13258 for consistent testing.

Technical Specifications

Standards: GB/T3810.11-2016, ISO10545-11:1994, EN13258
Voltage: 380V, 50Hz
Power: 9 kW
Container Volume: Φ500 x 500 mm
Maximum Pressure: 1.0MPa
Pressure Accuracy: ±20 kp-alpha

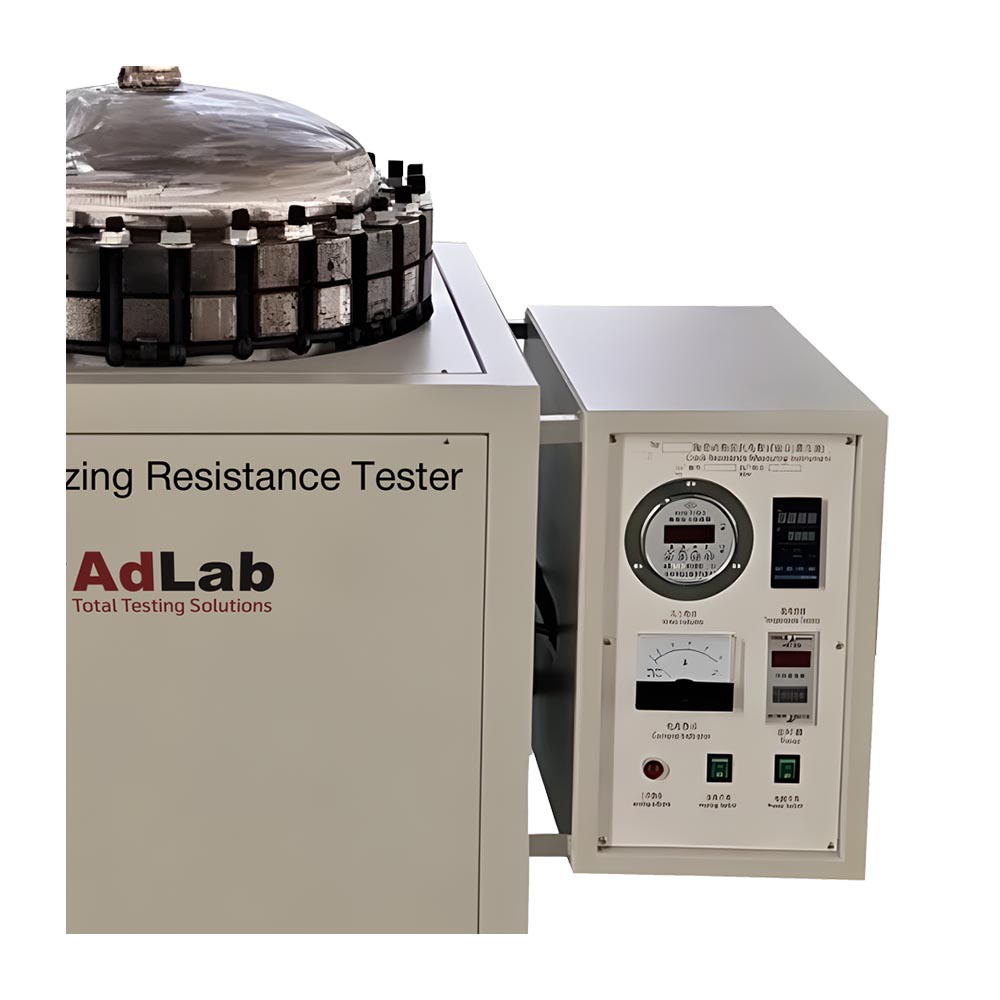

Pressure Control: Automatic, digitally set constant pressure time
Structure: Quick-opening flange, pressure tank, electric heater

Why Choose the Ceramic Crazing Resistance?

The Ceramic Crazing Resistance Tester offers accurate and safe crazing resistance testing with its high-pressure system and compact design. Its compliance with international standards makes it a top choice for ceramic manufacturers.

The Crazing Resistance Tester is a precision instrument designed to evaluate the resistance of ceramic tiles to surface crazing under high-pressure steam. Compliant with GB/T3810.11-2016, ISO10545-11:1994, and EN13258 standards, it ensures reliable and repeatable testing. The system features a robust pressure tank with a capacity of Φ500 x 500 mm and supports a maximum pressure of 1.0MPa, maintaining high accuracy with ±20 kp-alpha. It includes a digital constant pressure control system for easy and accurate operation, along with an electric heater for stable temperature performance. The quick-opening flange allows for convenient sample placement and removal, while the electric contact pressure gauge and safety valve enhance operational safety. Operating at 380V, 50Hz with 9 kW power consumption, this tester is ideal for tile manufacturers and laboratories focused on quality control. Its durable structure and advanced pressure control ensure consistent, efficient testing for improved product reliability.
