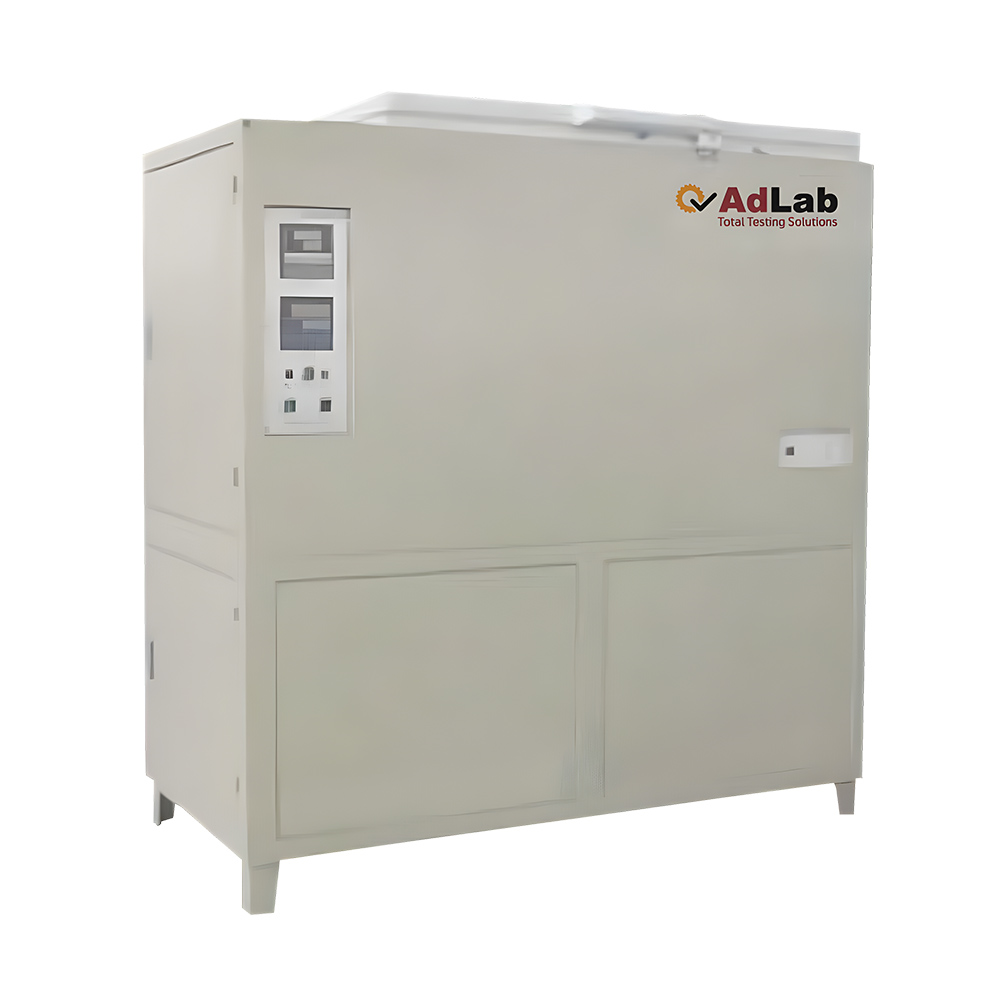

Ceramic Tile Frost Resistance Testing Machine
The Ceramic Tile Frost Resistance Testing Machine tests frost resistance from -15°C to +15°C, meeting ISO10545-12 standards.
Key Features
- -15°C to +15°C range.
- 600x600x300 mm area.
- ±1°C control accuracy.
- Electric lifting mechanism.
Introduction to the Ceramic Tile Frost Testing
The Ceramic Tile Frost Resistance Testing Machine evaluates tile frost resistance per GB/3810.12-2016 and ISO10545-12, operating from -15°C to +15°C. Ideal for testing tile durability. The Ceramic Tile Frost Resistance Testing Machine is perfect for manufacturers assessing tile frost resistance in a 600x600x300 mm testing area. It ensures compliance with GB/3810.12-2016 for construction and ceramic industries.
Key Features
- Wide Temperature Range: The Resistance Testing Machine operates from -15°C to +15°C with ±1°C control accuracy.
- Spacious Testing Area: Offers a 600x600x300 mm chamber for testing various tile sizes effectively.
- Convenient Design: Equipped with an electric lifting mechanism and customizable test cycles for ease of use.
- Standard Compliance: Meets GB/3810.12-2016 and ISO10545-12 for reliable frost resistance evaluation.
Technical Specifications
- Standards: GB/3810.12-2016, ISO10545-12
- Temperature Range: -15°C to +15°C
- Control Accuracy: ±1°C
- Testing Area: 600 x 600 x 300 mm
- Test Method: Customizable per set times
- Power Supply: 220V ±10%, 2.5 kW
- Features: Electric lifting mechanism
Why Choose the Ceramic Tile Frost Testing ?
The Machine ensures precise frost resistance testing with its temperature accuracy and spacious design. Its adherence to international standards makes it a top choice for tile manufacturers.
The Ceramic Tile Frost Resistance Testing Machine is designed to evaluate tile durability under freezing conditions, conforming to GB/3810.12-2016 and ISO10545-12 standards. It operates within a temperature range of -15°C to +15°C, with ±1°C control accuracy. The spacious 600 x 600 x 300 mm testing area accommodates various tile sizes. Test cycles are customizable for precise evaluation. Featuring an electric lifting mechanism for ease of use, the unit runs on 220V ±10% power with 2.5 kW consumption, making it ideal for quality control in tile manufacturing and research applications.
