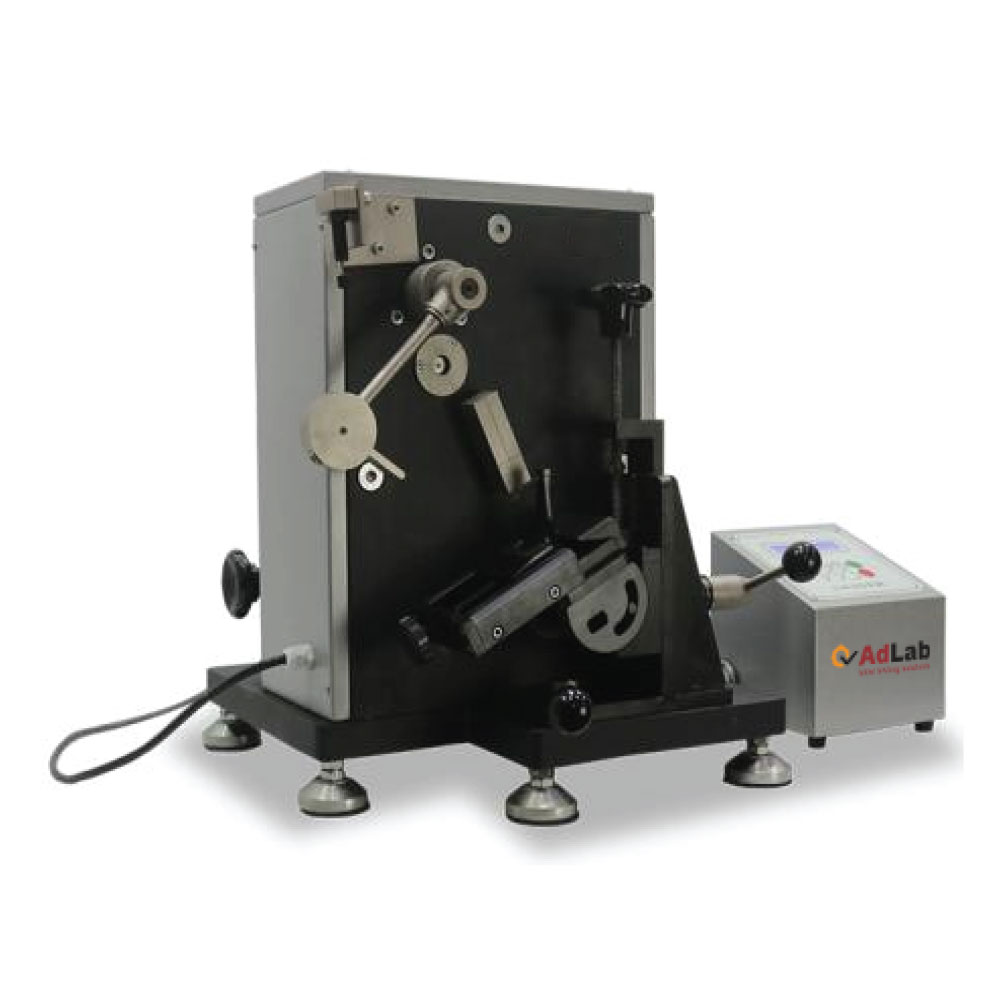

Shoes Heel Testing Machine

Introduction to the Shoes Heel Testing Machine

The Shoes Heel Testing Machine tests the resistance of ladies’ medium and high heels to repeated impacts per BS 5131 4.9, delivering 0.68J blows via a pendulum. Essential for durability testing. The Shoes Heel Testing is ideal for manufacturers assessing heel fatigue resistance per ISO 19956, subjecting heels to 60 blows/min until failure or satisfactory performance, per SATRA TM21.

Applications

The tester is used to determine the resistance of medium and high heels of ladier’s shoes under repeated small impacts to the heel tip. A heel is subjected to blows, each of specified energy, delivery by a pendulum once a second. Testing continues until failure of the heel takes place or until satisfactory fatigue resistance is obvious.

Standard

BS 5131 4.9
ISO 19956
QB/T 2864
SATRA TM21

Key Specifications

• Standards: BS 5131 4.9, ISO 19956, QB/T 2864, SATRA TM21
• Impact Energy: 0.68J±0.02J
• Impact Frequency: 60 blows/min
• Impact Angle: 90 degrees
• Pendulum: φ57±1mm, 20±1mm thickness
• Pendulum Shaft: φ12.5±1mm
• Striker Head: 35 x 20 x 6mm, R3mm corner radius
• Pendulum Moment: 0.68N.m (horizontally)
• Counter: LCD digital display, 0–999999 (adjustable)

Why Choose the Shoes Heel Testing Machine?

The Shoes Heel Testing ensures accurate heel durability testing with its precise pendulum and adjustable counter. Its compliance with international standards makes it a top choice for footwear manufacturers.
