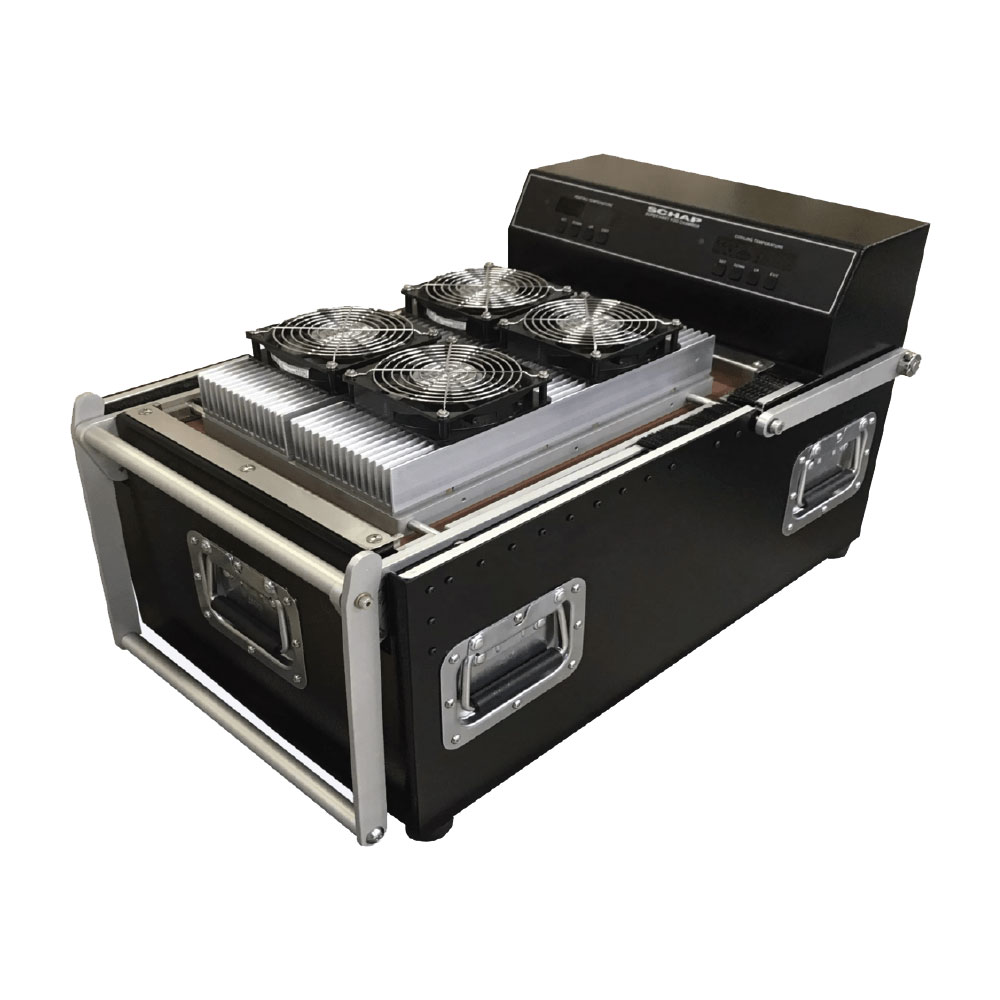

Dry Fog Tester
Oil-free Dry Fog Tester for corrosion testing, six test wells, solid-state heaters, precise temperature control, easy sample change, and low operating costs.
- Six test wells for 400 ml, 1L beakers, or glass plates.
- Precise solid-state heating: 50–120°C (dry wells) and 20–40°C (condensing plates).
- Oil-free design ensures low operating costs and safe sample handling.
Product Details
The Dry Fog Tester uses six beakers to accommodate a range of test samples and permits the use of less expensive square glass plates for all tests. The cooling and heating systems use reliable solid state technologies to eliminate the mess and expense of thermal fluids while still providing excellent thermal control and maximum uptime.

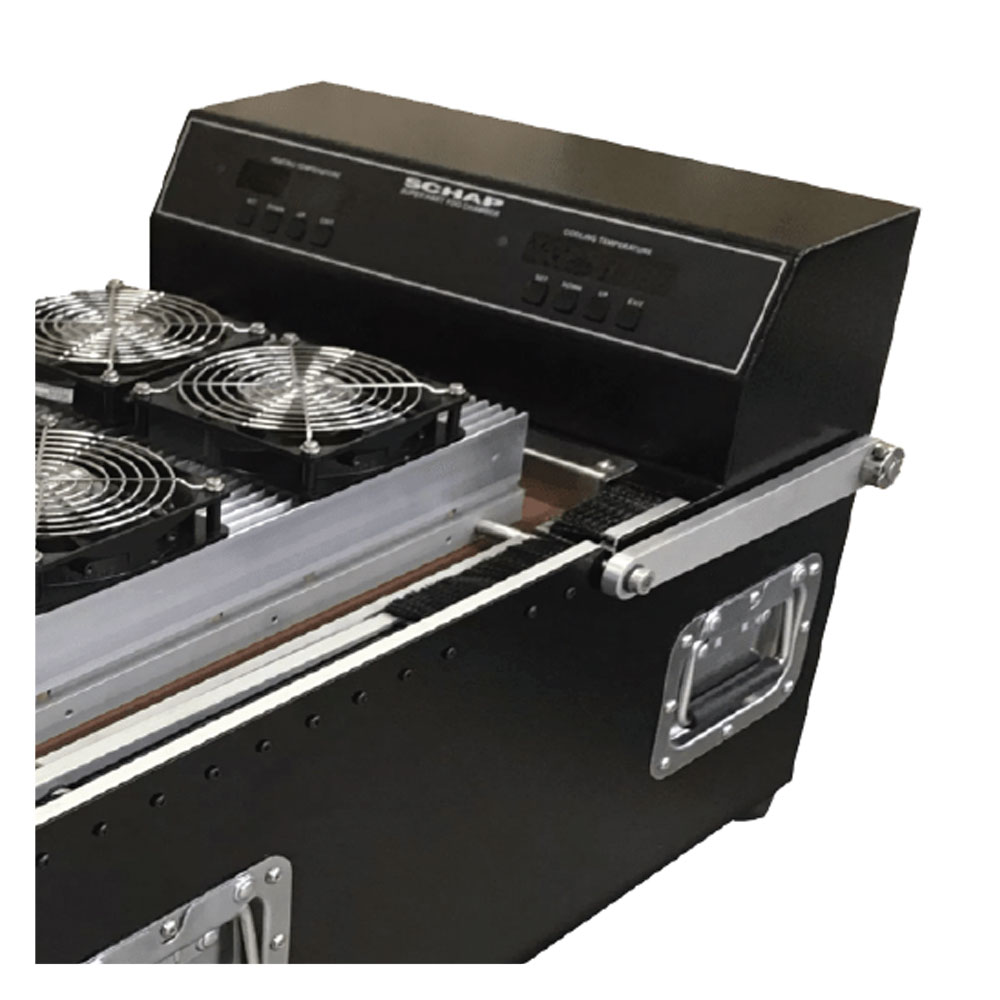

Solid state silicon heaters give you the reliability and dependability you need and expect. Clear digital displays allow the operator to see the test status. The hinged pop-up lid makes for easy test setup, sample change over, and clean up time. This results in a lower competitive purchase price, dependable operation and lower operating costs.
The operating specifications include dry heated test wells with a range of 50°C to 120°C, Condensing plates with a temperature range of 20°C to 40°C. The set points are calibrated to within 0.5°C and the set point repeatability is ± 0.2°C.
Required Test Materials include beakers, seals, rings, and glass plates and are NOT included
Dry Test Environment
- Oil-free design– No expensive thermal fluids
- Use 400ml (with adapter) and 1 liter beakers
- Quick sample change-over, no need for cleanup
- Low operating costs
- Safely change over test samples without oil burns
- Small desktop footprint
Standards
- DIN 75201
- DIN EN 14288
- EN 14288
- GME 60326
- GMW 3235
- HES D6508
- ISO 17071 ISO 6452
- MS 300-54
- PV 3015 PV 3920
- SAE J1756
Why Choose the Dry Fog Tester?
The Dry Fog Tester offers reliable, efficient, and safe testing for corrosion and environmental analysis. Its oil-free design eliminates messy thermal fluids, reducing operating costs and enhancing lab safety. Solid-state silicon heaters provide precise temperature control with ±0.5°C calibration accuracy and ±0.2°C repeatability, ensuring consistent and reproducible results. The six test wells accommodate a variety of sample sizes, including 400 ml and 1-liter beakers or square glass plates, making it highly versatile. The hinged pop-up lid allows quick sample changeover and cleanup, minimizing downtime. With a small desktop footprint and digital displays for real-time monitoring, this tester delivers dependable performance while lowering maintenance needs.
