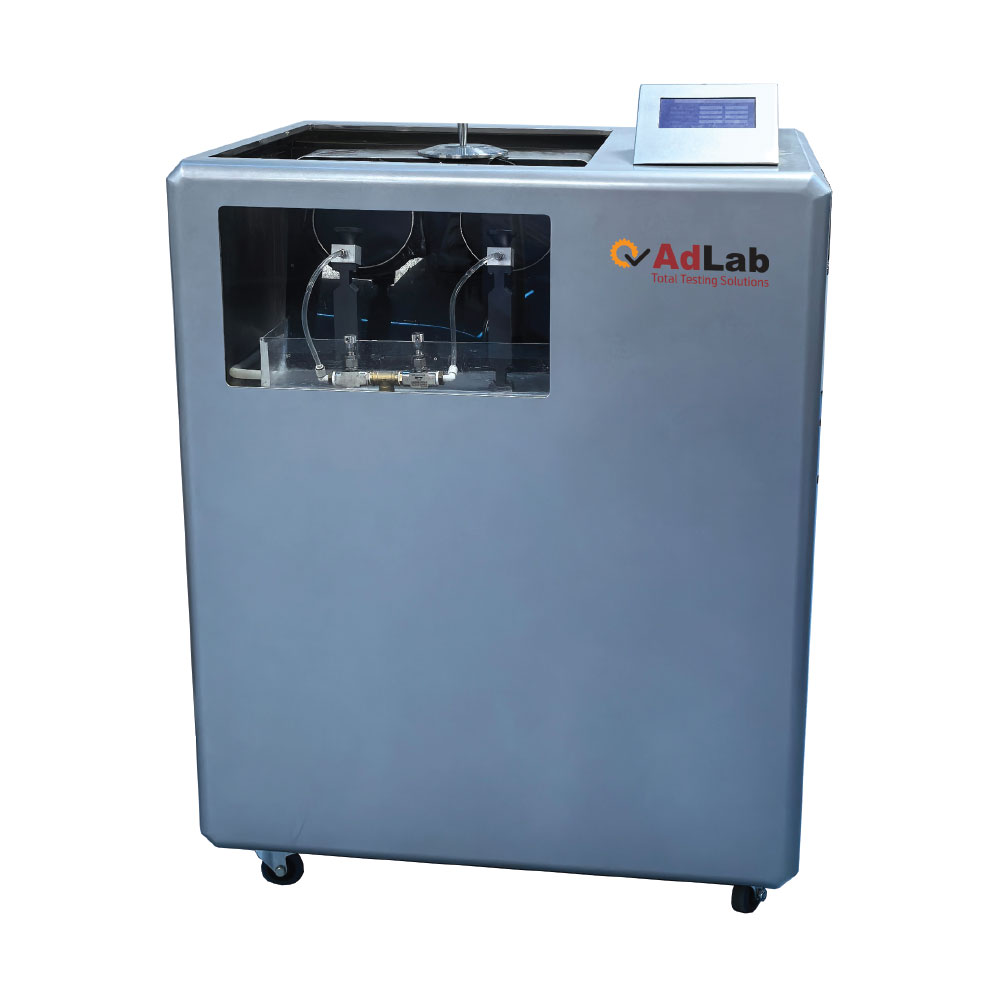

Fabric Condensation Tester

Fabric Condensation Tester is for measuring condensation on textiles in a humid microclimate.

This test methods measures the water condensation accumulation on the innermost surface (back) of fabrics in a humid microclimate, with and without simulated precipitation on the outermost fabric (face) surface.

The test method measures the amount of water condensation produced in 15 minutes on a specimen placed in a humid microclimate created by controlling temperature and relative humidity of chambers on either side of the specimen. Specimens are tested with a sprinkler to simulate rain, and with no sprinkler.

The amount of water is calculated as the mass gain of a piece of pre-weighed filter paper after absorbing the condensation from the specimen.

Results are reported as g/m², where a higher valve indicates more water condensation. Area and time are constant for all specimens.

Standard temperature and humidity environment for the inner climate chamber: air temperature of 35 ℃, relative humidity of 95% RH;

Spray water temperature requirement: 10 ℃.

Testing Scopes:

Fabrics or multi-layer fabric systems.

Specification:

1.  7 “touch screen control.
2.  Adjustable Constant Spray Flow Rate.
3.  Built in water temperature control system, automatically controlling the spray water temperature.
4.  Spray water temperature control range (at standard lab. Condition): 8.5℃–11.5 ℃;
5.  Spray water temperature accuracy: ±0.5℃.

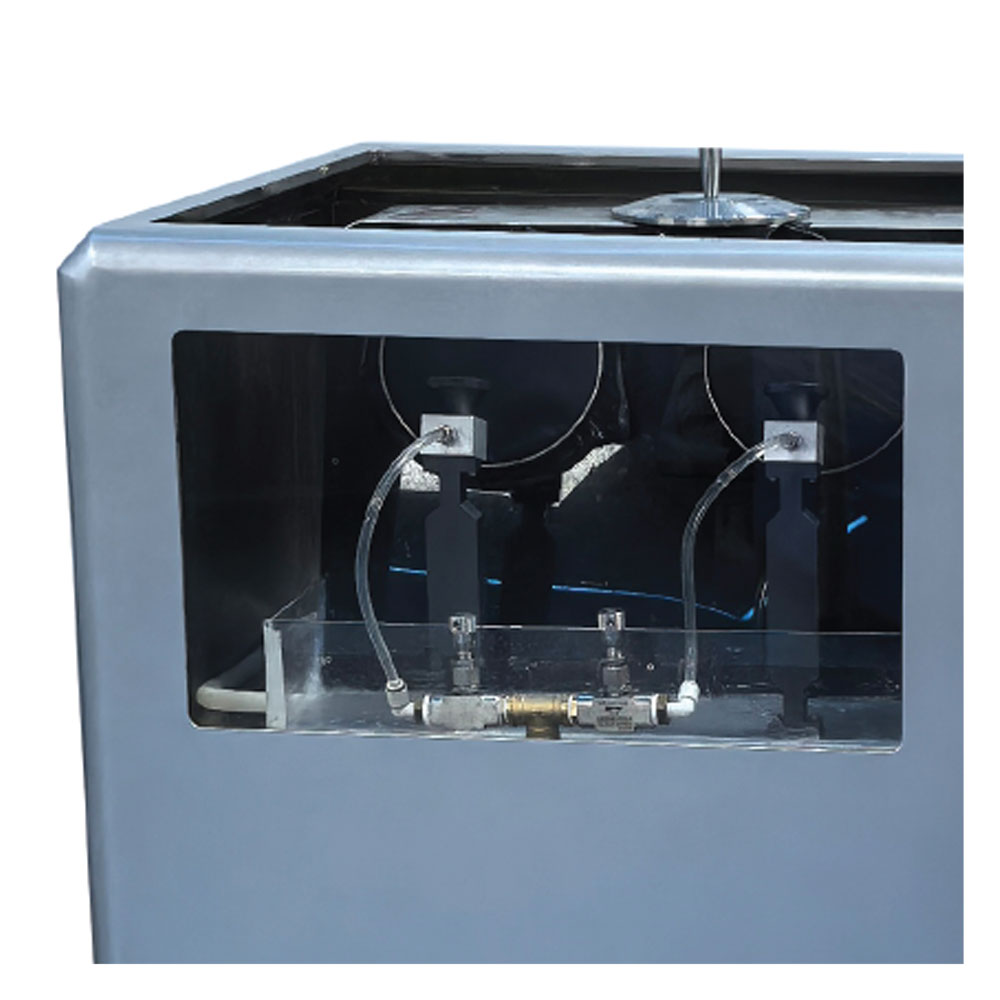

6. The Angle of spray water droplets land onto the surface of specimen: 30°± 5°.
7.   Water Reservoir Volume: 100mL.
8.  Inner chamber air temperature range (at standard lab. Condition): 30.0– 40.0 ℃.
9.  Air temperature accuracy: ±1.0℃.
10.  Relative humidity range of the inner cavity: Max. 100.0 RH%.
11.  Relative humidity (RH%) accuracy: ± 4%.
12. Testing stations: 2.
13. Inner clamping ring: 165.1mm inner diameter, 171.5mm outer diameter, 12.7mm height.
14. Outer clamping ring: 172.71mm inner diameter, 177.8mm outer diameter, 12.7mm height.
15. Test area of specimen: Dia. 152.4mm.
16. Weight: 2kg, diameter 163mm.

Why Choose the Fabric Condensation Tester

Choose the Fabric Condensation Tester for its precision, consistency, and intelligent control. It uses a 7-inch touch-screen interface for easy operation and offers dual testing stations for simultaneous specimen analysis. The system automatically regulates spray water temperature (8.5°C–11.5°C) and air humidity (up to 100% RH) to simulate real-world humid conditions. The built-in water temperature control and adjustable spray angle ensure accurate and repeatable testing results. With exceptional temperature accuracy (±1.0°C) and humidity precision (±4%), this tester delivers reliable data for evaluating condensation behavior on single or multi-layer fabrics. It is ideal for fabric engineers, research labs, and textile manufacturers aiming to optimize fabric performance in humid environments.
