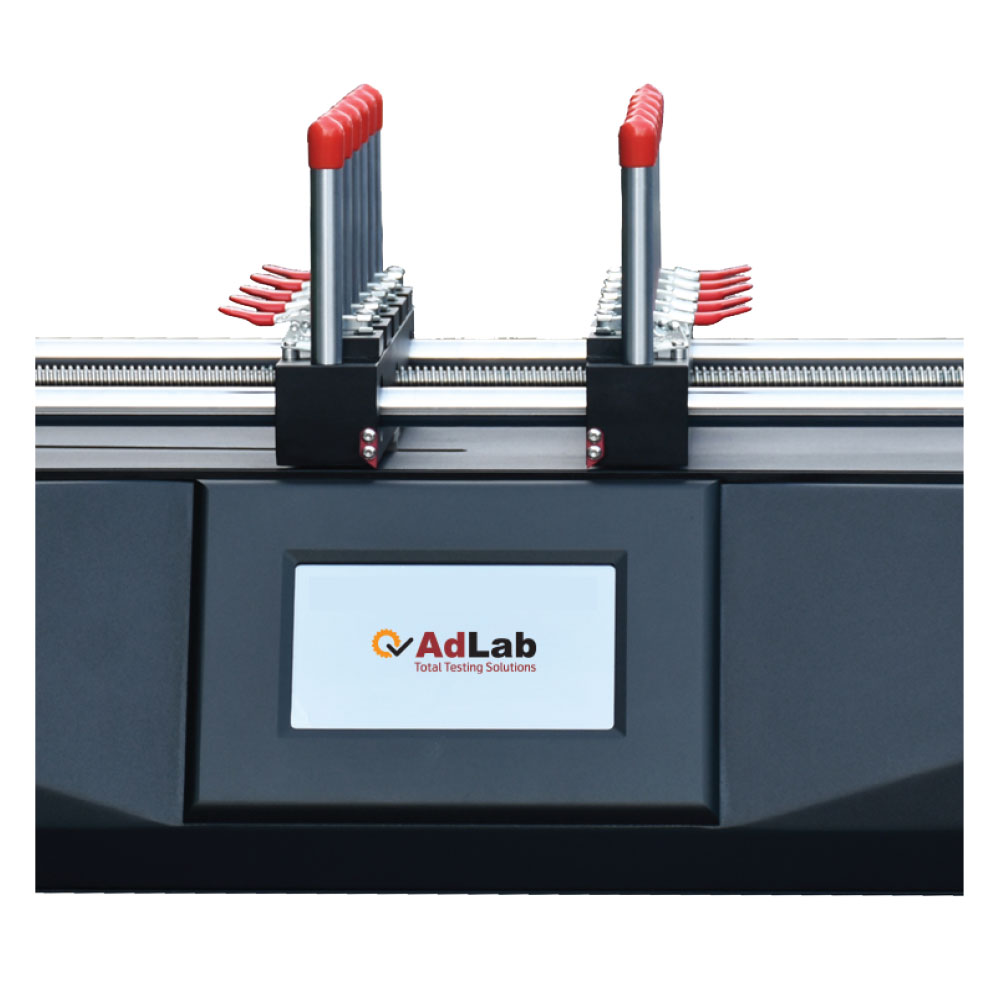

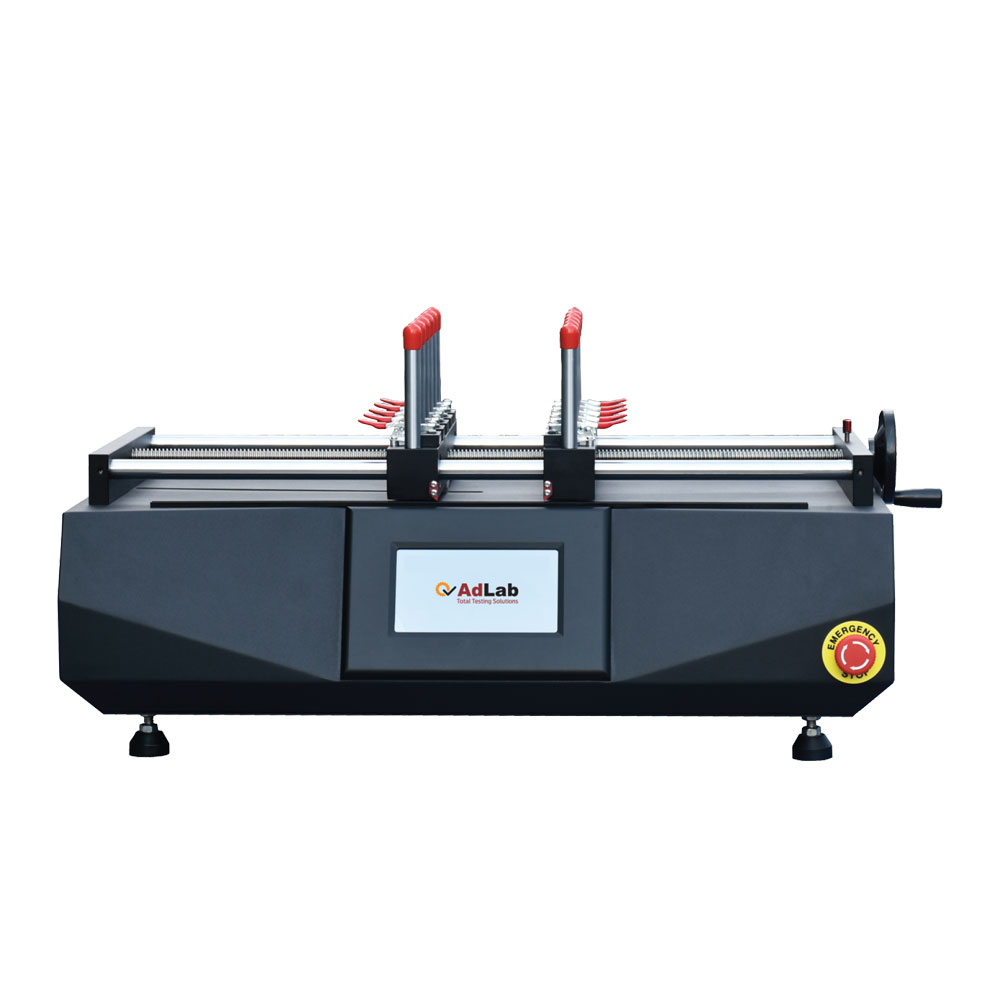

Elastic Band Fatigue Tester
The Elastic Band Fatigue Tester is an instrument used to test the tensile and bending resistance of elastic webbing or elastic materials.
Scope of application: Suitable for various elastic ribbons and materials
Features
- High-Precision Control: Equipped with a servo motor, planetary reducer, and high-speed linear slide for accurate control of stretch percentage, length, rate, and cycles.
- Programmable Operation: Original sample length and maximum stretching times can be freely set, supporting up to 9,999,999 cycles.
- Intuitive Touchscreen: 7-inch color screen controller allows easy programming, monitoring, and data management.
- Adjustable Stretch Parameters: Stretch percentage ranges from 0–100%, with speeds up to 40 cycles per minute.
- Durable Construction: Robust design ensures long-term reliability and stability during repeated testing.
- Wide Application: Suitable for testing various elastic ribbons, bands, and other elastic materials.
- Standards Compliance: Meets GB/T 37635, ensuring results are accurate and consistent with industry norms.
Application Standard
GB/T 37635
Technical Parameter
- Application: Tensile and bending resistance test for elastic webbing and materials
- Application Standard: GB/T 37635
- Controller: 7-inch color screen
- Sample Length Range: Maximum 260mm
- Stretch Percentage: 0-100%
- Stretching Speed: Up to 40 cycles/min
- Maximum Stretching Times: 9999999 times
- Power Supply: AC 220V 50Hz/60Hz 10A
- Dimensions: 870 (L) x 530 (W) x 430 (H) mm
- Weight: Approx. 68kg
Why Choose The Elastic Band Fatigue Tester?
Elastic Band Fatigue Tester, Precisely evaluate the tensile and bending resistance of elastic materials with programmable stretch percentage, speed, and cycles. Features a high-speed linear slide, servo motor, and intuitive touchscreen controller. Durable, accurate, and compliant with GB/T 37635, ensuring reliable and repeatable test results for quality control and R&D.
