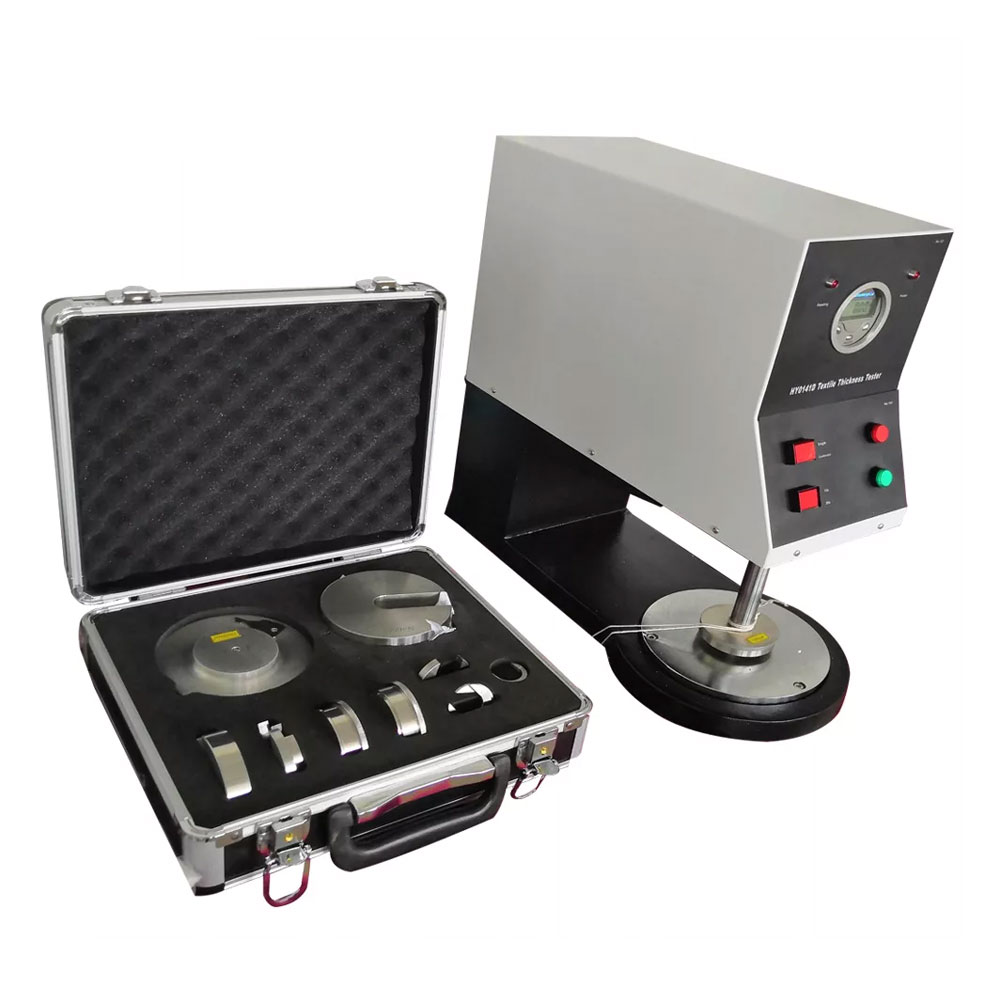

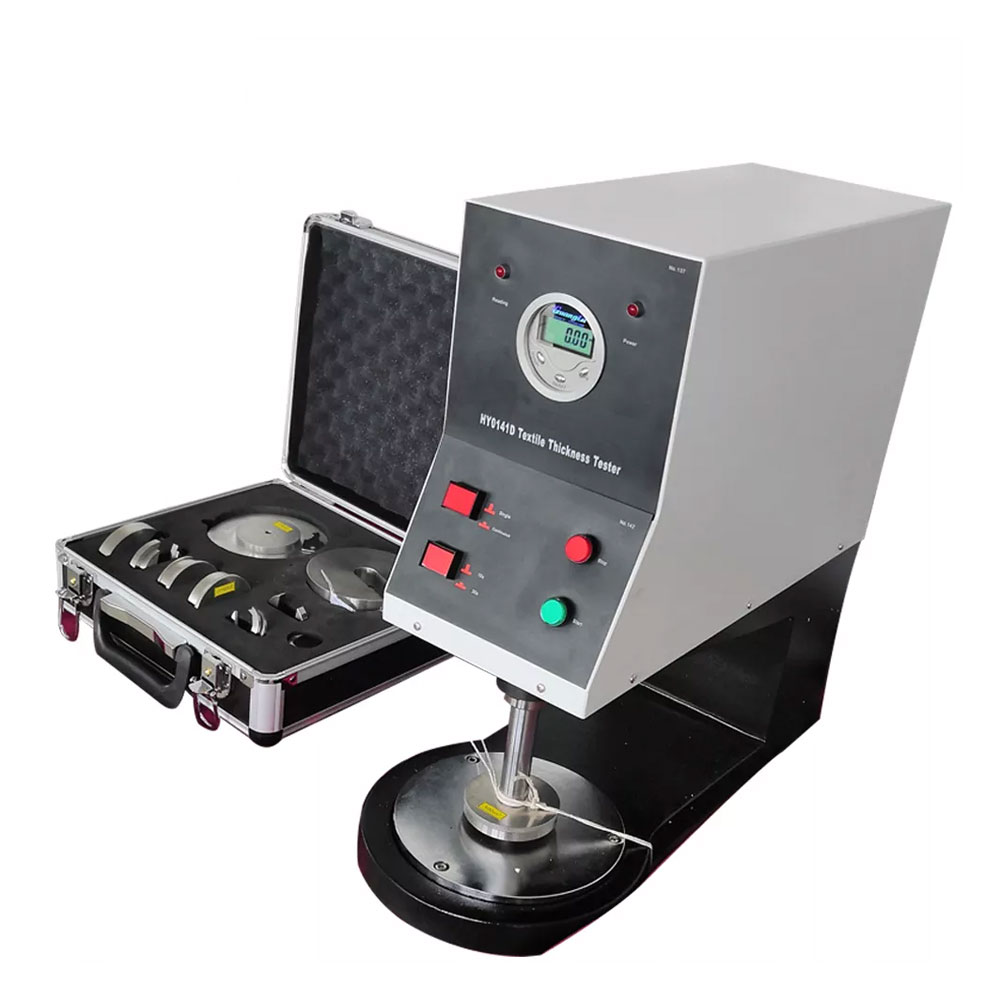

Auto Thickness Gauge Tester
Auto Thickness Gauge Tester accurately measures fabric and film thickness. ISO/GB compliant, digital display, multiple press feet and weights for reliable testing.
- Measures thickness of textiles, films, and textile products (0.01–25 mm)
- Complies with ISO 5084, ISO 9073, ISO 9863, GB/T 3820 standards
- Digital display, multiple press feet and weights, easy operation
Auto Thickness Gauge Tester is used to determine the thickness of various textile and textile products. It is also suitable for uniform film. It conforms to ISO 5084, ISO 9073, ISO 9863, GB/T 3820, etc.
Standards
ISO 5084, 9073, 9863
GB/T 3820
Features
- Digital display, high accuracy

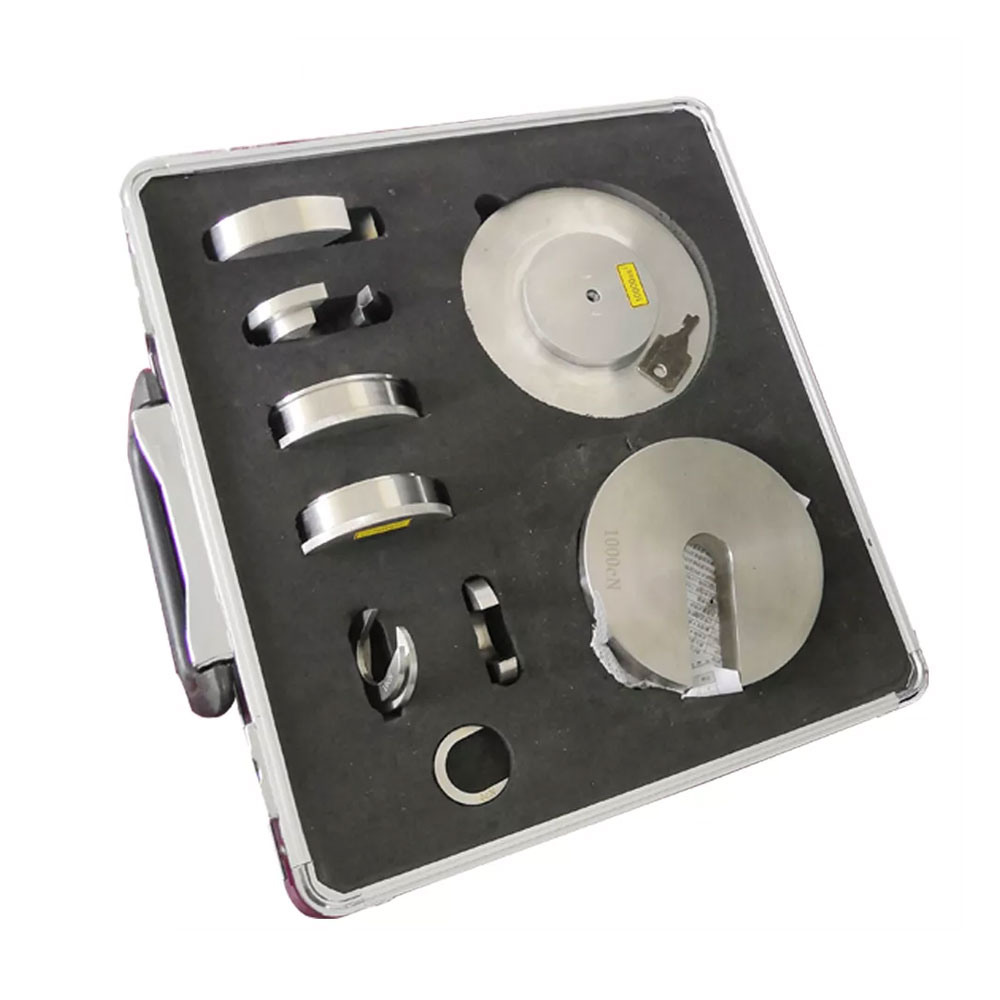

- Provided with several press foot and press weight
- Easy to operate
Technical Specification
| Thickness range | 0.01~25mm or customized |
| Min. division value | 0.01mm or 0.001mm |
| Press foot area | 100mm2, 2000mm2, 2500mm2, 10000mm2 or customized |
| Press weight | 20cN, 100cN, 200cN, 500cN, 2000cN, or customized |
| Pressure time | 10s, 30s |
| Power supply | AC220V±10%, 50Hz |
| Dimensions | 410 × 160 × 300mm |
| Weight | 30kg |
Why Choose Auto Thickness Gauge Tester?
The Auto Thickness Gauge Tester is an essential tool for textile manufacturers, research labs, and quality control units that demand precise and repeatable thickness measurements. With a digital display, multiple selectable press feet, and customizable press weights, it ensures consistent results for different types of fabrics and films. The device supports ISO and GB/T standards, including ISO 5084, ISO 9073, ISO 9863, and GB/T 3820, guaranteeing international compliance. Its easy-to-use interface and configurable pressure time (10s or 30s) enhance testing efficiency. Lightweight yet robust, the tester offers high accuracy, flexibility, and reliability, helping manufacturers control material specifications, maintain product uniformity, and ensure quality assurance across production batches.
