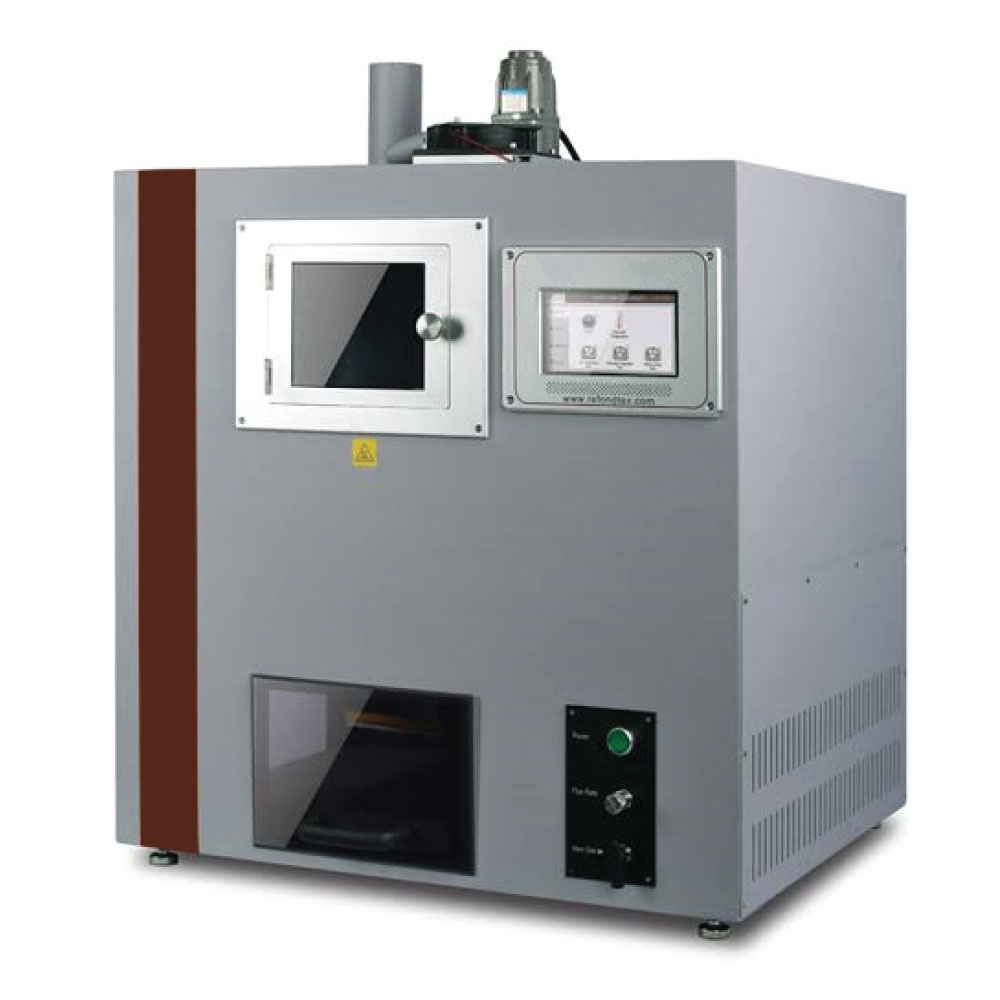

Gas Fume Chamber
Gas Fume Chamber evaluates textile colorfastness to nitrogen oxides. ISO/AATCC compliant, touchscreen-controlled, safe, accurate, with multiple sample clips for simultaneous testing.
- Tests colorfastness of textiles under nitrogen oxide exposure (AATCC 23, ISO 105 G02 compliant)
- Touchscreen LCD with adjustable temperature (room temp–65°C) and sample rotation
- Safety features include gas leakage detector, flame detector, and electromagnetic door lock
Gas Fume Chamber is used to determine the colorfastness of textiles when exposed to atmospheric oxides of nitrogen as derived from the combustion of natural gas.
Test Scope
For all textiles except loose fiber
Testing Standards
AATCC 23、ISO 105 G02、GB/T 11039
Consumables
Gas Fading Control Fabric
Specification
- 7-inch touch screen LCD display
- The rotation speed of sample rack: 0-8 rpm (adjustable)
- Exhaust fan, Pressure Regulation fan and Air Circulating fan can be set through the touch screen
- Sample Clip: 16 pcs (Stainless Steel)
- Chamber Temp: room temp to 65℃.
- Gas Leakage Detector: 2 units.
- Flame Detector: 1 unit.
- Explosion-proof Gas Control Valve
- Electro-magnetic Door Lock.
Why Choose Gas Fume Chamber?
The Gas Fume Chamber is ideal for textile manufacturers, laboratories, and research institutions that require precise evaluation of colorfastness under gas exposure conditions. Compliant with international standards such as AATCC 23, ISO 105 G02, and GB/T 11039, it ensures reliable and reproducible results. The chamber’s touchscreen LCD allows easy adjustment of rotation speed, temperature, and fan settings, while 16 stainless steel sample clips enable simultaneous testing of multiple samples. Safety is paramount, with features like explosion-proof gas control valves, flame detectors, gas leakage alarms, and electromagnetic door locks. Its combination of advanced control, high safety, and precision testing makes it indispensable for ensuring textile quality and durability under environmental stress conditions.
