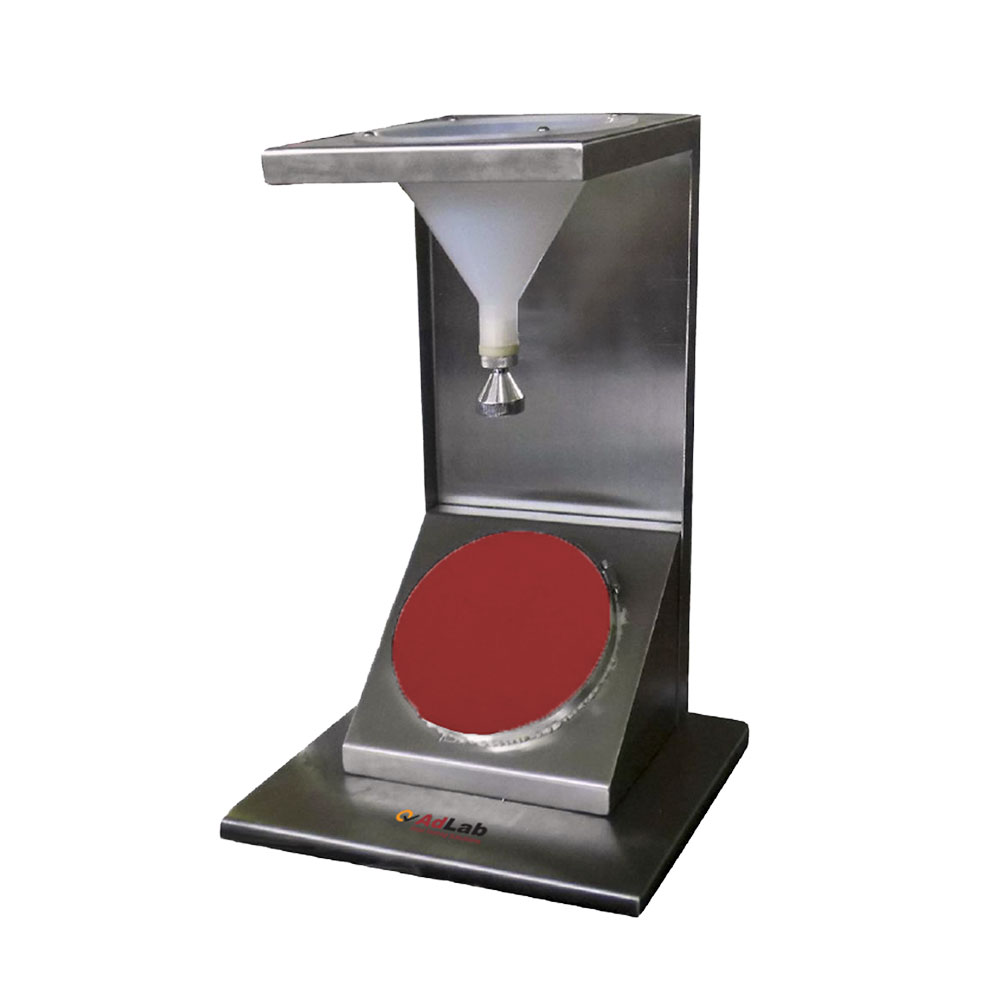

Spray Rating Tester

Application

Spray Rating Tester is used to determine the resistance of any fabrics, which may or may not have been given a water-repellent finish, to surface wetting by water. It is not intended to predict waterproofness, since it does not measure the penetration of water through fabric. color or appearance occurs. It is not applicable to fabrics having a long pile or surface coating.

Related Standards

ISO 4920              AATCC 22             JIS L1092

Note: this tester can conform to but not limit to the standards above, for more standards conformance, please contact us.

Features

• Main parts made by stainless steel, durable in use;
• Special designed specimen holder;
• Easy operation.

Key Specification

• Glass funnel – Ф150mm×150mm
• Specimen gradient – 45°
• Distance between nozzle and center of specimen – 150mm
• Diameter of specimen holder – Ф155mm
• Dimensions – 400×380×560mm (L×M×H)
• Net – 8kg

Standard Configuration

• Main machine – 1 set
• Specimen holder – 1 set
• 500ml beaker – 1 pc
• Water collecting tray – 1 pc

Optional Accessories

AATCC Spray Test Rating Chart

Why Choose Spray Rating Tester?

The Spray Rating Tester is essential for textile laboratories and manufacturers aiming to assess the water repellency performance of fabrics. It operates according to standards such as ISO 4920, AATCC 22, and JIS L1092, providing consistent and reproducible results. Its stainless-steel body ensures durability, while the specialized specimen holder guarantees correct positioning and uniform testing. The instrument is simple to operate and requires minimal setup, making it suitable for both routine quality control and detailed research. With precise nozzle-to-specimen alignment and adjustable gradient, the tester ensures accurate surface wetting measurements. Lightweight (8 kg) and compact (400×380×560 mm), it is convenient for lab use and transport. Ideal for evaluating fabrics with or without water-repellent finishes.
