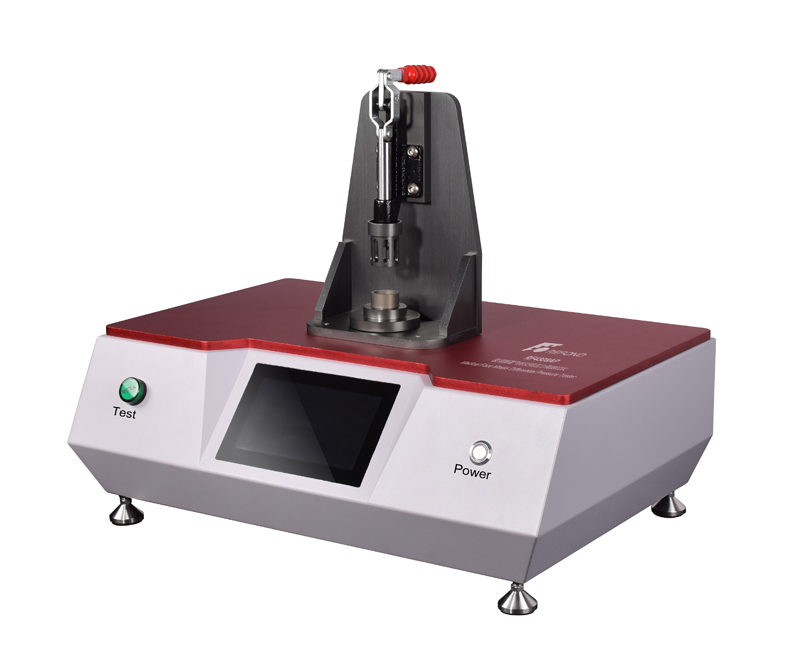

Medical mask gas exchange pressure difference tester Medical Face Masks Differential Pressure Tester

Model: RF4308AP

Medical mask gas exchange pressure difference tester is an instrument used to test the breathability (pressure difference) of medical masks.

Install the mask sample on a channel (fixture) with a fixed cross-sectional area, start the vacuum pump, and the air flow of a specific flow rate will produce a certain pressure difference between the upper and lower sides of the test sample, thereby calculating the ventilation performance of the mask.

RF4308AP tester, built-in precision air pump, flow sensor, differential pressure sensor, single-chip control, precise control of flow rate and differential pressure measurement.

Scope of medical masks;

Applicable standards

Specifications:

1. Flow rate: 8L/min, accuracy 0.2L/min;
2. The area of ​​the test area: a circular cross section with a diameter of 25 mm ± 1 mm (area of ​​4.9 cm2);
3. Differential pressure range: 0-1000Pa, accuracy 1%, resolution at least 1Pa;
4. 7″ color touch screen, precise control and simple operation;
5. Automatic flow control and automatic calculation of pressure difference;
6. Easy and fast operation;

Order Item No. RF4308AP Medical Mask Tester
