Mettler Toledo pH/Conductivity/DO Meter NineFocus NF2340
Mettler Toledo NineFocus NF2340 provides accurate multiparameter laboratory analysis with modular expansion, intelligent sensor diagnostics, and secure data management.
- Simultaneous measurement of pH, conductivity, dissolved oxygen, ion concentration, ORP, TDS, and salinity
- Modular four-channel system with intelligent sensor diagnostics and One Click™ touchscreen
- GLP-ready data management with user access control, USB connectivity, and expandable measurement capability
Mettler Toledo pH/Conductivity/DO Meter NineFocus NF2340
High-performance, multiparameter benchtop meter for compelling precision in pH, conductivity, ion concentration, redox, and dissolved oxygen determinations.
- Designed to Evolve: Measures up to 4 parameters with a built-in digital module (DMM). Adding modules expands the analysis productivity.
- Data integrity: The fully flexible user management allows to tailor user groups to suit any need or situation and protects settings from unwanted changes. Full compliance support with automatic data transfer and full compliance with industry regulatory standards.
- Fast problem-solving: Sensor diagnostics with user guidance for troubleshooting reduces downtime, monitors sensor condition along its full lifespan, and minimizes errors.
- Flexible footprint on bench: Detachable terminal with 7 in. touch screen for flexible placement options, increasing usability and convenience.
- Simple operation: The intuitive One Click™ user interface in 14 languages to check results with a single click simplifies operation, saves time, and reduces errors.
- Resilient: The IP52 rating protects the instrument from dust ingress and water splashes from any direction and prevents corrosion.
- Maximum Sensor Flexibility:
- Full compatibility with analog sensors (e.g., InLab ISM sensor) using an analog module

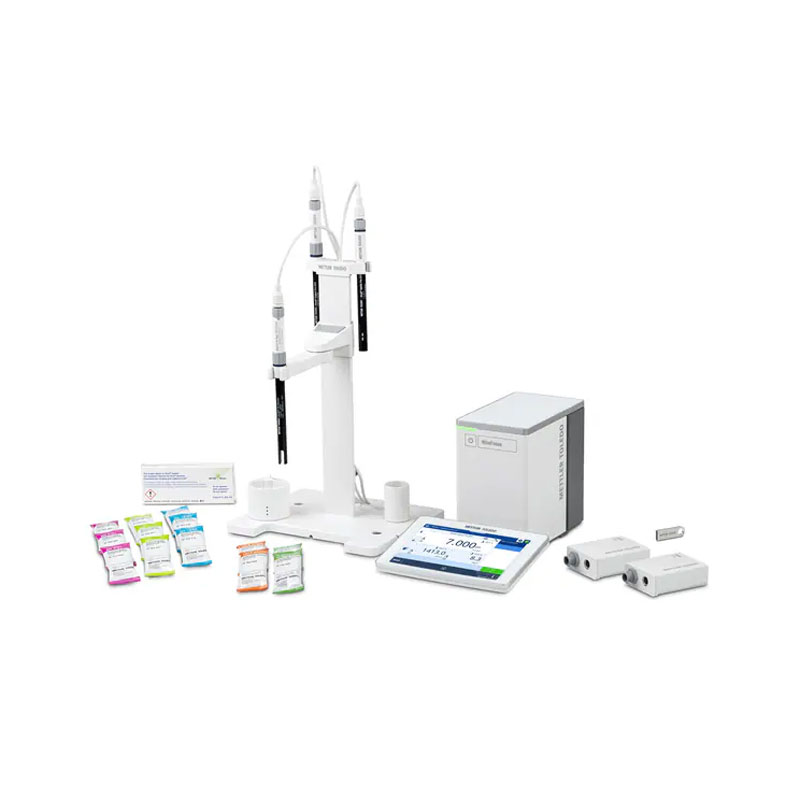

- The NF2340 Kit includes 3 measurement modules, InLab Expert Pro-DES, 731 Pro-DES and OptiOx Pro-DES sensors, an electrode arm and standards for initial calibration
Specification
| Accuracy | -30 to 130°C |
| Accuracy (Conductivity) | 0.5 % |
| Accuracy (DO) | ±0.1 mg/L from 0 – 8; ±0.2 mg/L from 8 – 20; ±10% from 20 – 50 |
| Accuracy (mV) | 0.1 |
| Accuracy (pH) | 0.002 |
| Accuracy (Polarographic DO) | ±0.1 mg/L from 0 – 8; ±0.2 mg/L from 8 – 20; ±10% from 20 – 50 |
| Backlight Option | Yes |
| Calibration | pH, ORP, Ion Concentration, Conductivity, TDS, Salinity, DO, Barometric Pressure, Temperature |
| Calibration Modes | Calibration Support, Guided verification, Multilingual Menu, Simple Methods, Touch screen |
| Calibration Points (ISE) | Up to 5 |
| Certifications/Compliance | CE, WEEE, RoHS |
| Data Management Details | PC, Printer, USB stick |
| Data Points | 2000 |
| Channels | 4 (Customizable with modules) |
| Display Type | Color TFT (7 in.) |
| IP Rating | IP52 |
| Measurement Modes | pH with mV and Temperature, Conductivity, Dissolved Oxygen |
| Range (Conductivity) | 0.001 μS/cm to 2000 mS/cm |
| Resolution (pH) | 0.001, 0.01, 0.1 |
| Temperature Range (Metric) | -30°C to +130°C |
| Languages | Chinese Simplified, Chinese Traditional, English, French, German, Italian, Polish, Portuguese, Russian, Spanish, Thai, Turkish |
| Log Function Type | Automatic by Interval or Event, Manual |
| Memory | 3000 Result Sets |
| Model | NF2340 KIT |
| Product Type | pH/Conductivity/DO Meter |
| Range (DO) | 0.000 to 50 mg/L (ppm) |
| Range (Polarographic DO) | 0.000 to 50 mg/L (ppm) |
| Range (Relative mV) | -2000 to 2000 mV |
| Resolution (Conductivity) | 0.001 to 0.1 |
| Resolution (DO) | 0.001 |
| Resolution (mV) | 0.1,1 |
| Temperature Accuracy | ±0.1°C between 0°C and 100°C |
| Temperature Resolution | 0.1°C |
| Dimensions (L x W x H) | 40 x 30 x 34 cm |
| Length (Metric) | 40 cm |
| Width (Metric) | 30 cm |
| Height (Metric) | 34 cm |
| Weight (Metric) | 2 kg |
| Voltage | 100/240 V |
Why Choose Mettler Toledo NineFocus NF2340?
The Mettler Toledo NineFocus NF2340 combines advanced measurement technology with outstanding flexibility for modern laboratory applications. Its modular design allows users to expand the system as analytical requirements evolve, while the four-channel architecture supports simultaneous multiparameter analysis. The intuitive One Click™ touchscreen interface simplifies daily operation and reduces training time. Intelligent sensor diagnostics continuously monitor sensor performance, guide troubleshooting, and help minimize downtime. Flexible user management protects instrument settings and supports regulatory compliance through secure data handling and automatic data transfer. The detachable 7-inch touchscreen improves workspace organization, while the IP52-rated construction protects the instrument from dust and water splashes. With compatibility for pH, conductivity, dissolved oxygen, ion, ORP, salinity, and TDS measurements, the NF2340 delivers reliable performance across demanding laboratory environments.
