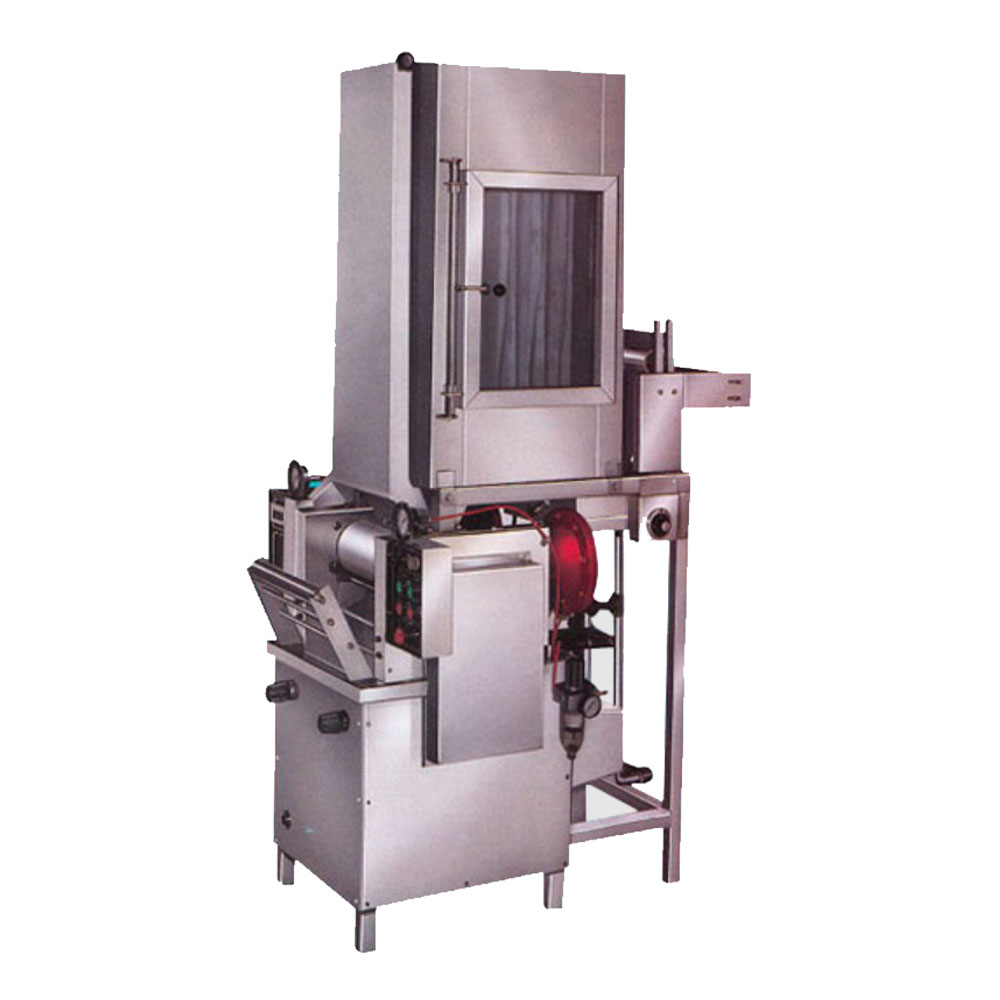

Pad-Steam Machine PS-JS

Pad-Steam Machine PS-JS

Suitable for carrying out all PAD-STEAM processes with saturated steam, offers the shortest distance between padding mangle and steaming chamber.

The range mainly comprises:

• Horizontal Type Rollers: Diameter 125mm* Length 300mm or 500mm

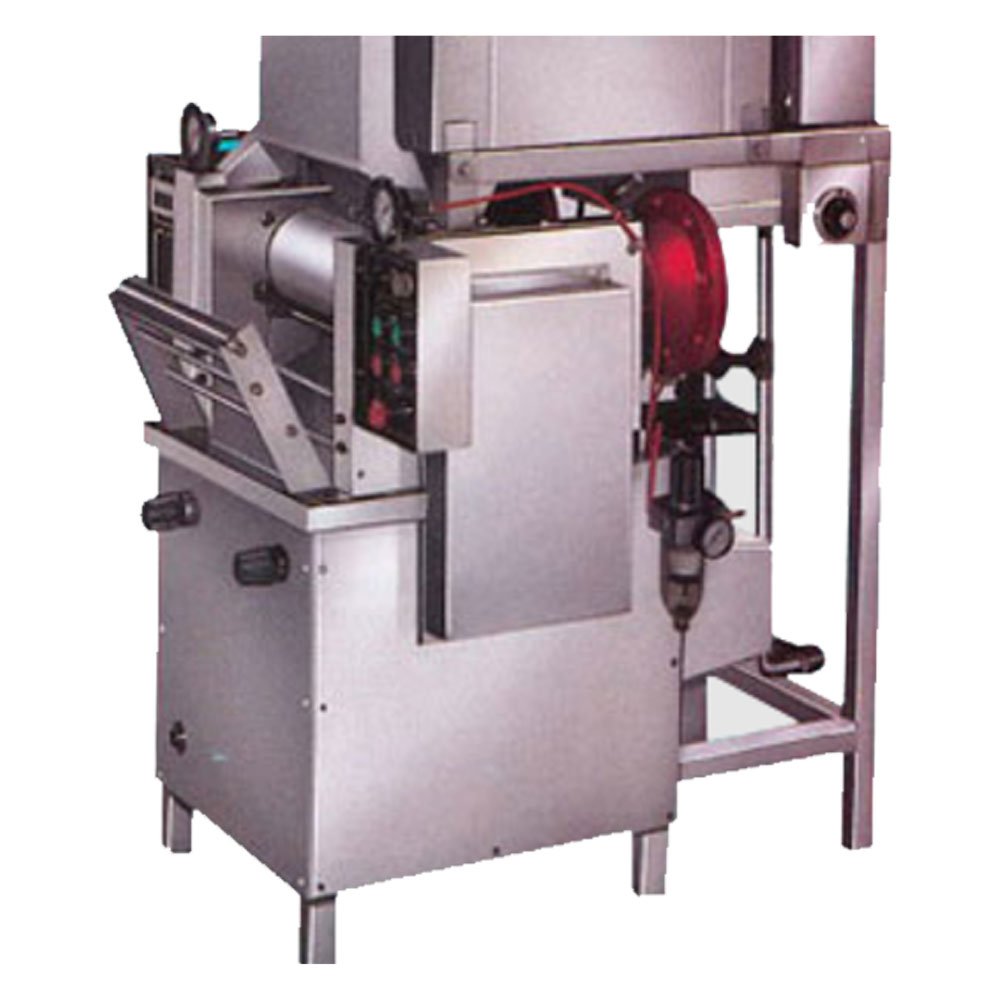

• Horizontal type with two padding rollers, pneumatic pressure application.

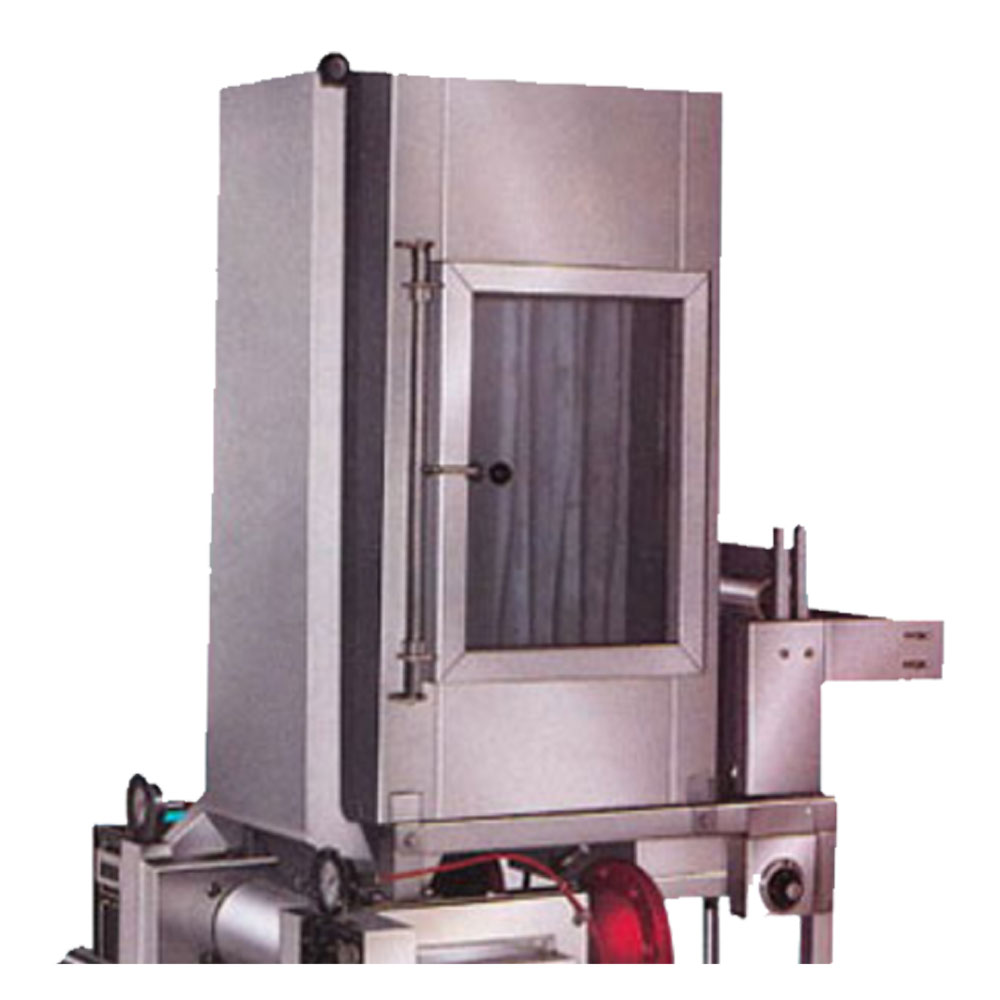

• Steaming chamber with fabric holding capacity of 6 M, with double glazed visual window.
• Adjustable fabric speed control, standard dwell time inside the steaming chamber from 20-120 sec with digital indication type.
• Chemicals trough provided about 500 cc capacity with automatic drop-off and spray washing.
• Water sealed bath with temperature regulator for automatic cooling control.
• Temperature range between 98℃ and 102℃ with digital type.
• Option for Steam generator.
• On request PS-JS can be combined with 4~5 section washing machine.
• 600 mm working width is available on request.
