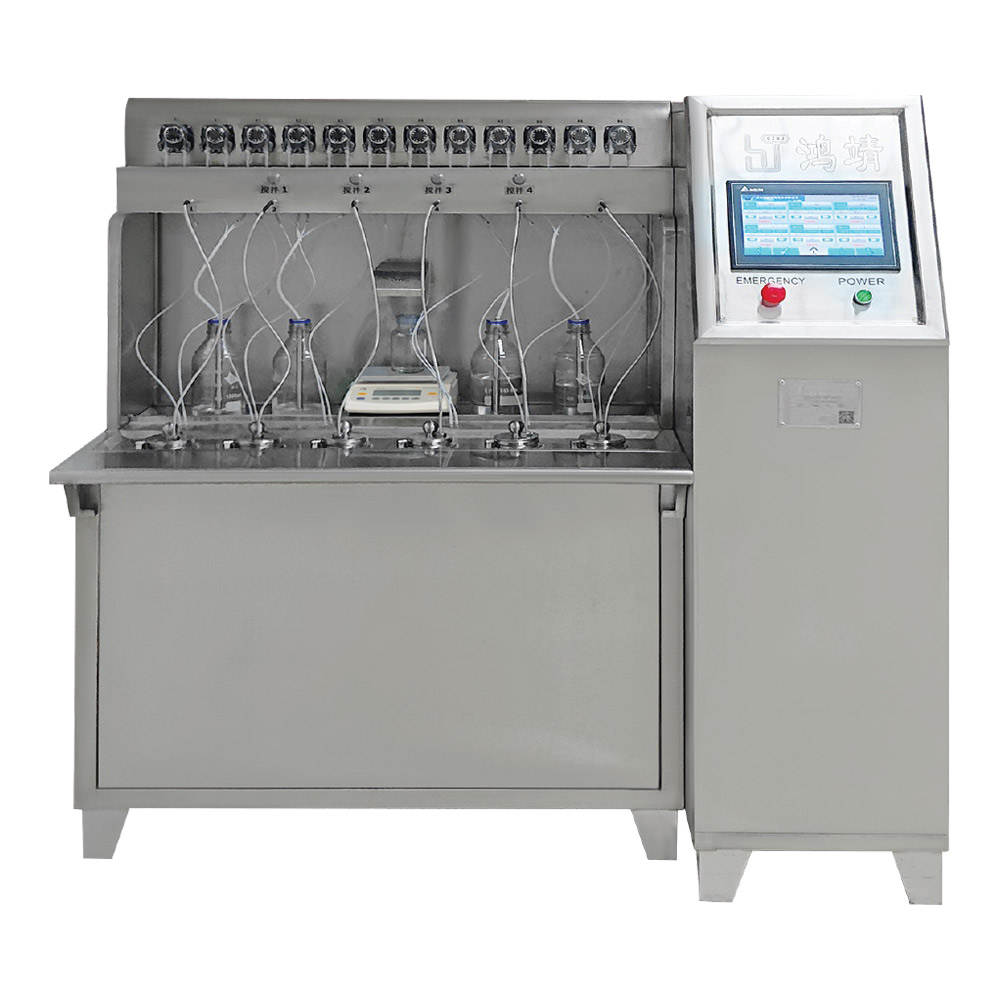

Precision Yarn Dyeing Machine with Automatic Dosing System

Use for sample dyeing in normal temperature and high temperature, fabric and yarn 10~30g can be loading per dye cup with bath ratio as low as 1:4-1:6. Simulated field process two kinds of auxiliary agents are timed and quantitative feeding. The temperature of each cup is controlled independently. Magnetic stirring, and the dye circulation is evenly permeated.

Beaker No.: 6

Beaker Capacity: 10-30gm

Beaker Size: 600ml

Feeding Speed: 0.1-2.0ml/min

Heating Rate: 0.1-3.5°C/min

Temp Range: 20 ~ 135°C

Power Supply: 3Phase AC380V/50Hz/5 kW

Dimensions (LxWxH): 1020 x 590 x 750 mm

Weight: 75kg
