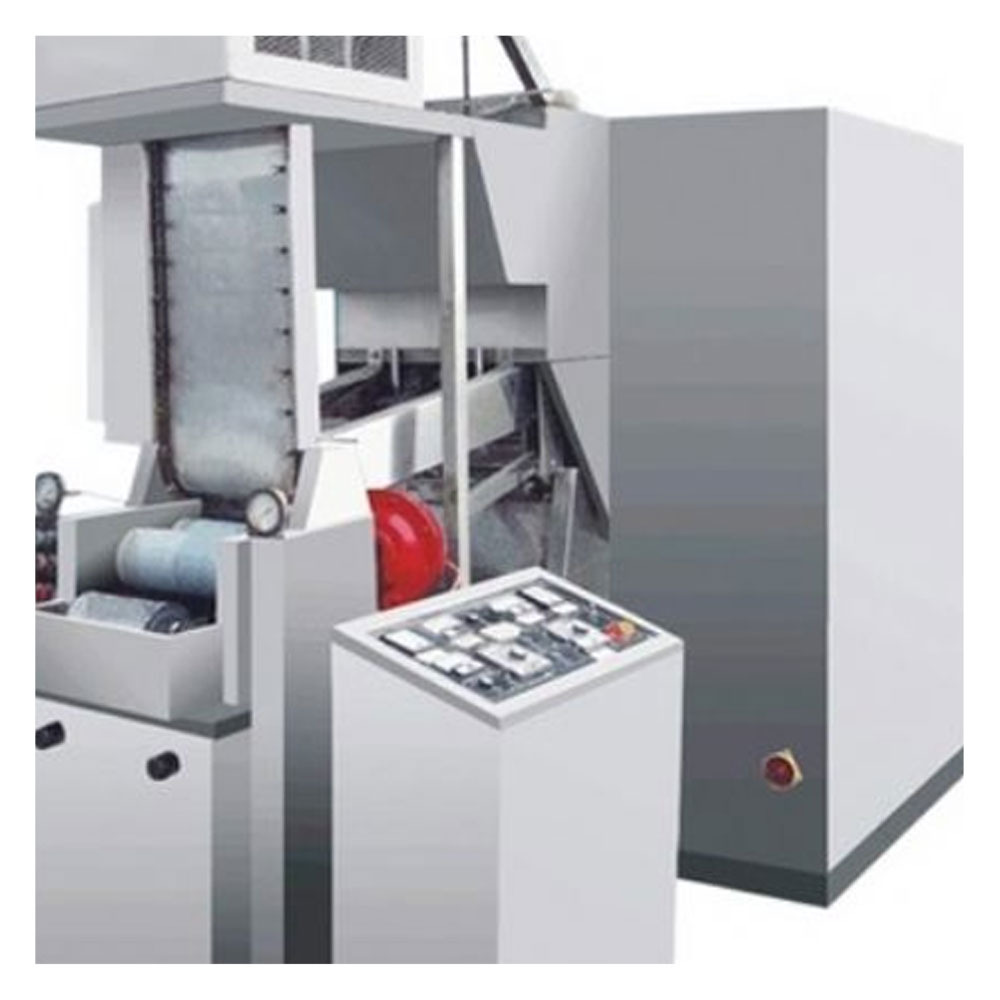

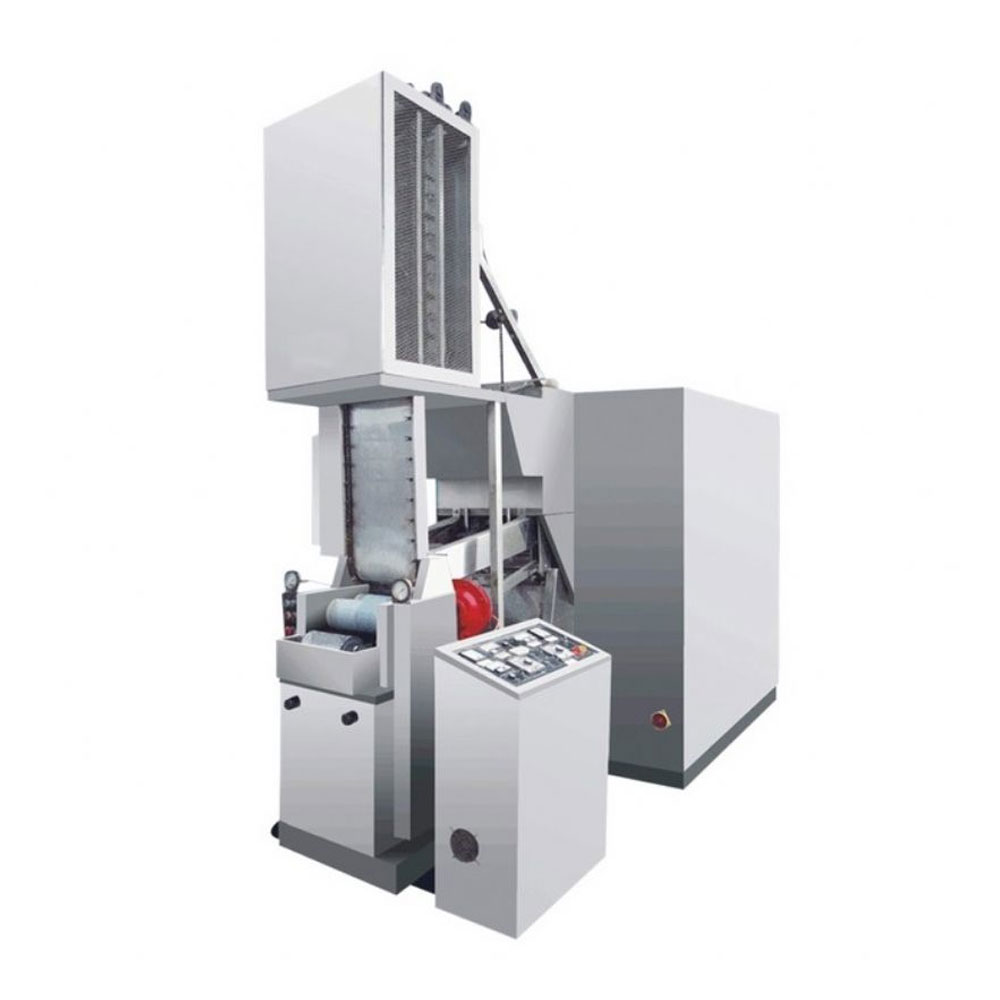

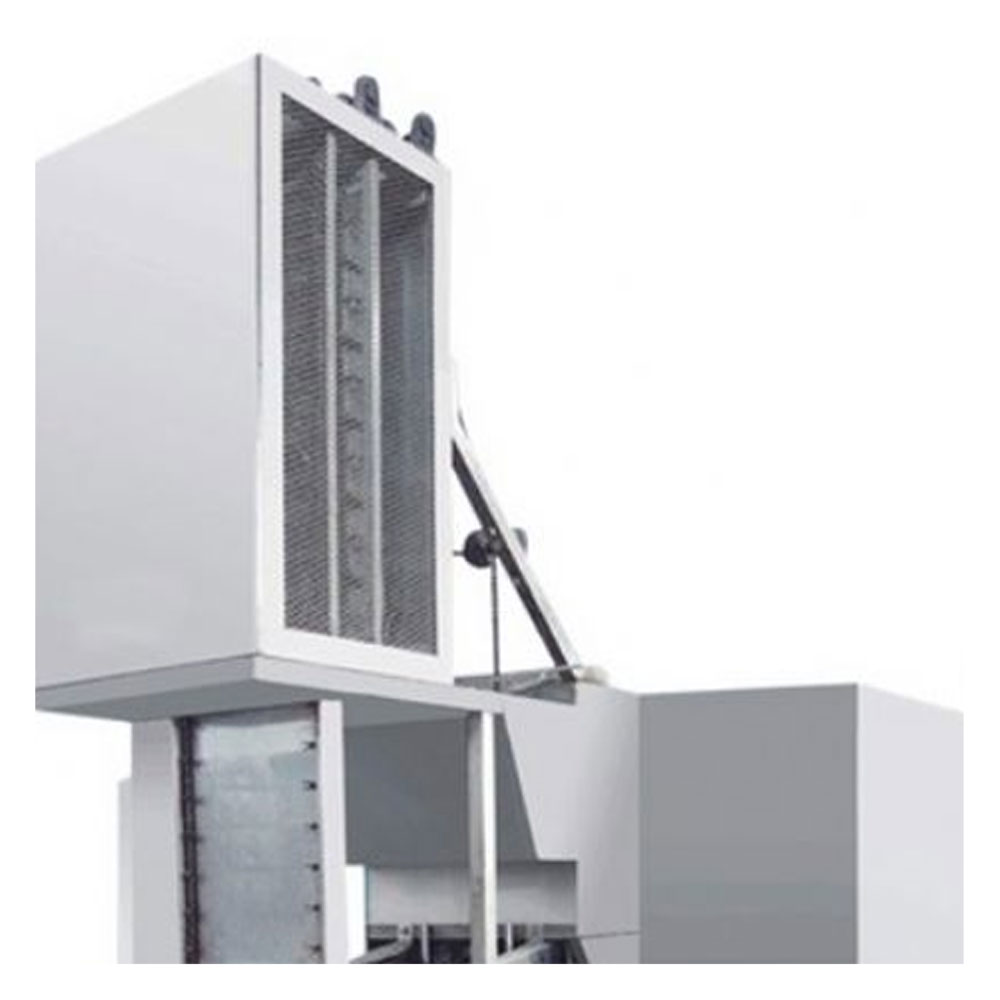

Pad-Thermosol Dyeing Machine PT-J

Pad-Thermosol Dyeing Machine PT-J

This machine can simulate the process of production. After padding, the samples are fixed onto the chain by clipped stick. Through these IR Pre-drying, drying, and thermosol processes, the samples will be delivered to the trough finally. The procedure can be changed according to users’ need.

Horizontal type rollers: Diameter 125mm x Length 300mm or 500mm

Pad → IR heater pre-dry → Drying → Thermosol

• Special sample holder design is easy to operate and save time
• One set of dyeing tanks, include 4 sinks
• 12 pcs of infra-red heater for pre-drying total electrical power are 4.8KW
• The length of dryer：1800 mm, heater：10kw, temperature control：100-180, Using circulatory heating fan
• The length of heat fused dyeing：1500mm, heater：10kw, temperature control：250_+1%, Using circulatory heating fan
