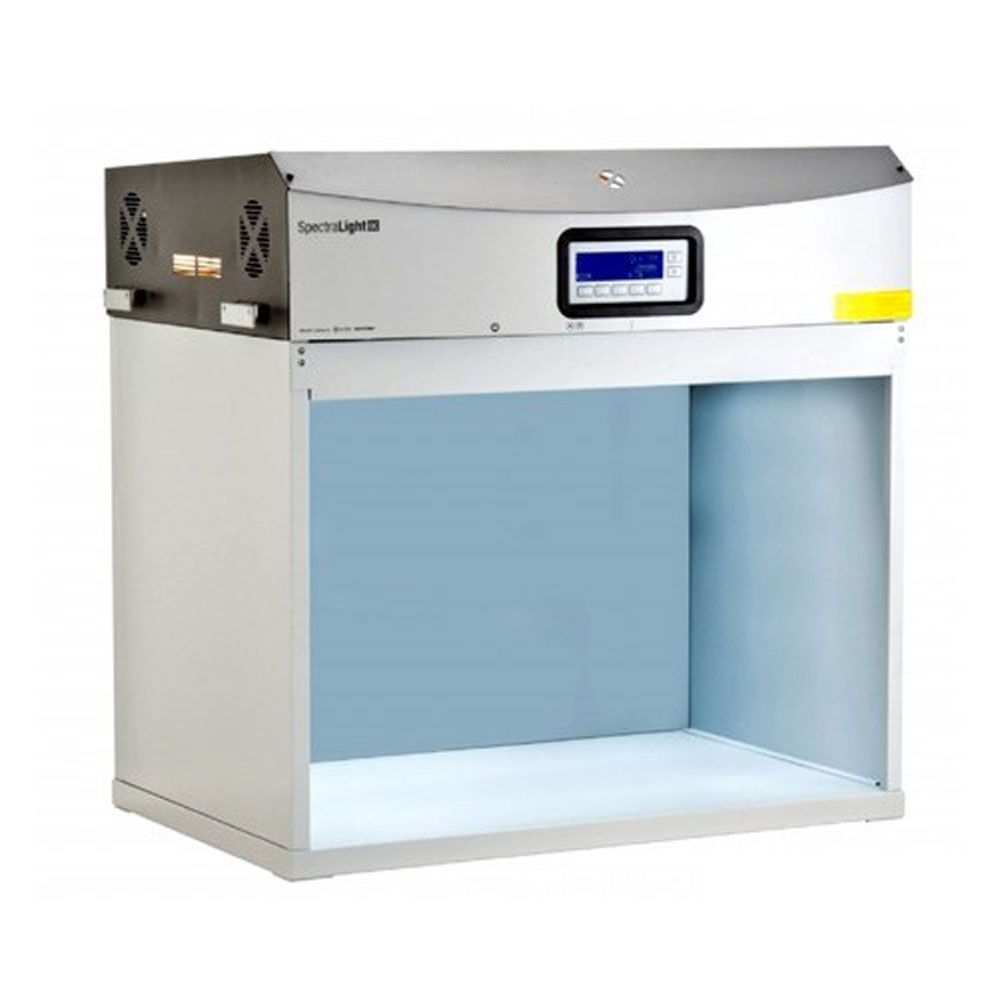

SPL QC Light Cabinet

The SpectraLight QC is the light booth of choice for color-critical visual assessment of large and small items under daylight and other lighting conditions; includes 7 light sources.

Control Lighting Conditions

Consistent quality control in color-critical product categories is finally possible thanks to the SpectraLight QC light booth and luminaire. This holistic visual color assessment system features state-of-the-art light sources, including natural filtered daylight, making it easy to meet practically any specification. A data-driven back-end ensures inter-instrument agreement across the supply chain, allowing unprecedented reporting and traceability on unit settings, lamp performance, operator certifications, and more.

The SpectraLight QC features seven light sources, more than any other light booth or luminaire on the market. This includes CIE Daylight, Cool White Fluorescent, Incandescent “A” & 2300K/Horizon, UVA, and two more fluorescent types (choice of U30, U35, TL83, and TL84). Profiles can be created to share preferences and settings across the supply chain.

Benefits

Filtered tungsten halogen daylight provides the most accurate daylight simulation available for optimum visual assessment.
Built-in sensors automatically adjust fluorescent lamp voltage to achieve instant stability and compensate for changes in lamp performance after many hours of use.
Every instrument starts with exacting UV calibration. Built-in sensors monitor and correct UV output to maintain inter-instrument agreement.
Real-time digital lux output can be adjusted to comply with ASTM and AATCC standards based on the sample type or user needs.
X-Rite replacement lamps are marked with unique serial numbers to ensure consistent performance and better traceability.
If you are moving to an LED light source. our LED lamp kit is an excellent option for your light booth. It provides exceptional color rendering using the same hybrid technology as the LED-BH1 CIE illuminant. This lamp kit is sold separately.

Specifications

Lamp Life- 400-2000hrs
Light Level Adjustment- Digital
Light Level Sensor- Yes
Light Source- Daylight Light Source: D50 or D65
Fluorescent Light Source: CWF, UVA, and two of U30, U35, TL84
Incandescent Light Source: CIE A, ‘Horizon’ a dim incandescent at 2300K
Total Light Sources: 7
Humidity: Rh 0 to 95% max (non-condensing)
Operating Temperature Range- 32°F to 95°F / 0°C to 35°C
Storage Temperature Range- -40°F to 158°F / -40°C to 70°C
Material- Steel
Viewing Area (length, width, height)- 35 in x 23 in x 23 in / 90 cm x 58 cm x 58 cm
Dimensions (length, width, height)- D 24 x H 27.6 x W 37.2 in / D 610 x H 700 x W 945 mm
Communication Interface- Touchpad
Instrument Display- LCD Screen
Languages Supported- English/Chinese
Voltage- 100, 115, 230V
Warm Up Time- Instant On
Wattage- 1150W
