Tilting Table

Accurately evaluate color on difficult and glossy samples

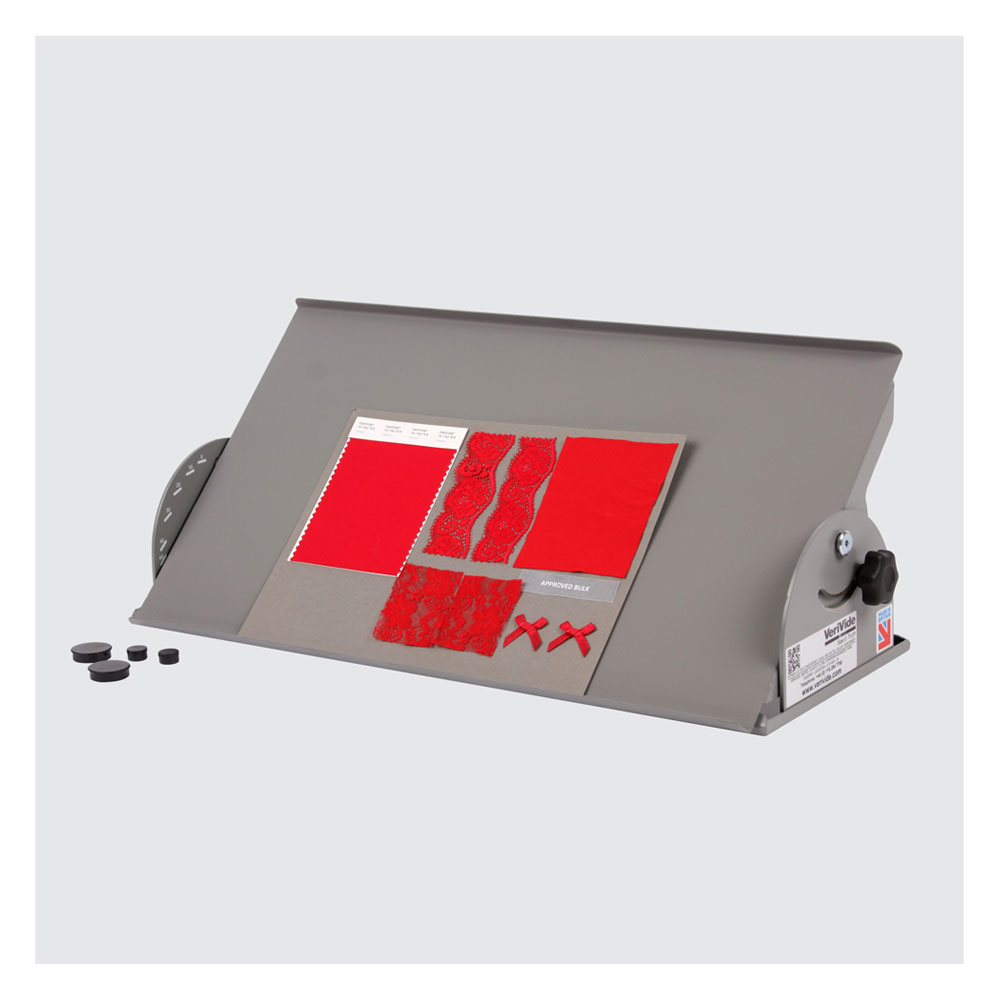

The VeriVide Tilting Table is designed to offer multiple viewing angles for the assessment of color and appearance. The Tilting Table enables you to accurately evaluate color, even on difficult samples such as surface coatings, vehicle finishing, metallic or pearlescent materials and foil manufacture.

Adjust the angle such that the specular reflection from glossy surfaces reduces or disappears enabling assessment of the base color in the same way as a matte surface.

The user can set and lock a range of angles, creating standardized and repeatable viewing conditions for visual assessment of various substrates.  Simply note the best angle to view a product or substrate and communicate this to your team and suppliers in your product specification guidelines.

The Titling Table is ideal for color fastness assessment too, as it can be fixed at a 45° angle, adhering to British Standard ISO 105 (A02 and A03). VeriVide’s Magnetic Grading Mask makes the evaluation of grading easier, allowing greyscale adjustment. This is available for purchase with the Tilting Table.

Features

• Four matt black magnets come with the Tilting Table to hold the samples in the viewing surface
• Magnetic Grading Mask is available at an additional cost for users assessing color fastness.
• Multiple viewing angles are possible

Benefits

• Repeatable and standardized environment for color quality control
• Flexibility for users to view samples in different viewing angles when required

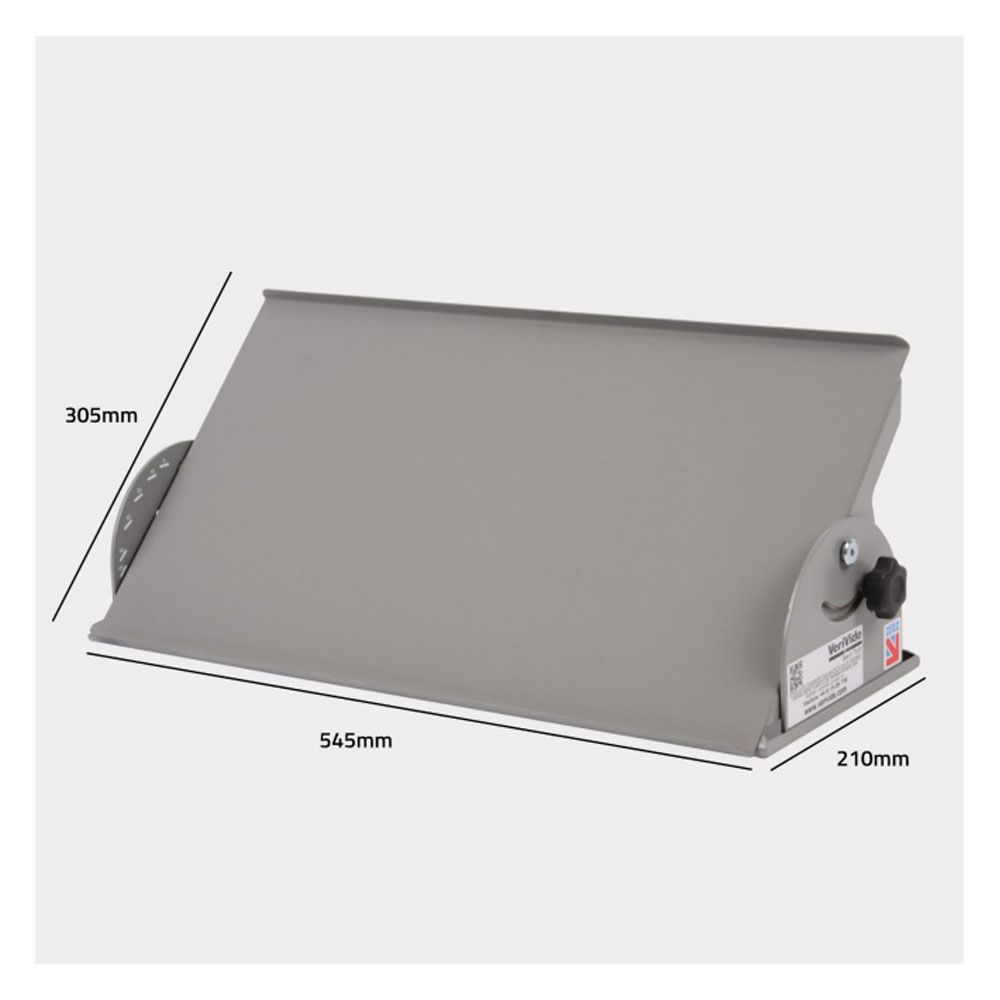

Dimensions

Test Methods & Standards

ASTM D1729

ISO 105-A02:1993

ISO 105-A03:2019

ISO 3668:2017

Extra Specification

• AATCC Evaluation procedures 1,2 + 9 (Table Only)
• ISO 3668 Paints and Varnishes: Visual Comparison of the Colors of Paints
• ASTM D1729: Artificial Daylight for the Assessment of Color: Part 1 Illuminant for Color matching and color appraisal
• Paint colors: Munsell N5, Munsell N7 or VeriVide G 5574
