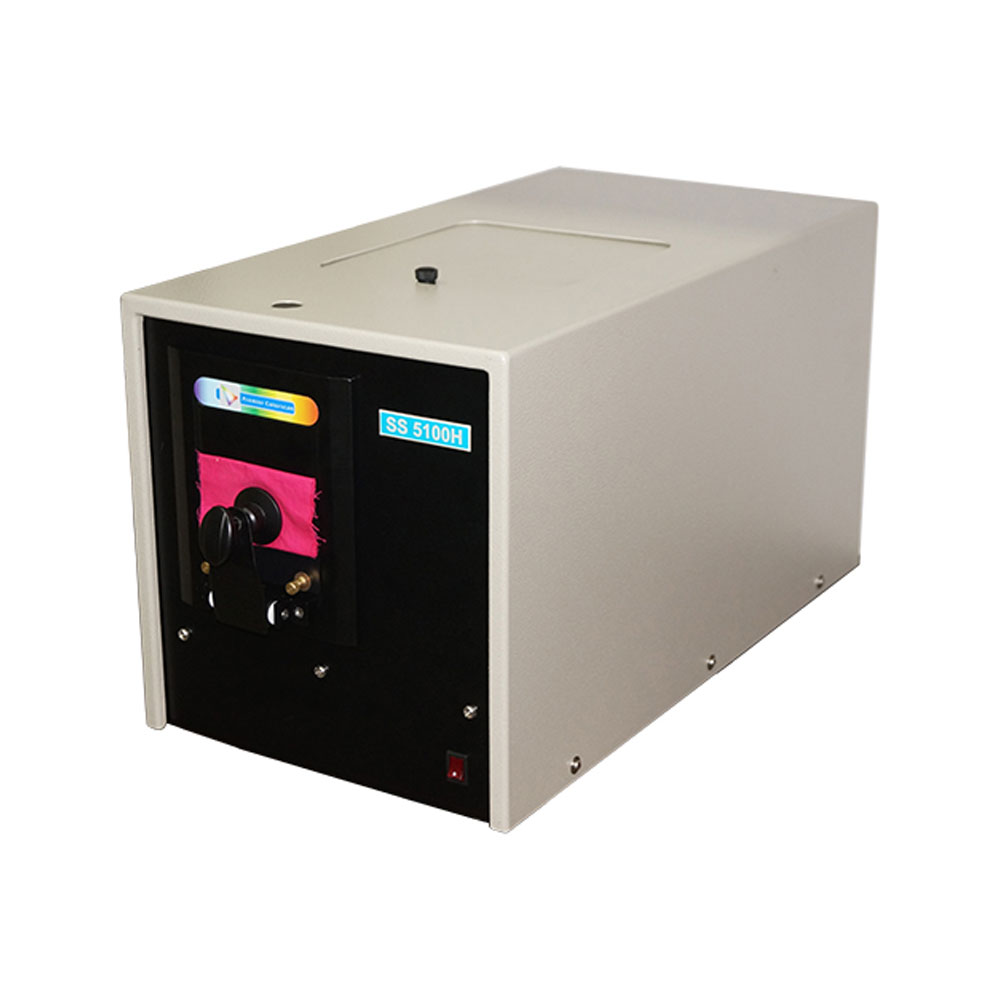

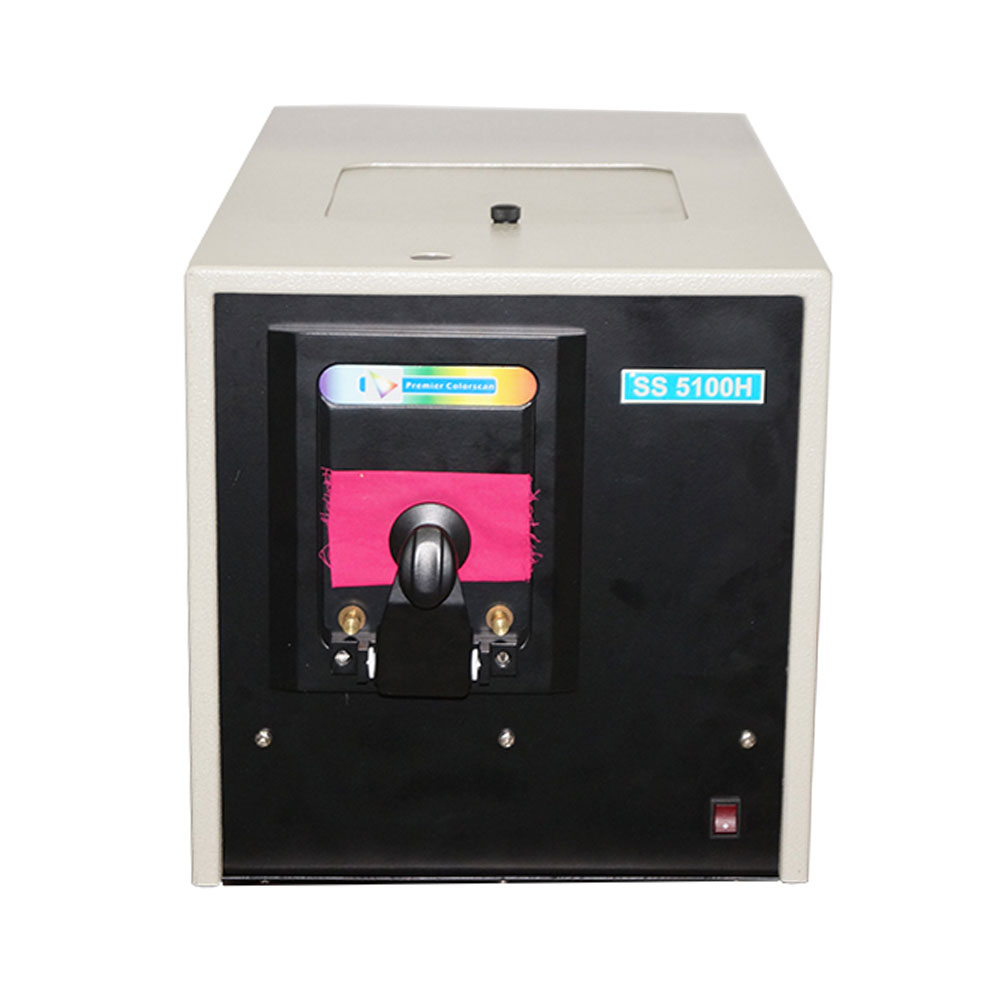

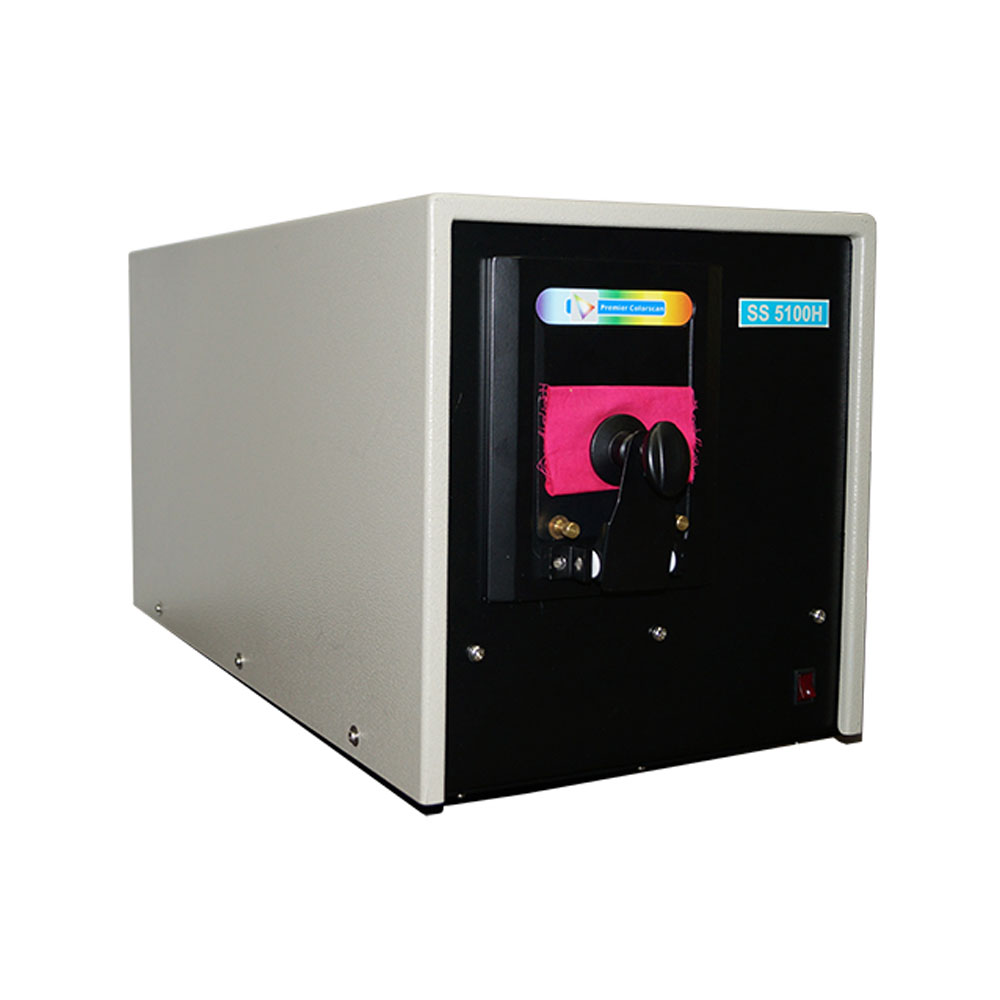

SS 5100H Spectrophotometer Premier Colorscan

SS 5100H Spectrophotometer Premier Colorscan has sophisticated design. The integrating sphere conforms to CIE/ASTM specifications for size, which is 152 mm diameter. The source is a very stable long-life Xenon flash lamp which is carefully filtered to D65.

SS 5100H Spectrophotometer has been designed to be sturdy in lab and production conditions. As the design is modular, servicing can be done at customer site.

Specification

• Measurement modes: % Reflectance
• Measurement Principle: Dual Beam
• Integrating Sphere Dimension: 152 mm Diameter
• Light Source: Pulsed Xenon
• Wavelength Range: 400 nm to 700 nm
• Wavelength Interval: 10 nm
• Photometric Range: 0% To 200%
• Viewing Geometry: D/8
• Wavelength Accuracy: 0.1nm (Avg.)
• Repeatability: Less than 0.1 DE* CIELAB (White Tile)
• Inter Instrument Agreement (Lav): 0.15 DE* CIELAB (Max.)
• Measurement Time: 2 Sec.
• Large Area View (Lav): 25.4 mm Diameter
• Small Area View (Sav): 12.0 mm Diameter
• Specular Component: Include/Exclude
• Operating Temperature: 15°C to 32°C
• Relative Humidity: <90% non-condensing
• Electrical Requirements: 110-120Vac/50-60 Hz. Or 230-240 Vac/50-60 Hz.
• Size: 61cm × 29.5cm × 33cm
• Weight: 21Kg Approx

Variety of applications.

Routine Measurements: The convenient measurement port allows users to easily measure samples such as paints, plastics, textiles, leathers, papers, and food products. A drop-down view helps users align samples accurately before each measurement, ensuring consistent results.

Awkwardly Shaped Samples: Users can measure irregular or awkwardly shaped samples by simply removing the sample-holding assembly, making the process quick and flexible.

Liquids and Clear Films: An optional transmission chamber with dedicated accessories allows users to measure the transmittance of liquids and thin clear films. The design provides stable sample positioning for reliable and repeatable results.

Food Products: The vertical mounting arrangement makes it easy to measure pulps, juices, and concentrates, ensuring precise readings even for semi-liquid or viscous food samples.

Fluorescent Dyes and Pigments: Fluorescent samples typically absorb light in one part of the visible spectrum and emit it in another. To study such materials effectively, users must eliminate radiation below a specific wavelength within the visible range. The spectrophotometer offers optional visible filters that cut off unwanted radiation in controlled wavelength steps. These filters attach easily in place of the UV filter.

For example, a 460 nm filter blocks all wavelengths below 460 nm and passes light between 460 nm and 740 nm, allowing accurate analysis of fluorescent samples.

Measurement of optically brightened samples (Need to order extended wavelength range 360 nm to 730 nm):

• This is possible because of the provision of a UV cut-off filter.
• Photometric range is 0 to 200% reflectance.
• Measurement at 360 nm makes the study of optical brightening agent more useful.

Measurement of Capsules, Tablets, Health Care Products, Yarn, Powders, Hanks and Granules: Individually designed accessories help you to measure any unconventional samples.

Why Choose SS 5100H Spectrophotometer?

Choose the SS 5100H Spectrophotometer Premier Colorscan for its robust design, precision, and versatility across industries. Its dual-beam system with a 152 mm integrating sphere ensures superior accuracy in reflectance measurements. The D/8 viewing geometry and stable Xenon D65 light source deliver reliable results that meet international CIE and ASTM standards. Designed for both routine and advanced applications, it measures solids, powders, liquids, and even fluorescent materials with precision. The removable sample holder accommodates awkwardly shaped samples, while optional filters allow accurate analysis of fluorescent dyes. Easy servicing, fast 2-second measurements, and modular construction make the SS 5100H ideal for laboratories and production lines demanding consistent, high-quality color data.
