X-Rite Spectrophotometer

Establish the Strictest Color Standards

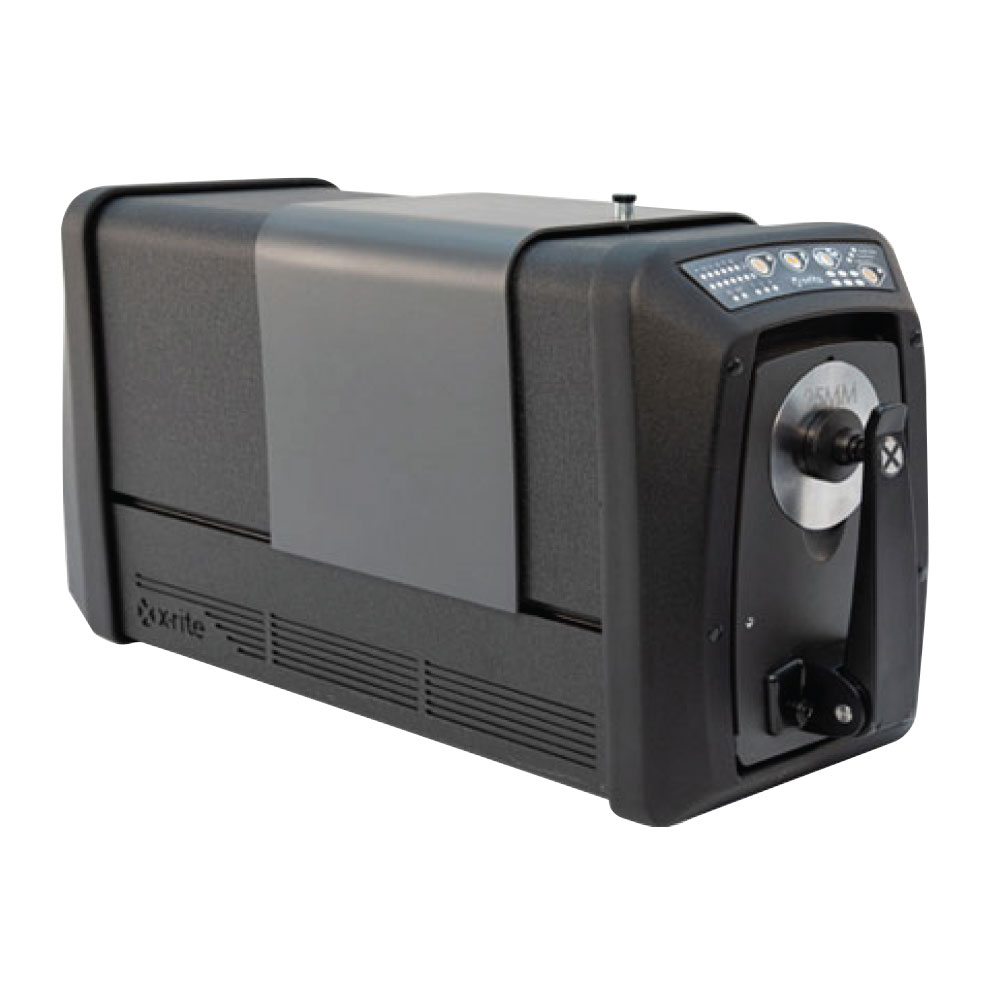

X-Rite Spectrophotometer, Creating standards requires the most advanced color measurement instrument available. The Ci7860 delivers 25% tighter specifications than any other industrial instrument, consuming less of the tolerance allocated for color variation with instrument variability. Built-in temperature and humidity sensors ensure the environment is suitable, and embedded Net Profiler status lights verify the device is optimized for each measurement. Standards created with the Ci7860 can be used for each stage of the product development process, from formulation to final production to quality control.

• Inter-Instrument Agreement: ≤0.06 dE*
• Repeatability: ≤0.01 dE*
• Device Geometry: d/8° Sphere

Features

Versatile Control for Opaque, Transparent, Translucent, and Brightened Samples: The machine offers up to five reflectance and four transmission apertures to measure color and appearance on a wide range of samples in port up, port down, and port forward positions. It can be fitted with various accessories to measure textured materials, odd shapes, liquids, powders, and gels, and uses up to 3 UV filters to control optical brighteners in textiles, plastics, paint, coatings, and paper.

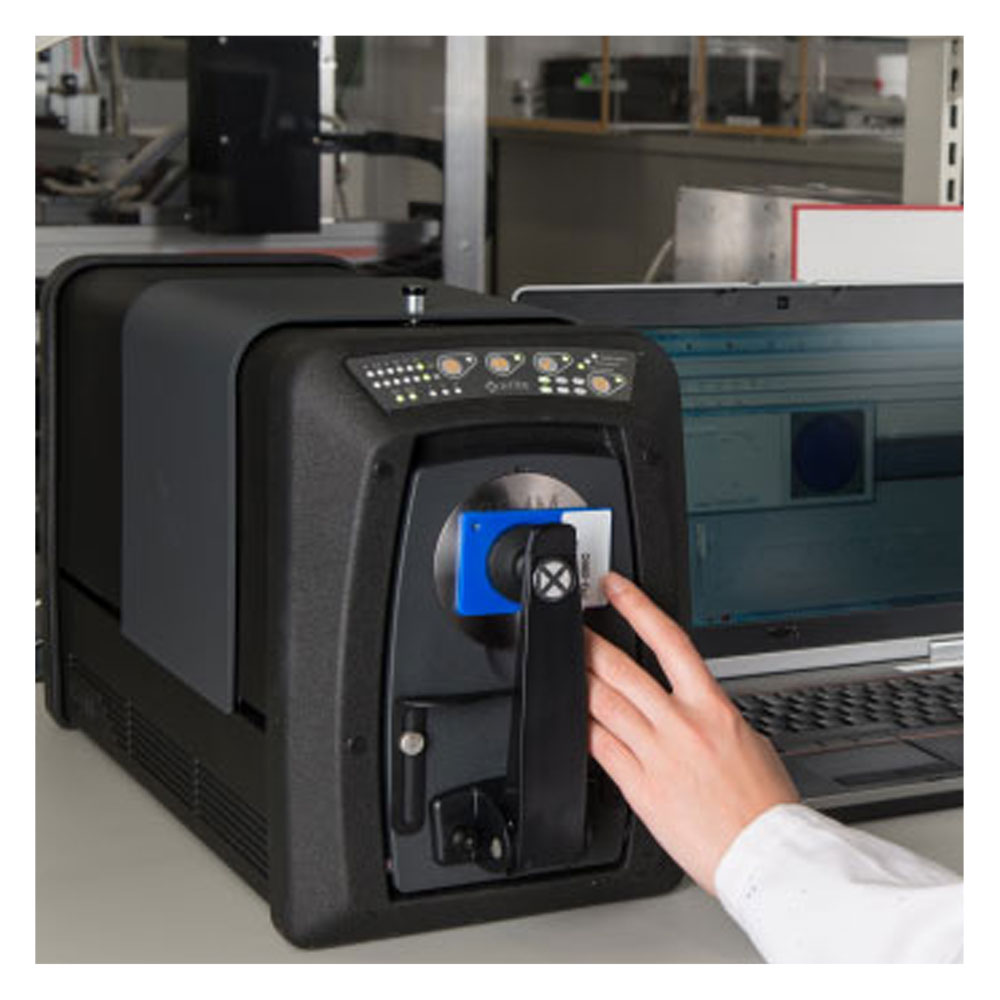

Ensure Operator Confidence and Maximize Productivity: delivers consistent configuration across all locations and eliminates the potential for error using automated, software-driven setup. The on-board digital camera with preview and active targeting guarantees accurate selection of measurement area. It can also capture images for future retrieval so any smudges, scratches or imperfections can be detected and accompany the measurement data for audit.

Maintains Performance: The X-Rite Spectrophotometer is stable and will notify the operator if calibration is required to maintain measurement accuracy.

Temperature and Humidity Sensors: Instrument humidity and temperature sensors above the drawer ensure the environment is suitable for measurements.

Total Color Solution: Pairs with X-Rite formulation, quality control, and quality assurance software to accurately formulate, verify measurement details, pinpoint issues, and optimize device performance.

Specification

• Calibration: White, Zero, UV
• Communication Interface: USB 2.0
• Dimensions (length, width, height): 56cm, 22cm, 31cm
• Embedded NetProfiler Support: Yes
• Humidity: 5% to 85%, non-condensing
• Illumination Spot Size: 25mm, 17mm, 10mm, 6mm, 3.5mm* (optional)
• Inter-Instrument Agreement: 0.06 ΔE*ab avg.
• Internal Temperature & Humidity Sensor: Yes
• Lamp Life: ≥1,000,000 measurements
• Laser Transmission Targeting: Yes
• Light Source: Pulsed Xenon, D65 calibrated
• Measurement Cycle Time: ≈ 2.5 seconds
• Measurement Geometry: d/8°
• Measurement Spot: 19mm, 10mm, 5mm, 2.5mm
• Measurement Time: ≈ 2.5 seconds
• Operating Temperature Range: 5°C to 40°C
• Optional UV Filters: 400, 420, 460
• Package Dimensions (length, width, height): 71cm, 38cm, 53cm
• Photometric Range: 0 to 200%
• Photometric Resolution: 0.001%
• Reflectance Aperture(s): 4 std / 1 optional
• Sample Preview: Door and Video
• Service Indicator: Status panel
• Shipped Weight: 25kg
• Short Term Repeatability – White: .01 ΔE*ab RMS on white ceramic
• Software Development Kit: XDS4
• Spectral Analyzer: 2D CCD array holographic grating
• Spectral Interval: 10 nm (default); 5nm; 20nm
• Spectral Range: 360-780 nm
• Spectral Reporting: 10 nm (default); 5nm; 20nm
• Status Panel: Yes
• Storage Temperature Range: -20° to 50°C
• Transform Support: Embedded
• Transmission Aperture(s): 4
• Voltage: 100 to 240 VAC / 50 to 60Hz
• Warm Up Time: None
• Warranty: 12 months
• Weight: 20.5kg

Why Choose X-Rite Spectrophotometer?

Choose the X-Rite Spectrophotometer for its superior precision, intelligent design, and unmatched consistency. With 25% tighter specifications than comparable instruments, it minimizes variability and sets the foundation for global color standards. The built-in NetProfiler, environmental sensors, and automated setup enhance productivity and eliminate operator error. Its advanced optical system, featuring pulsed Xenon illumination and multiple aperture options, supports accurate measurement of opaque, translucent, and transparent materials. The integrated camera ensures precise sample targeting and records images for traceability. Additionally, the Ci7860 pairs seamlessly with X-Rite’s color management software, enabling accurate formulation, verification, and quality assurance across multiple production sites—ensuring your products meet the strictest color consistency requirements.
