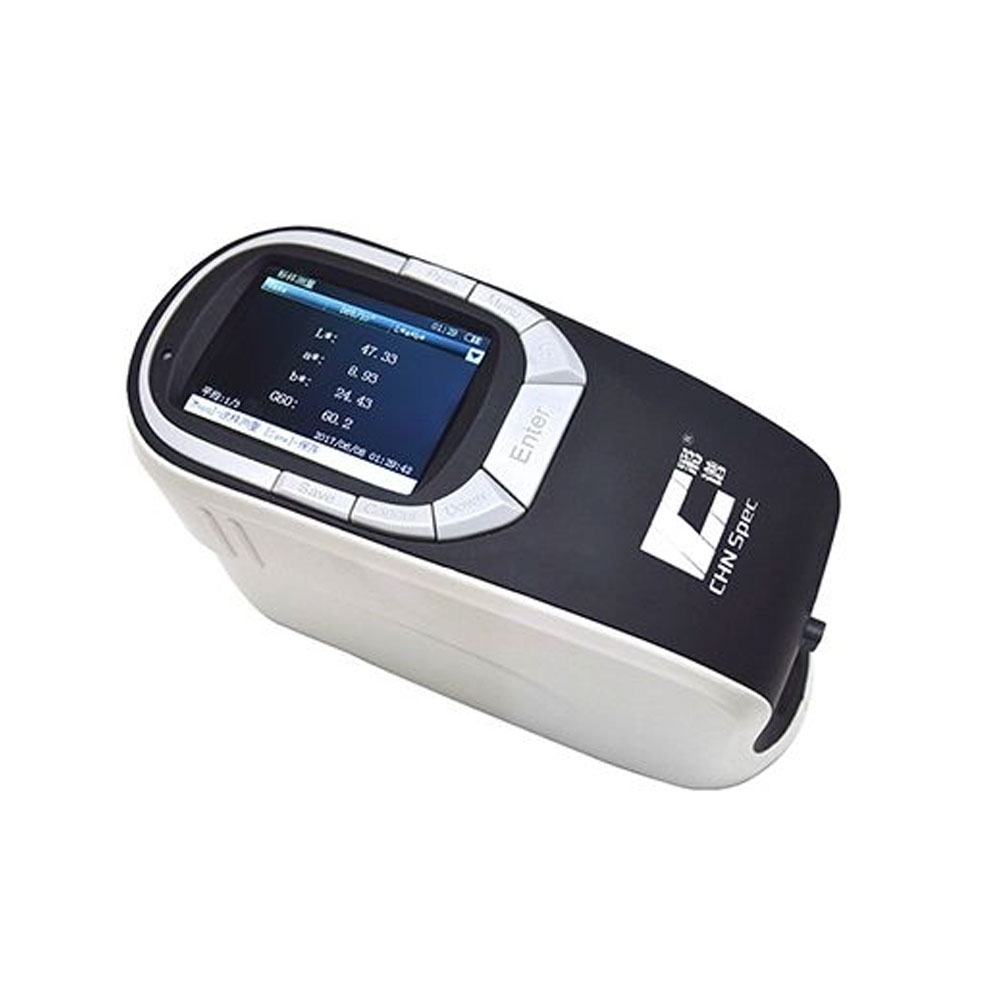

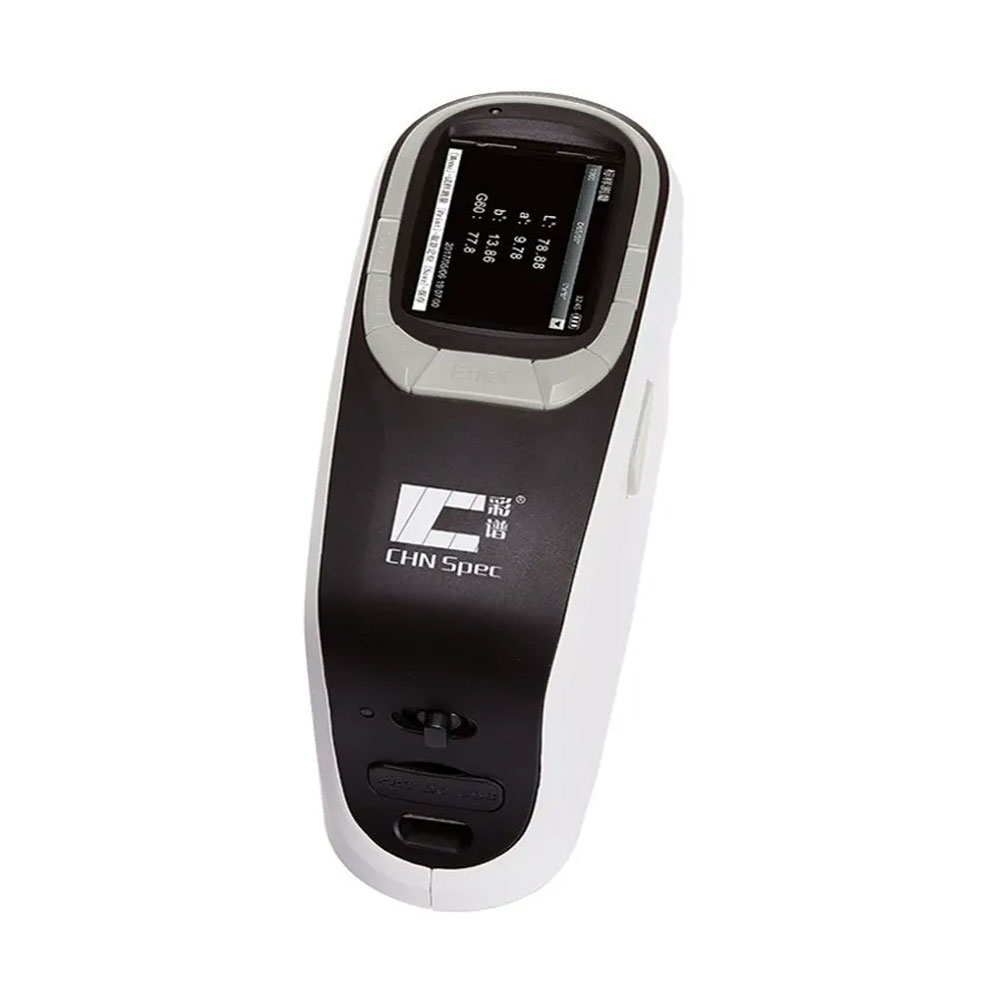

CHN Handheld Spectrophotometer
Accurate and durable handheld spectrophotometer with 45/0 geometry, LED light source, gloss measurement, and certification for precise color and gloss evaluation.
- 45/0 geometry for consistent, accurate color measurement
- Built-in 60° gloss evaluation
- USB connectivity with 20,000-sample data storage
CHN Handheld Spectrophotometer, 45/0 spectrophotometer adopt 45/0 geometry, directional dependence is eliminated, regardless of changing the sample position, tilting sample or rotating instrument can achieve high accuracy and repeatability.
- Measurement Management Software
- Every instrument comes with verification certification
- Top-port aperture makes it much simpler to measure solid, pellet, powder, pasty material and others
- 60 Degree Gloss Measurement
- Conform to CIE, ISO, ASTM, DIN standard for color and gloss measurement
- Instrument can connect with PC by USB cable
| Geometry | 45/0 (45 ring-shaped illumination, 0 degree viewing) |
| Aperture | 11mm |
| Wavelength | 400-700nm |
| Wavelength Interval | 10nm |
| Sensor | High sensitivity silicon photodiode |
| Light Source | LED |
| Repeatability | Reflectance: standard deviation within 0.08%
Chromaticity value: ΔΕ*ab 0.03 (when a white plate is measured 30 times at 5 second intervals after white calibration), Maximum 0.05 |
| Inter Instrument Agreement | 0.2 ΔE*ab (BCRA II color tiles, average test value of 12 tiles) |
| Language | Chinese and English |
| Observer | 2° / 10° |
| Illuminants | A, C, D50, D55, D65, D75, F1~F12, CWF, U30, DLF, NBF, TL83, TL84, U35 |
| Color Spaces | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance, Hunter-lab, Munsell MI, CMYK |
| Indices | WI (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313, CIE, Ganz), Metamerism index Milm, Stick color fastness, Color fastness, ISO brightness, A density, T density. M density. E density |
| Color Difference | ΔΕ*ab, ΔΕ*CΗ, ΔΕ*uv, ΔΕ*cmc(2:1), ΔΕ*cmc(1:1), ΔΕ*94, ΔΕ*00, ΔΕab (Hunter), 555 shade sort |
| Gloss Test Angle | 60° |
| Test Area | 5×10 mm |
| Test Range | 0-1000 GU |
| Repeatability | 0.2 GU(0-100GU) 0.2%(100-1000GU) |
| Reproducibility | 1.0 GU(0-100GU) 1.0% (100-1000GU) |
| Light Source Life Time | 10 years 3 million test |
| Screen | 2.8 inch color screen |
| Data Storage | 20000 samples |
| Interface | USB |
Why Choose CHN Handheld Spectrophotometer
Choose the CHN Handheld Spectrophotometer for its advanced 45/0 ring-shaped illumination that guarantees consistent, high-precision color measurements regardless of sample orientation. With built-in 60° gloss measurement, it evaluates both color and surface shine in a single step. Its LED light source and high-sensitivity silicon photodiode sensor ensure long-lasting performance and exceptional accuracy. The device supports CIE, ISO, ASTM, and DIN standards, making it ideal for laboratory and on-site quality control. Easy PC connectivity via USB, a 2.8-inch color display, and 20,000-sample storage enhance convenience and productivity. Every unit includes a calibration certificate, ensuring verified precision right out of the box.
