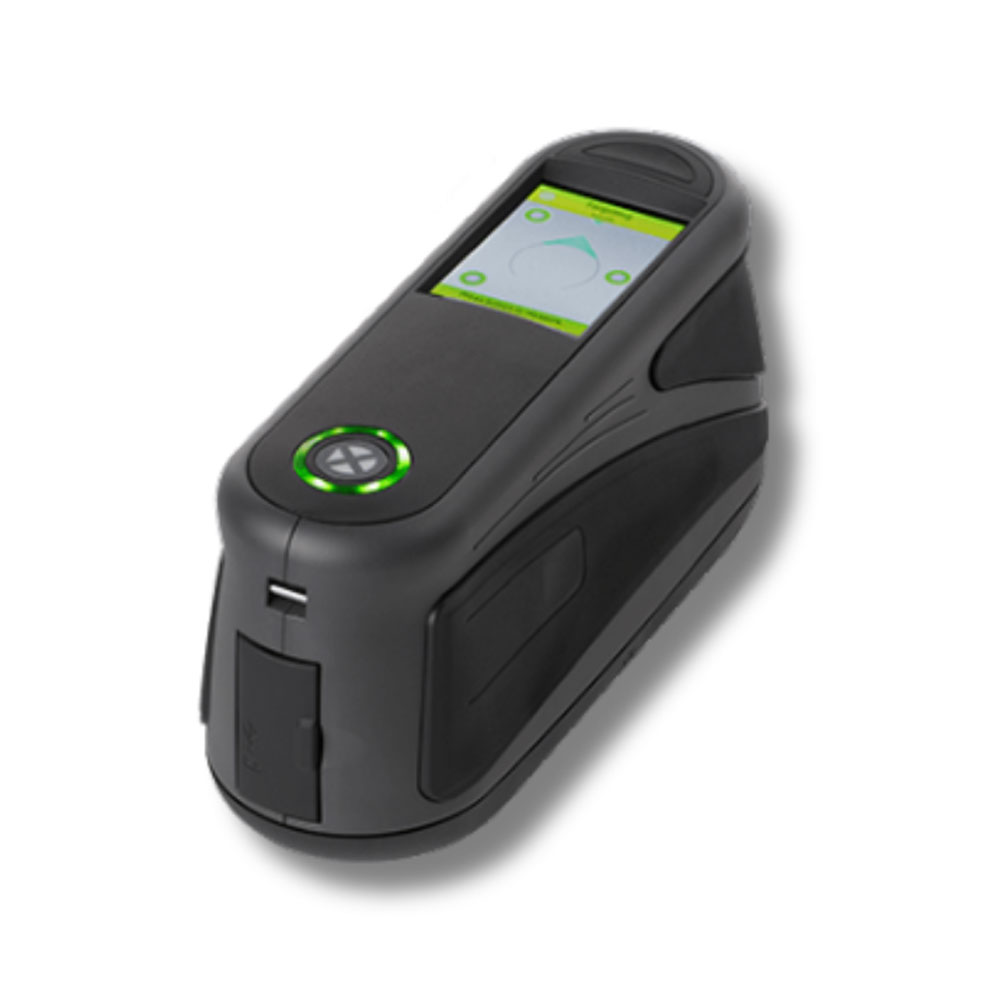

Portable Multi-Angle Spectrophotometer

The Portable Multi-Angle Spectrophotometer delivers unmatched precision and consistency in measuring color, sparkle, and coarseness across various effect finishes. Designed with six angles of measurement and advanced polychromatic LED illumination, it ensures readings that closely match the way the human eye perceives color. With industry-leading repeatability and reproducibility, this instrument minimizes waste and rework across production lines. Its intuitive 3.5-inch touchscreen, automatic internal calibration, and compatibility with legacy X-Rite devices make it an ideal choice for industries such as automotive, plastics, coatings, and cosmetics requiring superior color harmony and process control.

Features

• Precise readings of colored sparkle and coarseness make repeatability and reproducibility more than twice as good as that of other devices on the market, minimizing waste and re-work across the production process
• Ability to characterize effect finishes across a variety of applications, from automotive paint to plastics and cosmetics through 6 angles of measurement
• Results you expect — measurements that more closely approximate the way the eye perceives color — streamline approval process

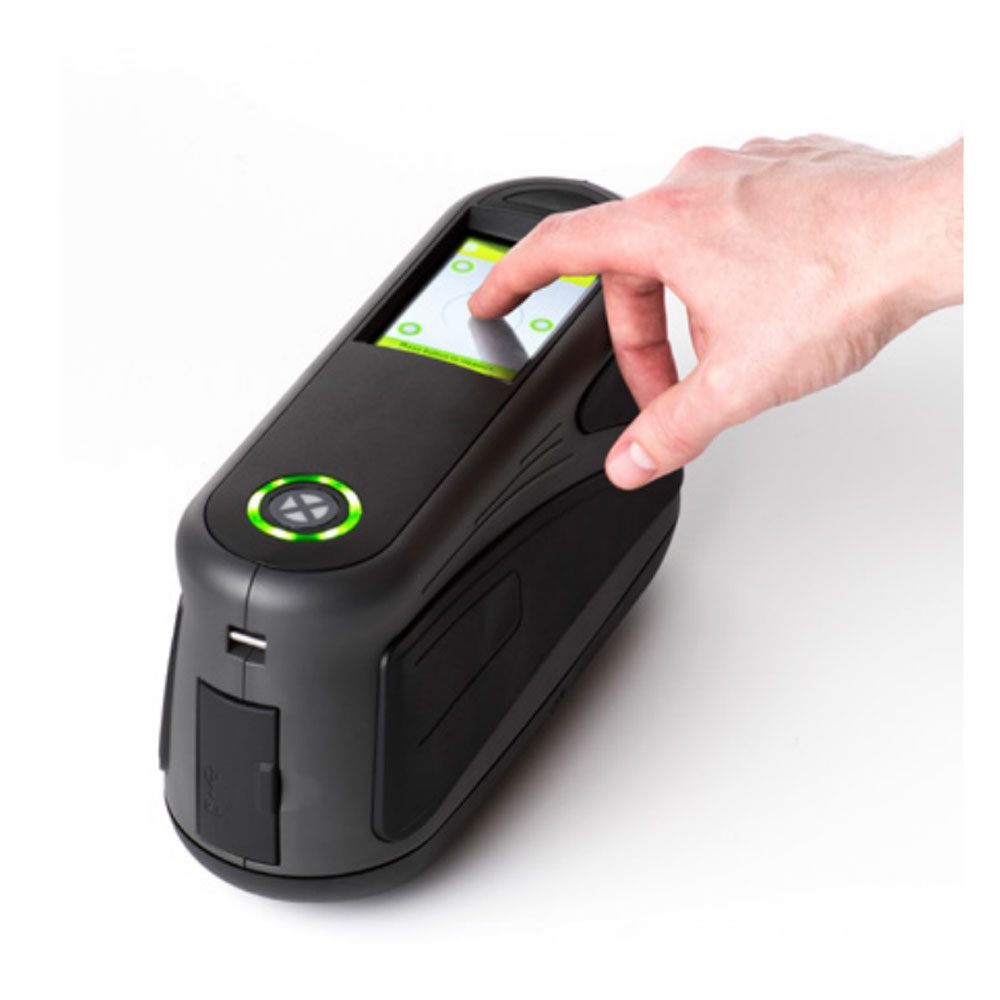

• Intuitive interface reduces the learning curve and increases measurement efficiency
• Automatic internal calibration reduces the risk of inaccurate measurements due to insufficient device calibration, and limits the need for external calibration to once per month
• Backwards compatibility with X-Rite MA68, MA94, MA96, and MA98 ensures a smooth transition with no loss of legacy data
• The ability to set and digitally communicate global tolerances and measurement procedures for color, sparkle, and coarseness across the supply chain improves ongoing conformance
• Real-time monitoring of color harmony across the supply chain enables quick adjustments to improve operating efficiencies
• New visual tools enable quick analysis and resolution for noncompliant product

Specification

Battery: Lithium ion

Battery Life: Avg. 800 measurements

Calibration: internal white/black calibration; external white

Coarseness Repeatability: 0.09% (mean error on median)

Coarseness Reproducibility: 1.4% (mean error on median)

Color Differences: L*a*b*, L*C*h°, ΔE*; ΔECMC; ΔE DIN6175, ΔE2000

Communication Interface: USB 2.0

Dimensions (length, width, height):  266mm x 95mm x 128mm (26.6 cm x 9.5 cm x 12.8 cm) (10.4 in x 3.7 in x 5.0 in)

Humidity: 85% relative humidity max (non-condensing)

Illuminants: A, C, D50, D65, F2, F7, F11 & F1

Illumination Colors: Polychromatic white LED with blue enhancement

Illumination Spot Size: 9x12mm (rectangular)

Industry Standards:  ASTM D 2244, E 308, E 1164, E 2194; DIN  6175-1, 6175-2; SAE J1545.ISO 11664-4

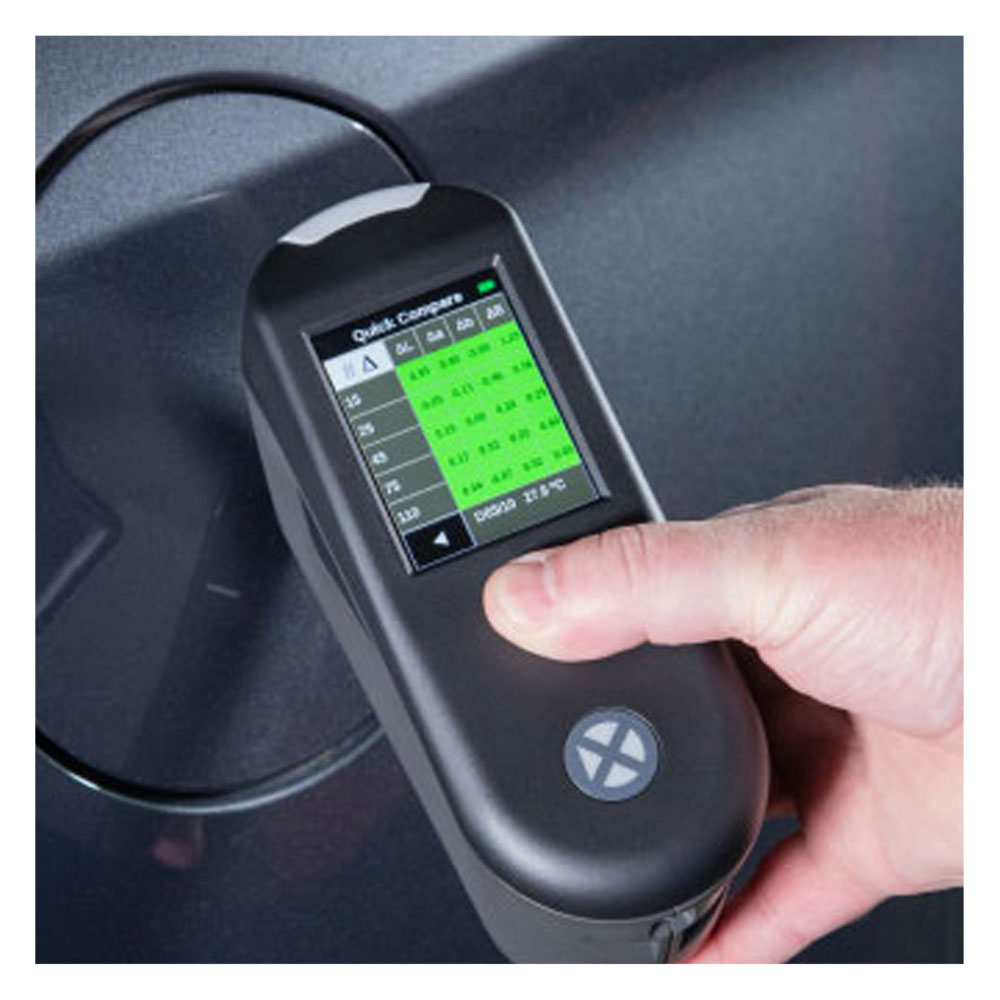

Instrument Display: 3.5 inch (8.9cm) color touch screen display

Inter-Instrument Agreement: 0.18 ∆E2000 avg. on BCRA

Lamp Life: 10 years lamp life

Languages Supported: DE, FR, EN, PT, ES, KOR, JA, Chinese, IT

Measurement Cycle Time: 5.5 seconds, Measurement Geometry: 6 measurement angles (6 illumination sources, 1 pick-up), Measurement Spot: 9x12mm

Observers: Colorimetric Standard Observers 2° & 10°

Operating Temperature Range: 50F to 104F (10C to 40C)

Short Term Repeatability – White: 0.02 ΔE*

Sparkle Measurement: Sparkle Grade, Color Sparkle Parameter, Illumination 15as-15, 15as15, 15as-30, 15as-45, 15as45, 15as80, 15d Diffuse Coarseness

Sparkle Repeatability: 0.12% (mean error on median), Sparkle Reproducibility: 1.9 % (mean error on median)

Spectral Interval: 10 nm

Spectral Range: 400-700 nm

Storage Temperature Range: -4F to 122F (-20C to 50C)

Voltage: 7.4vDC at 2400mAh

Why Choose This Spectrophotometer?

Choose the Portable Multi-Angle Spectrophotometer for its superior accuracy, speed, and stability in effect finish analysis. Offering six-angle measurement geometry, it captures true color variations and sparkle under multiple viewing conditions. Its advanced optical system ensures repeatability twice as high as competing devices, while automatic internal calibration reduces the need for frequent external adjustments. The intuitive touchscreen interface and real-time data connectivity streamline the workflow, enhancing productivity and reducing errors. Backward compatibility with X-Rite MA series ensures seamless data transition and global tolerance communication. Built for demanding environments, this device guarantees long-lasting reliability with a 10-year lamp life and robust lithium-ion battery for extended operation.
