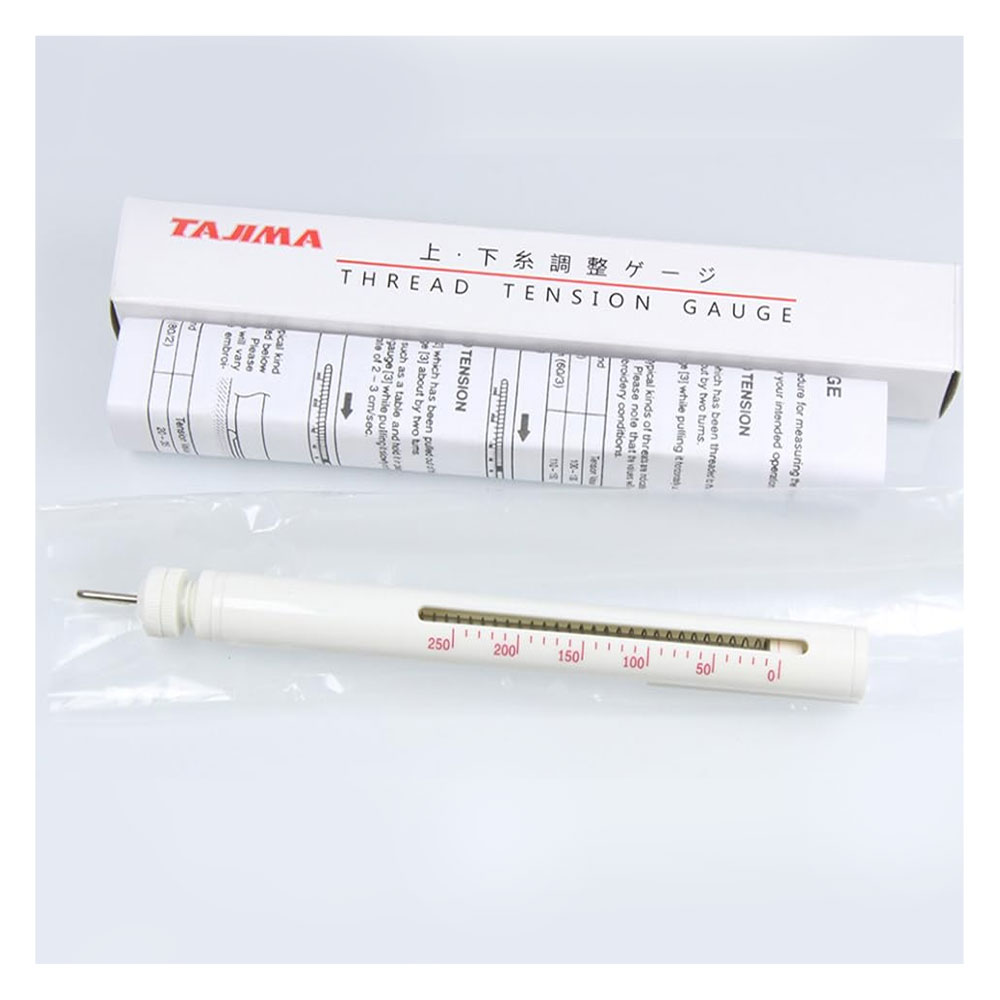

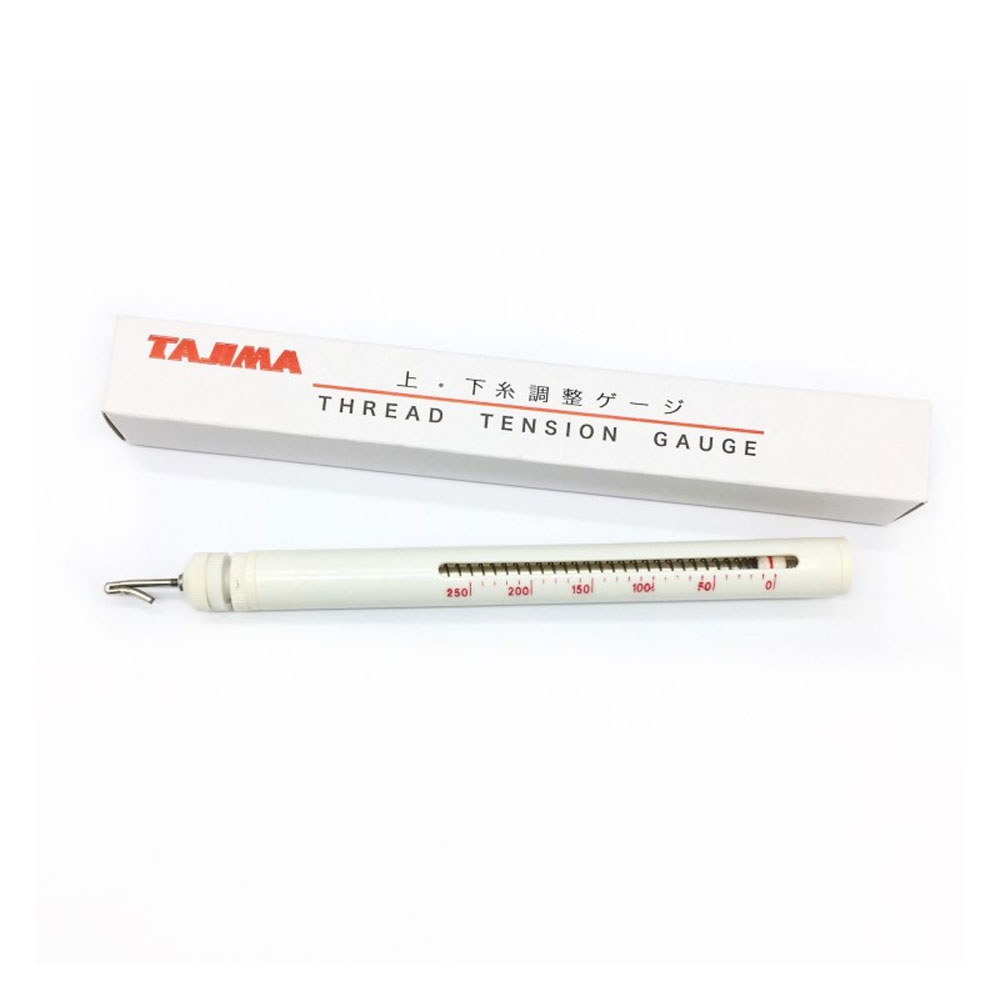

Thread Tension Gauge

Achieve perfect embroidery with the Thread Tension Gauge. Easily balance bobbin and top thread tensions for smooth, consistent, and professional stitch quality.

Accurately measures and balances thread tension in grams
Eliminates looping, thread breaks, and visible bobbin thread
Ensures smooth, professional embroidery and stitching results

Description

Using Thread Tension Gauge makes it easy to adjust both bobbin and upper tensions. It’s quick, easy and will help you eliminate unsightly bobbin thread showing on top, looping top stitches and thread breaks. Your embroidery will look its best with consistent, balanced thread tensions. Here’s how to use a top embroidery thread tension gauge to take the tension out of setting tensions!

Instructions for Use:

Pull approximately 6 inches of thread through the needle and presser foot.
Wrap the thread around the gauge hook (sometimes it’s necessary to wrap it
several times so it won’t slip).
Steadily pull the gauge towards you with the window of the barrel facing up.
As you pull, take note of the reading. These represent tension readings in grams. Polyester threads require higher tensions than Rayon. Polyester tensions 120 to 150 grams. Rayon tensions 100 to 120 grams.
Adjust your machine main tension knob until you get the desired reading.

Once you have adjusted your thread tensions, it’s always a good idea to run tests.

First run the fill stitch test pattern.
If you experience any top stitch looping, slowly tighten the main upper tension knob until this looping goes away (looping can also occur if your bobbin tension is too tight).
Proper tensions for satin stitches should reveal 1/3 bobbin and 2/3 top thread color on the underside of the embroidery.

Why Choose Thread Tension Gauge?

Choose the Thread Tension Gauge for superior control and precision in embroidery or sewing. It simplifies the adjustment process for both bobbin and top threads, ensuring smooth, balanced stitches. The device helps prevent common stitching problems such as loose loops, thread breaks, or uneven tension. Whether you’re working with polyester or rayon threads, the clear gram-based readings make tension calibration quick and accurate. With this tool, you can easily maintain consistent stitch quality across different projects and fabrics. Perfect for professionals and hobbyists alike, this compact, easy-to-use gauge enhances your workflow efficiency and ensures every embroidery design looks flawless from top to bottom.
