Universal Tension Meter ZE Series

Model ZEF

Available Models

MODEL	Tension Ranges cN	Measuring Head Width* mm	SCHMIDT Calibration Material**

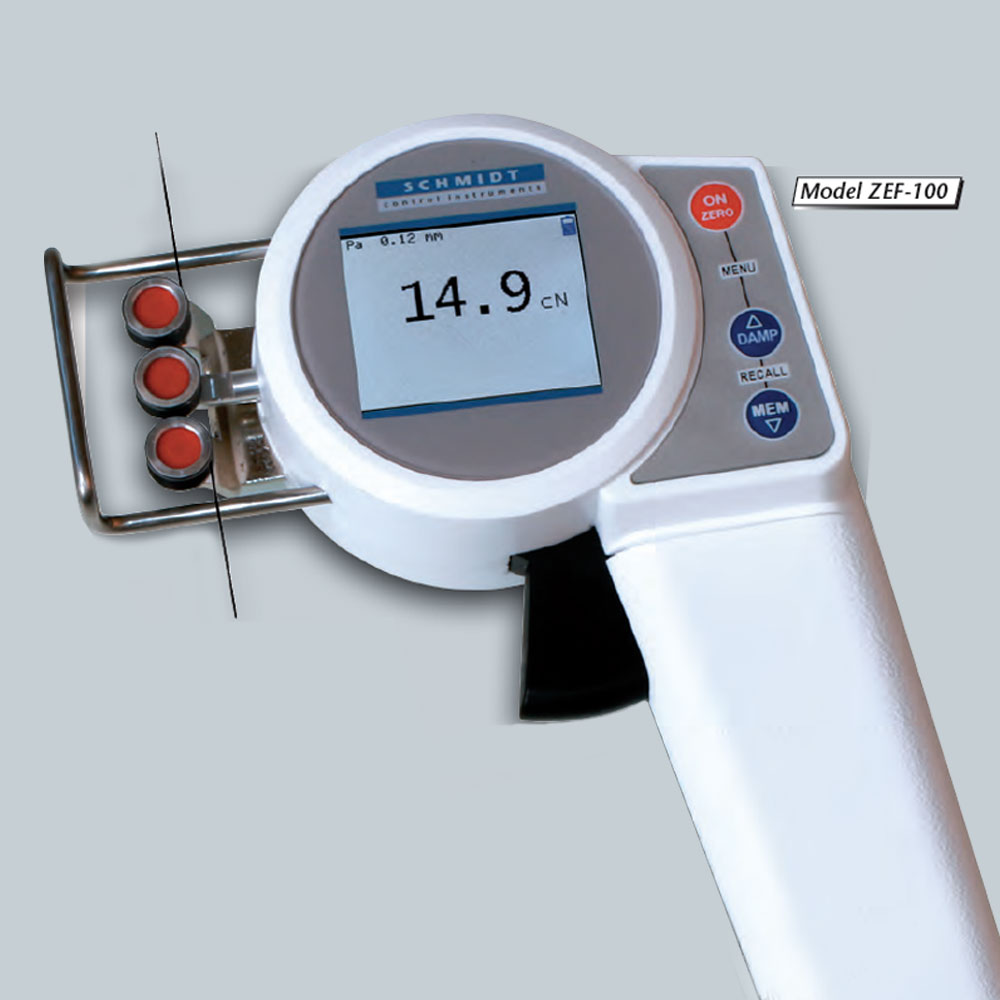

ZEF-50	0.5 – 50.0	43	PA: 0.12 mm Ø
ZEF-100	0.5 – 100.0	43	PA: 0.12 mm Ø
ZEF-200	1 – 200.0	43	PA: 0.12 mm Ø

Available Models

MODEL	Tension Ranges cN	Measuring Head Width* mm	SCHMIDT Calibration Material**

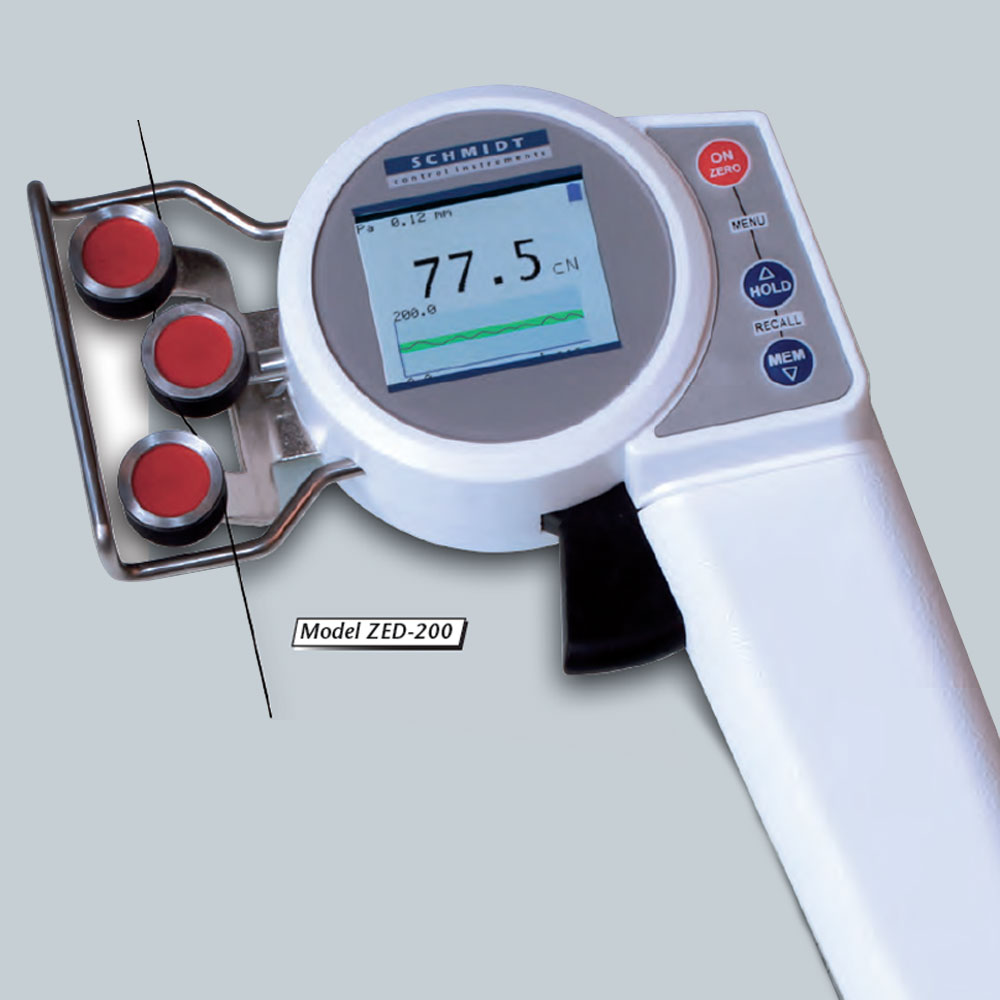

ZED-200	1 – 200.0	63	PA: 0.20 mm Ø
*ZED-500*	1 – 500	63	PA: 0.20 mm Ø

Calibration:	According to SCHMIDT factory procedure
Accuracy:	± 1 % FS* and ± 1 Digit
typical ± 0.5 % FS*
Units	cN, g, N or lb, switchable
Overrange (approx.):	10 % FS*, without accuracy guarantee
Overload protection:	200 % FS*
Measuring principle:	Strain gauge bridge
Measuring roller deflection:	0.5 mm max.
Damping:	Adjustable electronic damping
(Moving averaging)
Sampling rate internal:	Approx. 1 kHz
Sampling rate:	250 Hz (250 readings / sec)
Display update time:	2 times / sec
Display:	Colour-TFT 128 x 160
3 display modes:	Numeric
Numeric + bargraph
Numeric + graph (time-tension)
Memory:	Last, AVG, MIN, MAX, STD
Temperature range:	10 – 45 ºC
Air humidity:	85 % RH, max.
Power supply:	LiPo accumulator (about
25 h continuous use, charging
time approx. 3 ½ h) and AC Adapter
with adapters (EU/USA/UK)
Housing material:	Plastic (POM)
Housing dimensions:	157 x 130 x 33 mm (L x W x H)
Weight, net (gross):	Approx. 200 g (600 g)
