Description
Electronic Tension Meter KXE Series.
Model KXE
- Portable measuring head with 100 mm roller width to measure yarn groups of 50 mm width
- The sensor can easily be engaged or disengaged also while the machine is running
- Measurements can be made over the total width of the loom
- 4 different memory modes can be selected by the operator
- Storage of AVG, LAST, MIN, MAX, PEAK-MIN and PEAK-MAX tension values during an operator set measuring period
- Adjustable electronic damping for better reading when tension is constantly changing
- Output signal: digital USB
- Delivery includes: tension meter, USB cable, and software »Tension Inspect 3«
Available Model
| Model | Tension Ranges daN | SCHMIDT Calibration Material |
| KXE-20 K | 0.50 – 20.00 | fabric tape |
Specification
- Measuring Rollers: 2 x 22 mm ball bearing mounted rollers total 50 mm
- Width of outer rollers: 100 mm, ball bearing mounted
- Frame height adjustment: 24 mm
- Housing material: Anodized aluminium
- Dimensions frame: 108 x 138 mm
- Weight, net: Approx. 1000 g
Electronic Tension Meter KXE Series
Reviews (0)
Shipping & Delivery
Related products
Yarn Length Meter
Yarn Length Meter YS-20 offers contact and non-contact yarn measurement with digital display, memory function, and durable design for reliable textile testing.
- Measures yarn length, speed, and revolutions accurately
- Dual-mode contact and non-contact measurement system
- Built-in memory for min, max, and last readings
Automatic Single Yarn Strength Tester
High-efficiency Automatic Single Yarn Strength Tester with pneumatic control, real-time F-E curve, and accurate elongation and breaking force measurement for textile labs.
- Tests yarn breaking force, elongation rate, and intensity per GB/T 3916-1997
- Pneumatic holding system prevents yarn damage during testing
- Real-time F-E curve display with automatic data processing

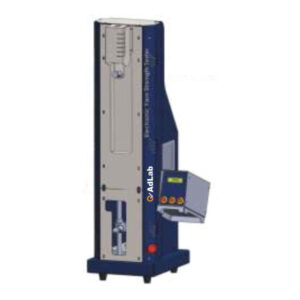

Electronic Lea Strength CSP Tester
